This article provides specifcations for Elo P/N: E336671, Delta ADP-60KD BS, 12V/60W Power Adapter.
1. Electrical
1.1 Input Characteristics
Nominal Voltage: 100–240 Vac
Input Voltage Range: 90–264 Vac
Rated Frequency: 50 Hz or 60 Hz, single phase
Frequency Range: 47–63 Hz
Input Current: 1.7A Max at 90 Vac
Inrush Current (Cold Start): Limited to 22% margin of input fuse I²t rating
Efficiency (Warm Up):
• 84% minimum at nominal input voltage, max load (measured at end of DC cable)
• Active mode efficiency: 88% average efficiency at 25%, 50%, 75%, and 100% load (115 Vac & 230 Vac after 30 min warm-up)
Small Load Power Consumption: Measured at 115 Vac/60 Hz and 230 Vac/50 Hz
1.2 Output Characteristics
Rated Voltage: 12V
Voltage Range: 11.4V–12.6V at 0–5A load
Current: 0–5A within specified range
Ripple & Noise: ≤380 mV peak-to-peak
• Measured with 20 MHz oscilloscope bandwidth
• 0.1 µF HF capacitor + 10 µF electrolytic capacitor across output terminals
• At end of DC cable
Turn-On Delay: <5 seconds at 90 Vac input
Hold-Up Time: ≥10 ms at 115 Vac and 80% max load
Rise Time: <100 ms (10%–90% output voltage) at nominal line & max load
Load Transient Response: Within regulation for 0–50% and 50–100% load steps at 1.0A/µs, 1Hz–5kHz
Overshoot: <14V
Protections:
• Over Voltage: Latch off >18V, reset by AC cycle
• Over Current: Latch off <8A, reset by AC cycle
• Short Circuit: Latch off, reset by AC cycle
• Over Temperature: Shutdown ≥95°C, reset by AC cycle
Capacitance Load: Can withstand 1000 µF capacitance without shutdown
2. Environmental
2.1 Temperature
Operating: 10°C to +40°C (full load)
Storage/Shipping: -20°C to +85°C
2.2 Humidity
Operating: 8%–95% RH, non-condensing
Storage/Shipping: 5%–95% RH, non-condensing
2.3 Immunity
Lightning Surge (IEC-61000-4-5 Level 3):
• L-N: 4 kV / 1.2*50µs, 5 times – No damage
• L-FG: 6 kV / 1.2*50µs, 5 times – No damage
EFT (IEC-61000-4-4 / EN 61000-4-4): Level 2 (1 kV) – No damage
2.4 Electrostatic Discharge (ESD)
±12 kV air discharge – No damage
±8 kV contact discharge – No damage
2.5 Safety & Electrical
Dielectric Withstand: 3000 Vdc for 1s (10 mA cut-off)
Leakage Current: <100 µA at 250 Vac/50 Hz
Insulation Resistance: ≥20 MΩ at 500 Vdc / 10 mA for 1 min
2.6 Compliance & Lifetime
EMI Compliance: CISPR 22 Class B, VCCI Class B, FCC
MTBF: 100,000 hours (25°C, max load, normal voltage)
Case Temperature Rise: ≤45°C at 60W, 25°C ambient, 100 Vac/60 Hz, 5A load
Capacitor Life: ≥30,000 hours at full load, 25°C, 100 Vac/60 Hz & 240 Vac/50 Hz
3. Mechanical
Dimensions: 120.0 × 52.5 × 32.5 mm
Color: Black
AC Inlet Type: C14 socket
DC Connector: OD = 5.5 mm, ID = 2.5 mm, Length = 11.0 mm

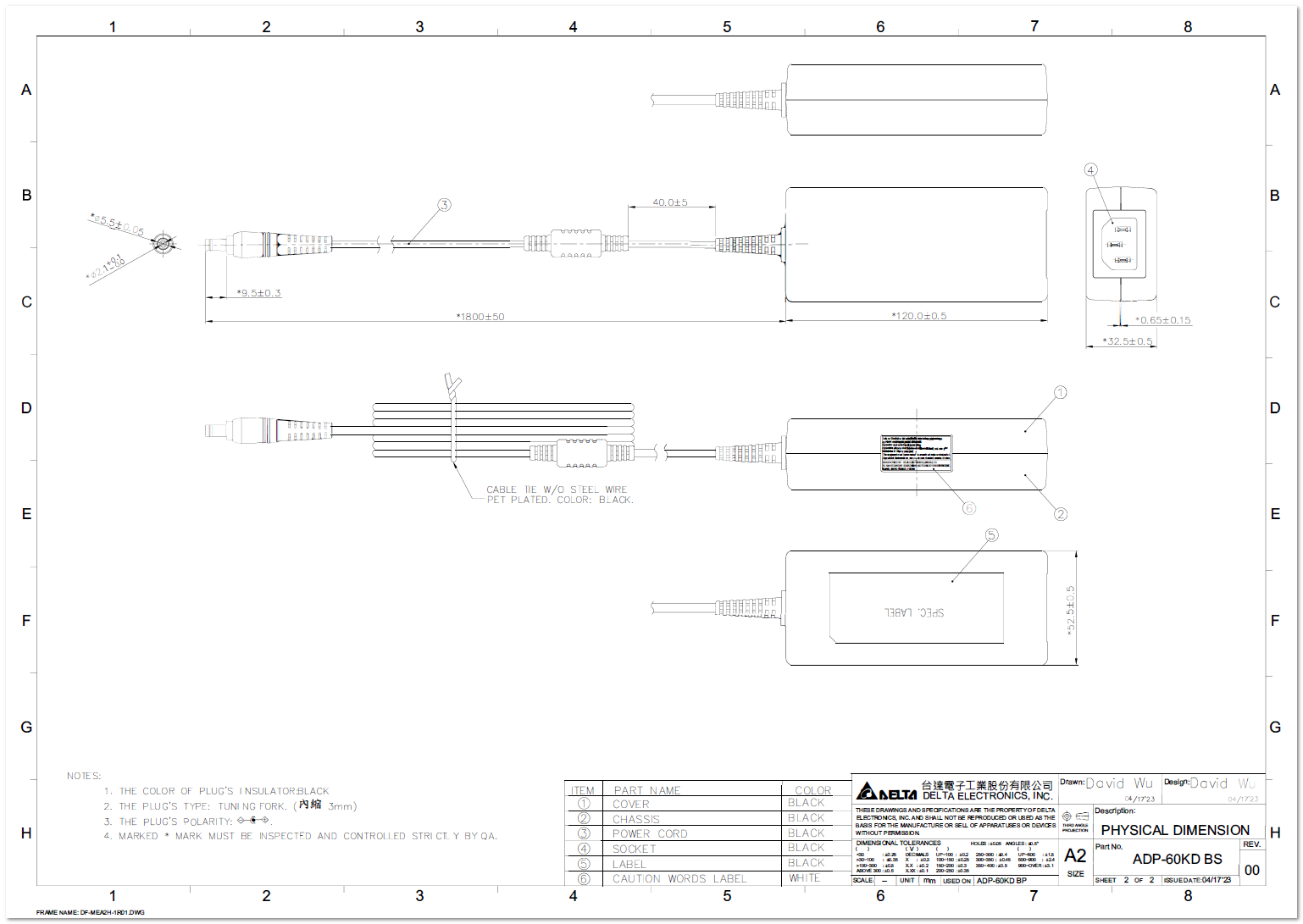

Drawing:
