How can I replace the HDD on my ECMG2 computer module?
Follow below steps to remove or replace the Hard Drive (HDD/SSD) on the Elo ECMG2 or ECMG3 Computer Modules.

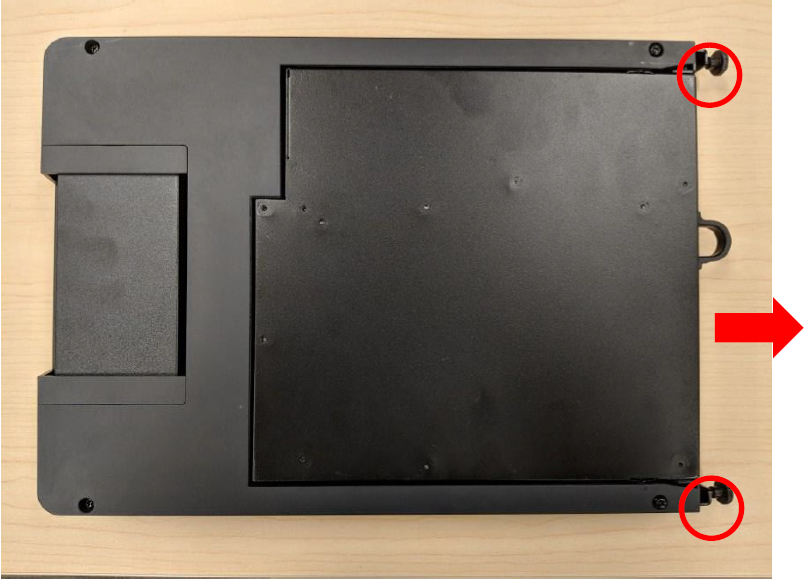

1. Unscrew the thumbscrews and remove the ECM from the Power Module.

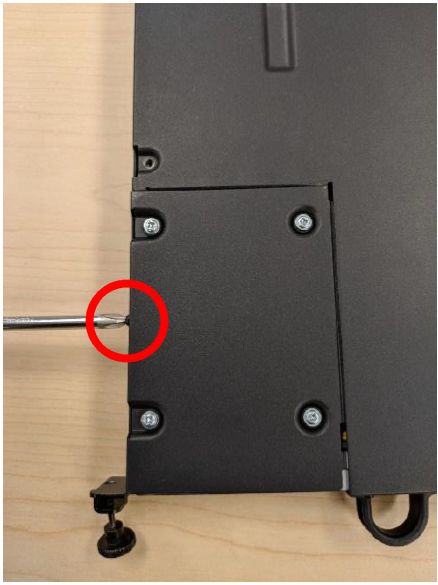

2. Unscrew the Hard Drive door from the ECM.

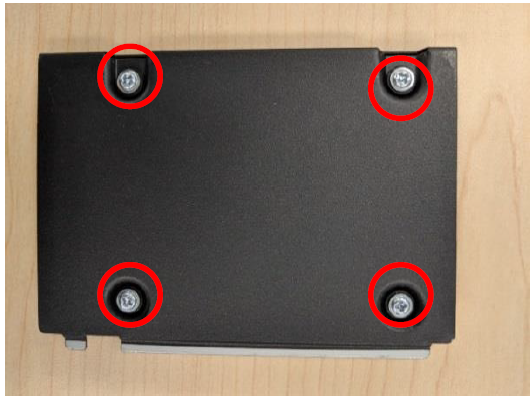

3. Unscrew the 4 screws holding the HDD/SSD in place.

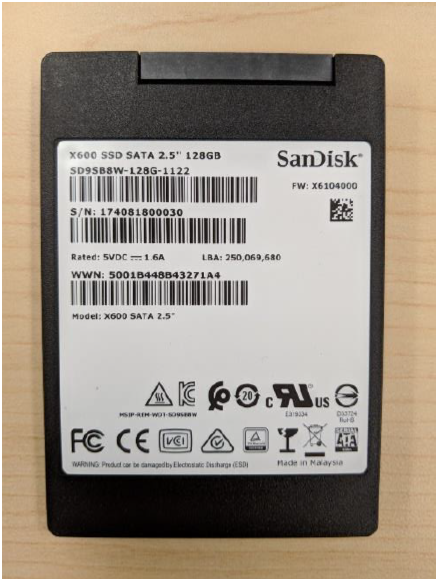

4. Install the new HDD/SSD into the ECM.



5. Reassemble ECM in reverse order of above.


KB#000003213
