This article describes how to replace or add RAM memory module to the ECMG4 computer
1. Place ECMG4 face down on a protective surface.

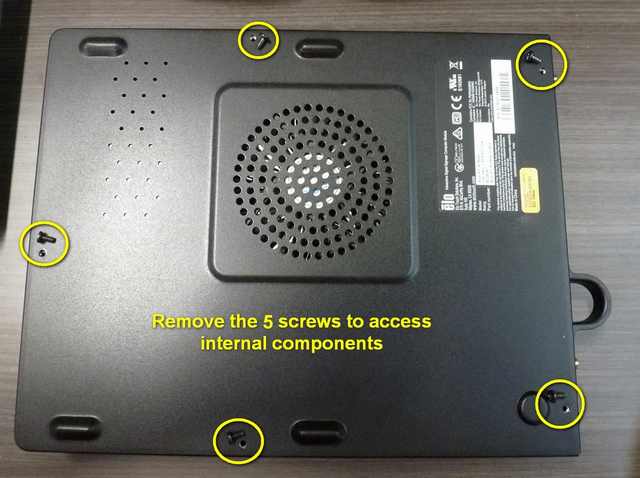

2. Remove the 5 screws shown below and lift off cover.

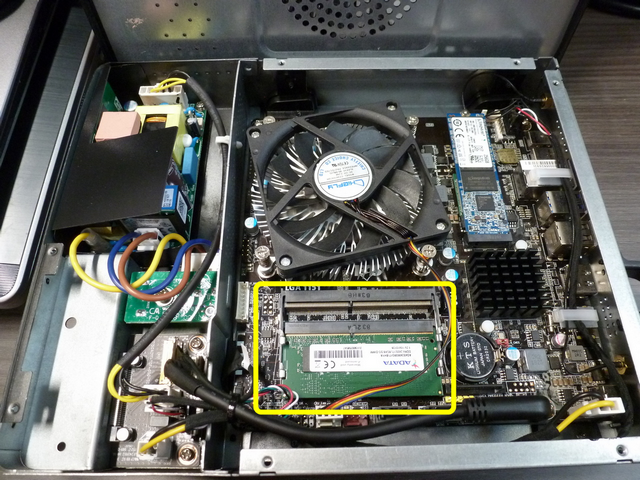

3. The RAM is located beside the CMOS battery.

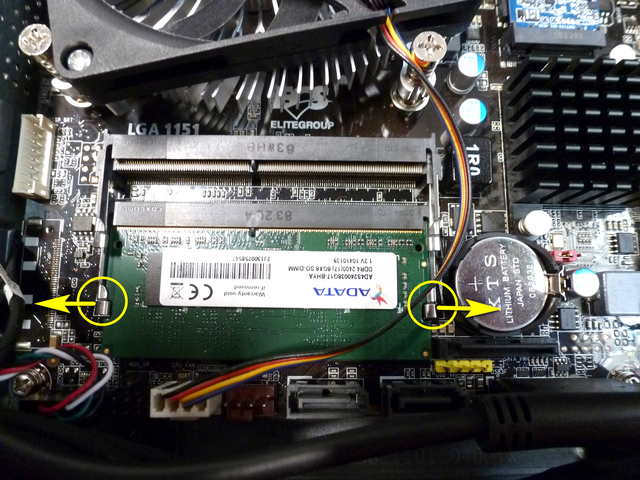

4. To remove the RAM module, push the two tabs outward. Remove RAM module from connection slot.
5. Replace with compatible RAM module.
- Dual-channel DDR4 memory architecture
- 2 x 260-pin DDR4 SO-DIMM sockets support up to 32 GB (16Gb per slot)
- Supports DDR4 2400MHz/2666MHz SDRAM
Replacement Memory modules – DDR4 SO-DIMM, 8GB, 2400MHz/2666MHz*
- E541236 MEMORY,DDR4,SODIMM,8G,2400MHZ,ADATA
- E541423 MEMORY,DDR4,SODIMM,8G,2400MHZ,SMART
- E409695 MEMORY,DDR4,SODIMM,8G,2400MHZ,KINGSTON
- E952813 MEMORY,DDR4,SODIMM,8G,2666MHZ,KINGSTON
- E951857 MEMORY,DDR4,SODIMM,8G,2666MHZ,ADATA
*Maximum memory using 2 slots. Expandable to 64 GB maximum on 2 slots. DDR4-2133/2400 @ 1.2V
6. Reassemble ECMG4 in reverse steps of above.
