Where can I find P/N: E050243 Power Supply Kit Dimensional Drawing and Power Specifications?

This article provides more information on P/N: E050243 Power Supply Kit Dimensional Drawing and Power Specifications

E050243 Power Supply Kit Dimensional Drawing and Power Specifications shown below. This kit contains power adapter P/N: E903320

Power Specifications

  • Output: 48W (full load)
  • Active Input Power: 55.39W @ 230Vac
  • Total Input Current: 0.55894 Arms @ 230Vac
  • 50Hz Current: 0.24212 Arms @ 230Vac

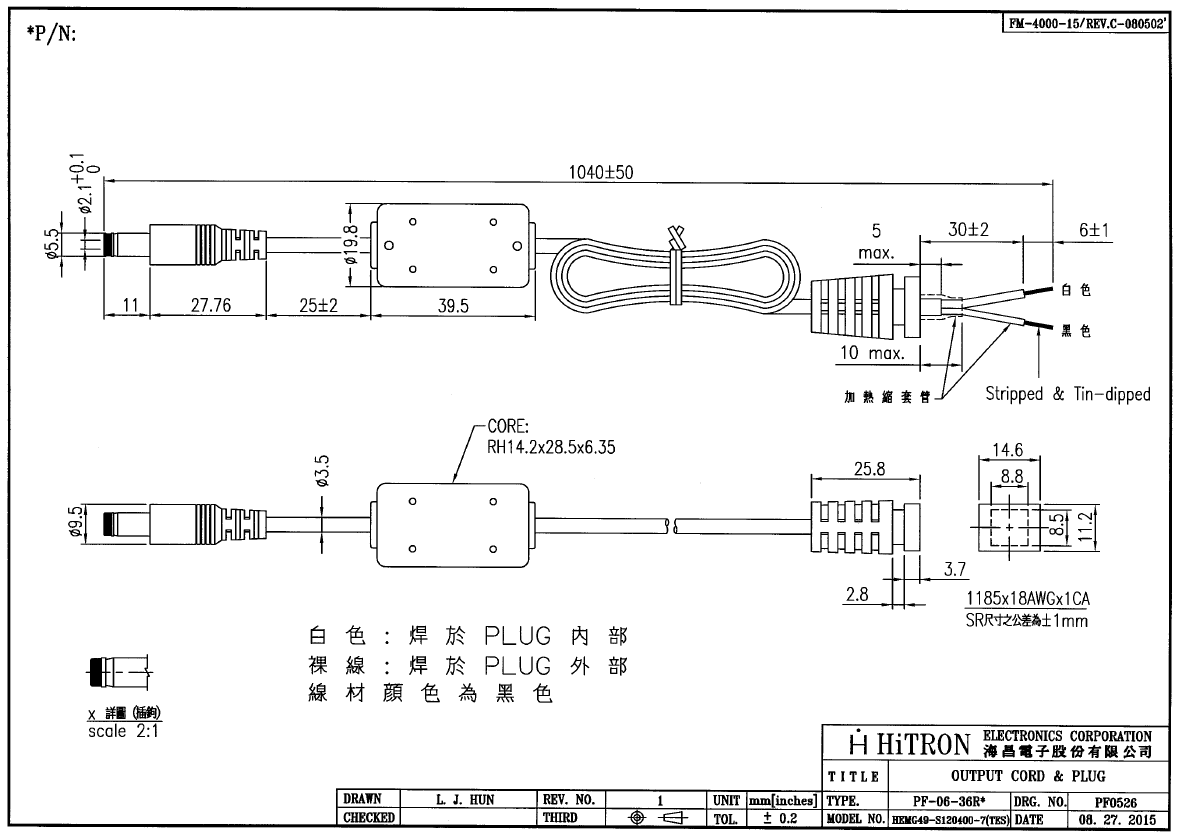

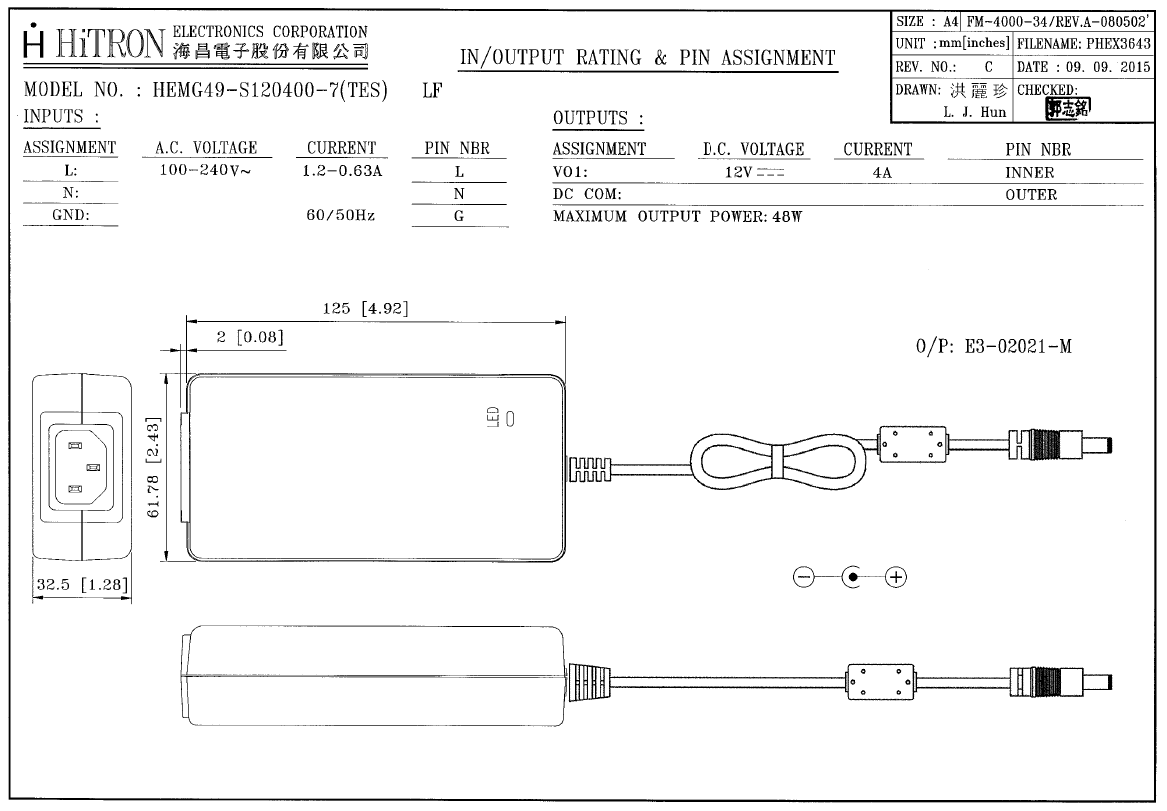

Drawings
