Welcome to Elo Support

Drivers, Product Info, Technical Answers and more.

Where can I find P/N: E323104 Power Supply Drawing and Power Specifications?

This article provides more information on P/N: E323104 Power Supply Drawing and Power Specifications

E323104 Power Supply Drawing and Power Specifications are shown below.

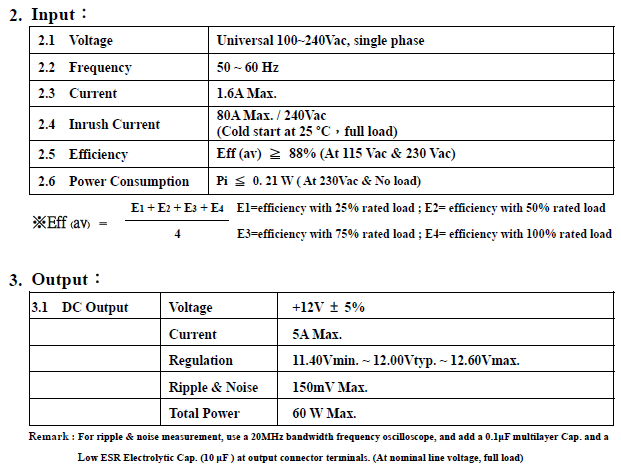

Power Specifications

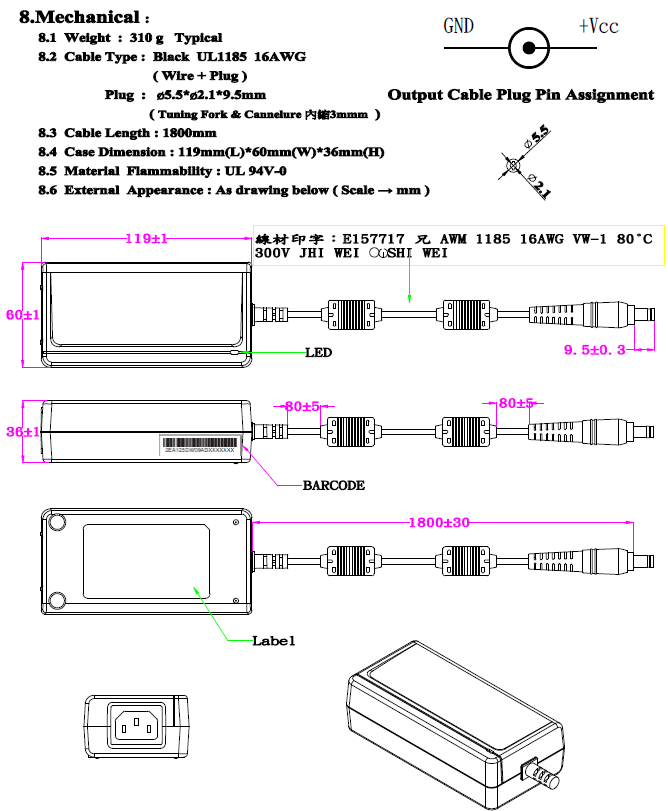

Drawings


Please report any broken links by emailing elo.support@zebra.com and include a link to the knowledge article
