This article provides information about P/N: E644767 - Elo Edge Connect Status Light Kit & Documentation

See below for information and documentation for P/N: E644767 - Elo Edge Connect Status Light Kit. This is Elo's current (2nd Generation) Status Light Kit.

Kit Contents

• 1 - Quick Install Guide (QIG) - E758615
• 1 - Status Light Kit - E644767
• 2 - Mounting Screws - E152442
• 2 - Mylar Screw Covers - E731133
• 1 - China RoHS Manual - E864469

Product Compatibility

• I-Series 4.0 Standard & Value Models
• Windows I-Series 2.0
• IDS 02/03 Series
• IDS 53 Series
• 02-Series Touchscreen Monitors
• 03-Series Touchscreen Monitors

Supported Operating Systems

• Android 7.x
• Android 8.x
• Android 10.x
• Ubuntu 18.04 LTS
• CentOS 7.7
• SUSE Linux Enterprise Desktop 15 SP2
• Win10 64bit
• Win7 32bit
• Win7 64bit
• WIN10 2019 LTSC 64BIT Rev.C
• Win10 SAC 64BIT COLLABORATION Rev.B2

Software & SDKs

• Status Light Kit Windows SDK and User's Manual
• Status Light Kit Linux SDK
• Status Light Kit Android SDK

Environmental Specifications

• Temperature
  • Operating Temperature: 0-40C
  • Storage Temperature: -20-60C
• Humidity
  • Operating Humidity: 20%-80%
  • Storage Humidity: 5%-95%

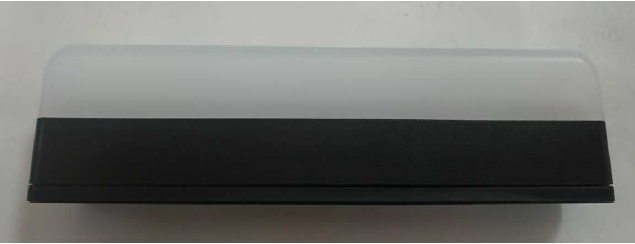

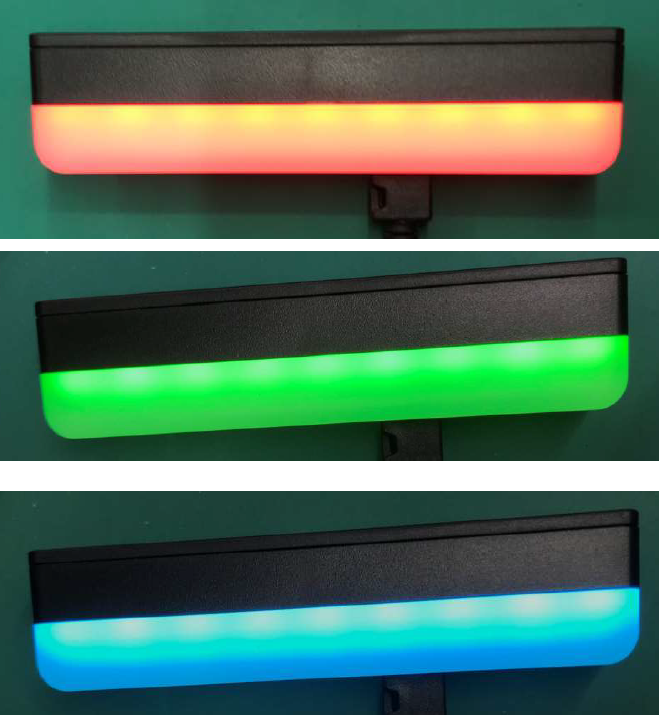

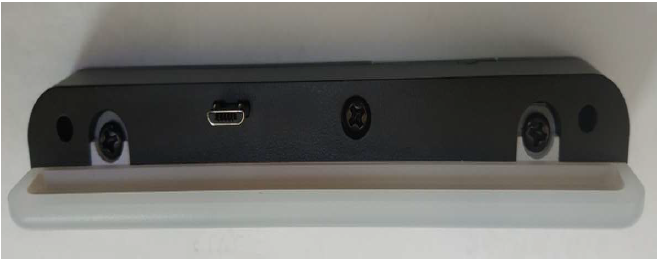

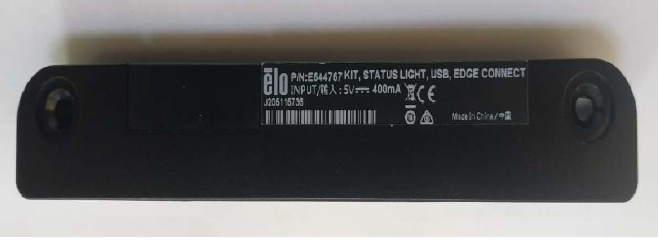

Photos






Dimensional Drawing

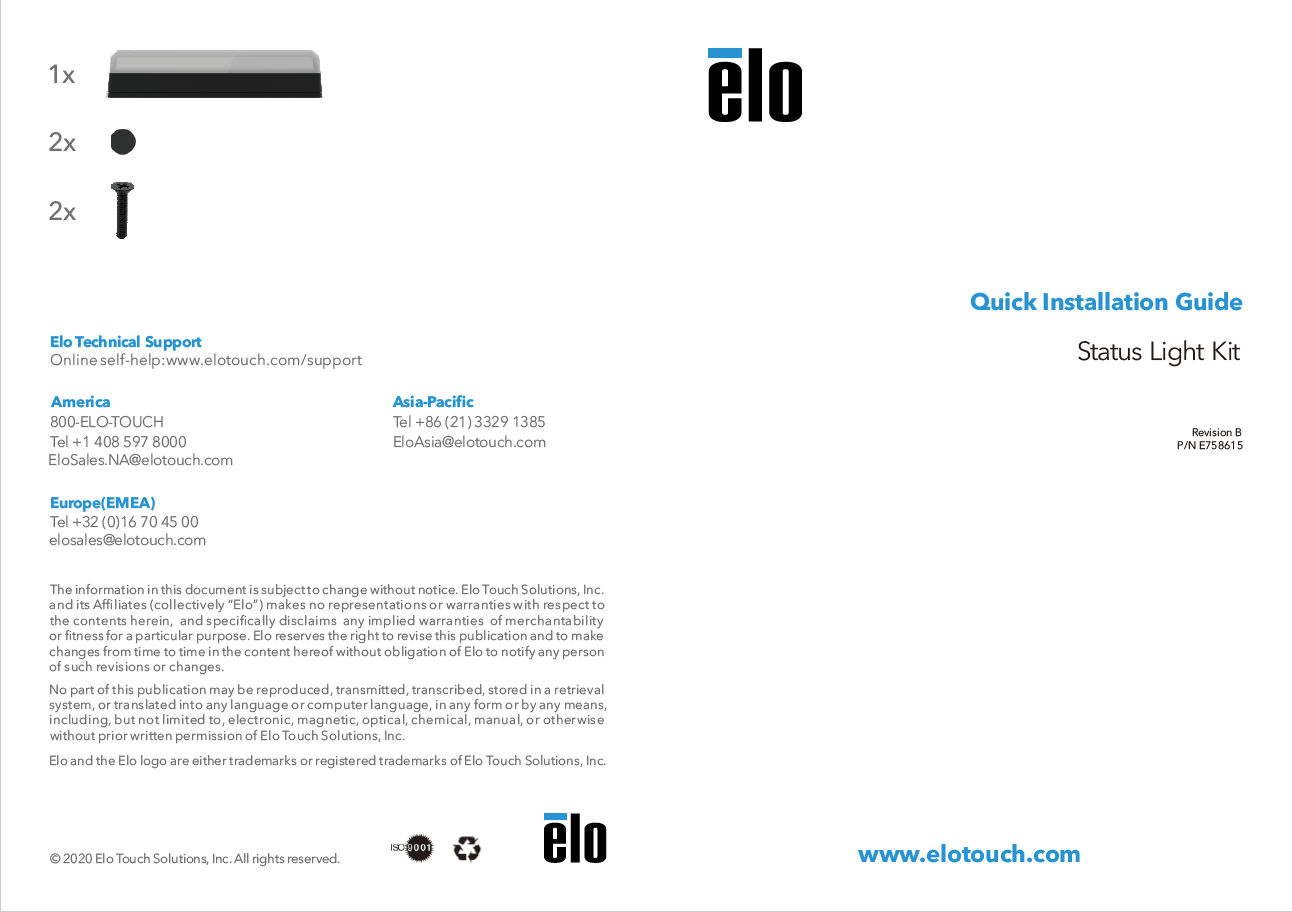

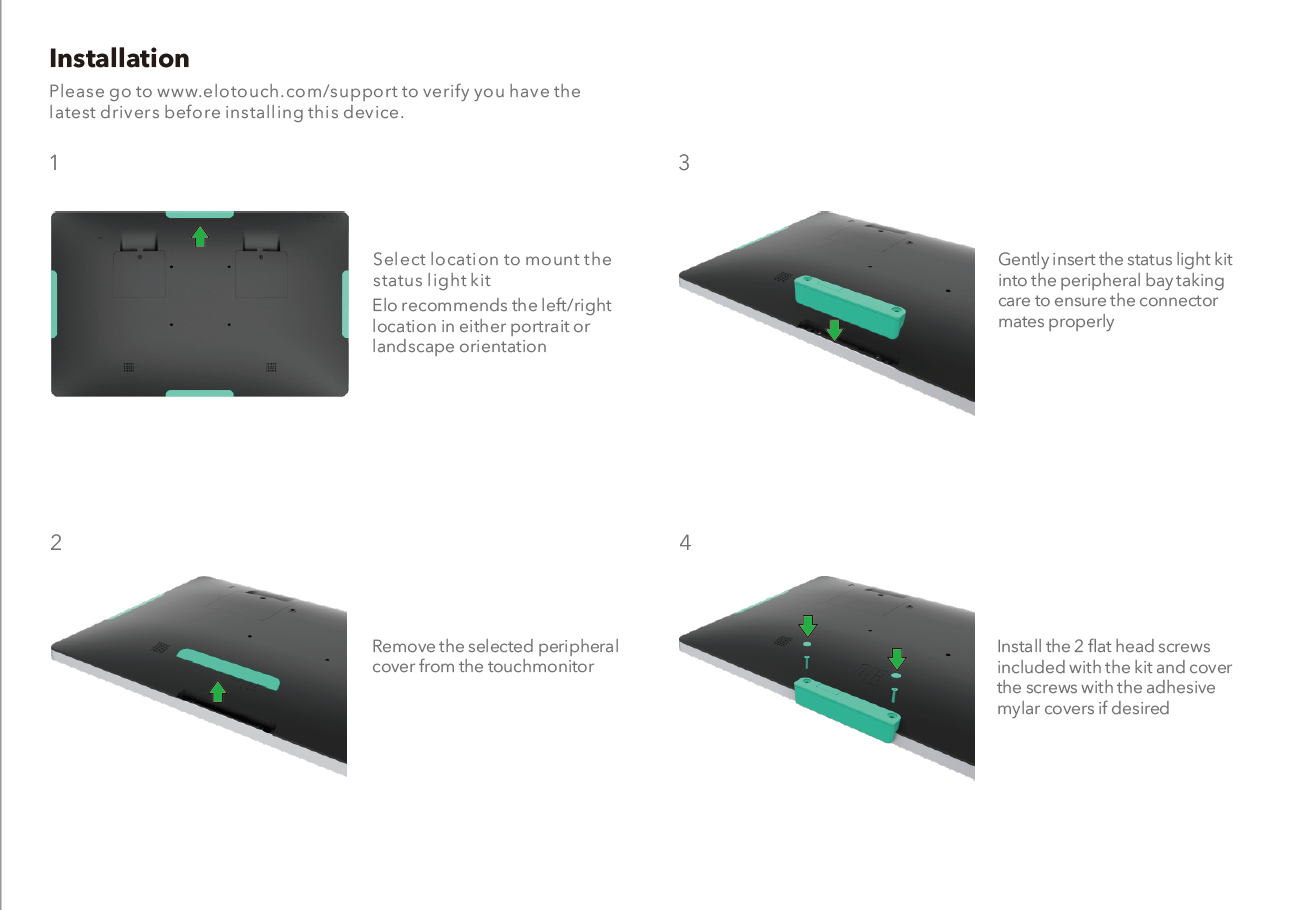

Quick Install Guide
