This article provides steps for connecting a secondary USB-C monitor on an Android I-Series 4 device.
All I-Series 4.0 devices support video, audio, and touch functionality via a single USB-C cable.
The 15.6-inch and 22-inch I-Series 4.0 models can also power a USB-C enabled secondary display or rear-facing customer display, such as the 0704L, 1002L, and up to the Elo 1502L touch monitor, via USB-C when used with the Elo 90W power supply. This requires the 90W Replacement Cable Kit (P/N: E572635), which includes NA and EU power cables, along with a 90W power brick.
For configurations without a secondary display, the standard 65W Power Brick (P/N: E514304) will suffice.
For more information on USB-C connectivity and power delivery, please refer to the I-Series 4.0 User's Manual.
Enabling Video Output

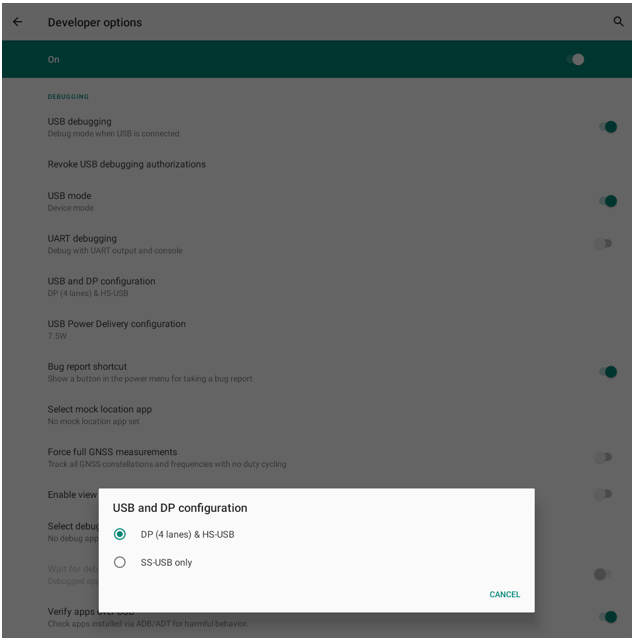

To enable video output, enter the developer options and click on USB and DP configuration.
• Default mode is SS-USB only (no video output)
• Select DP (4 lanes) & HS-USB to allow video output
