This article provides information about E413579 I-Series for Android 4 Replacement 90W Power Brick and Cable Kit

Below information is for the obsolete Elo P/N: E413579 I-Series for Android 4 Replacement 90W Power Brick and Cable Kit. This power brick kit has been replaced with Elo P/N: E572635

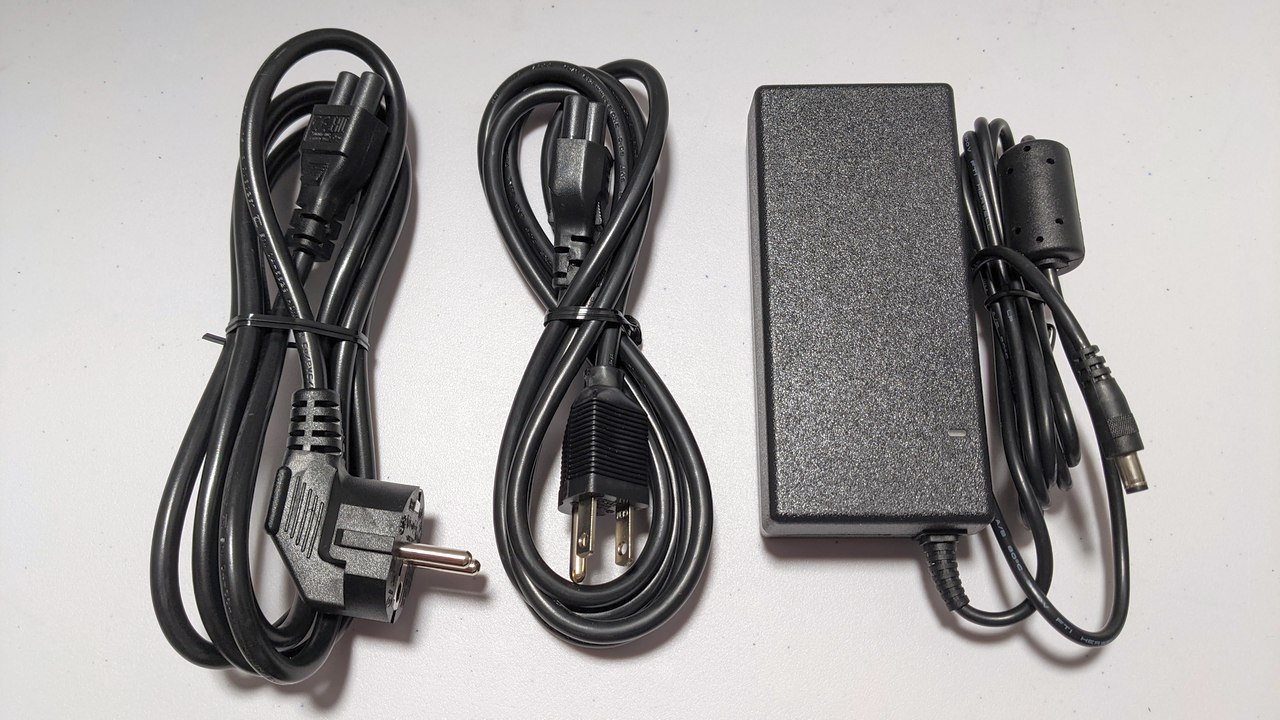

Kit Contents:

• 1 x Delta Power Brick, ADP-65JH HBDB, 19V/65W, short plug (E153026)
• 1 x North American AC Power Cable IEC-C5
• 1 x European AC Power Cable IEC-C5

Specifications:

• Nominal Voltage
  • It is normal for 100 ~ 240Vac input AC voltage.
• Input Voltage Range
  • The Adapter shall operate from 90 ~ 264Vac.
• Rated Frequency
  • It is normal for 50Hz or 60Hz and single phase.
• Frequency Range
  • The Adapter shall operate with an input frequency from 47 Hz to 63 Hz.
• Input Current
  • 1.5A Max at 100Vac input voltage.
• Rated Voltage
  • The rated output voltage is specified at 19V.
• Voltage Range
  • The output voltage will be performed 18.05 ~ 19.95V when the load is 0A ~ 3.42A steadily.
• Current
  • This Adapter can work from 0 A to 3.42A

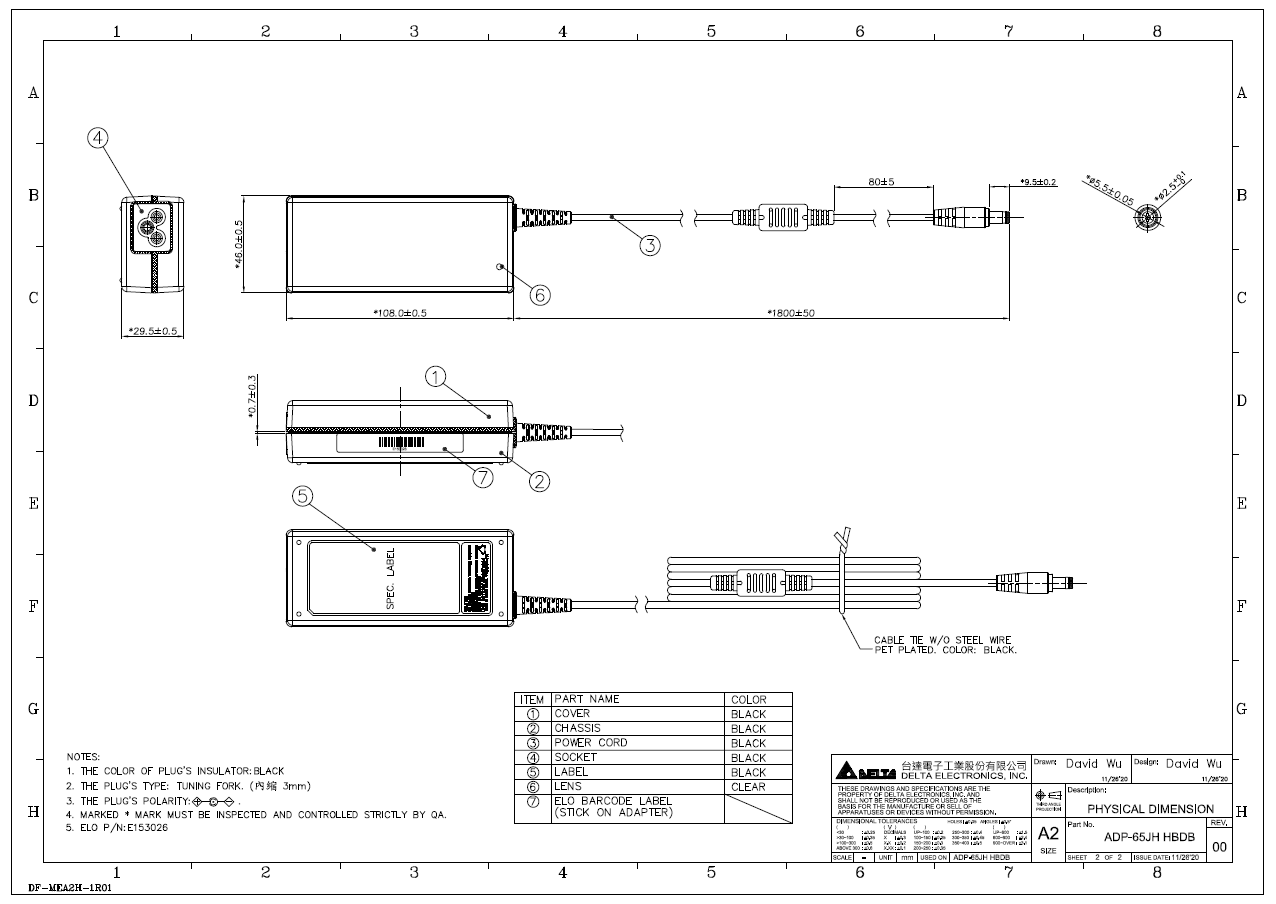

Drawing:

• DC Connector Dimension: OD= 5.5 mm，ID= 2.5 mm，LENGTH= 9.5 mm

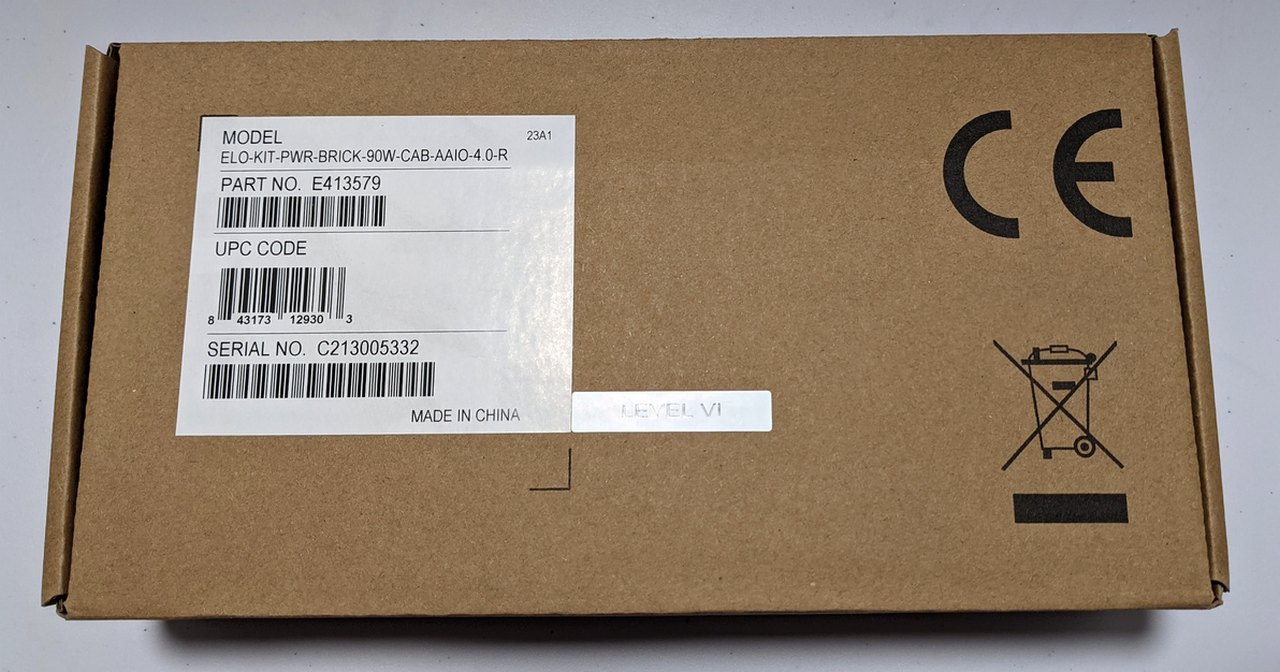

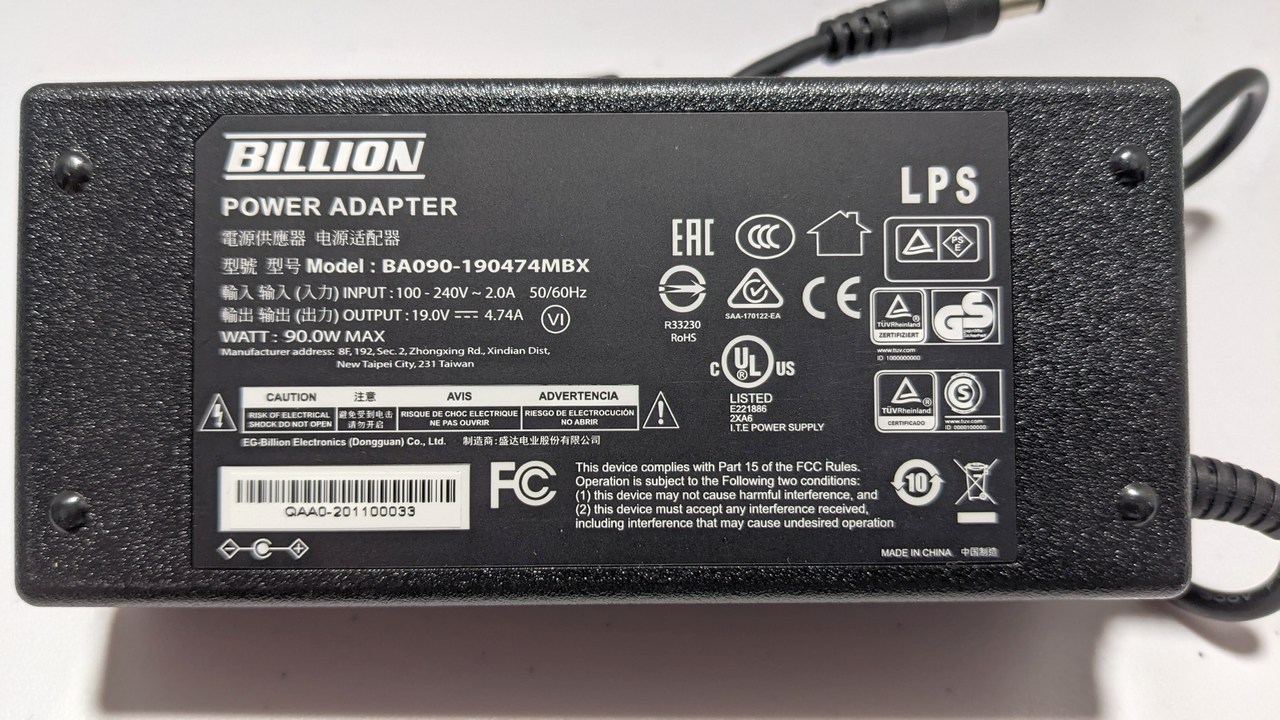

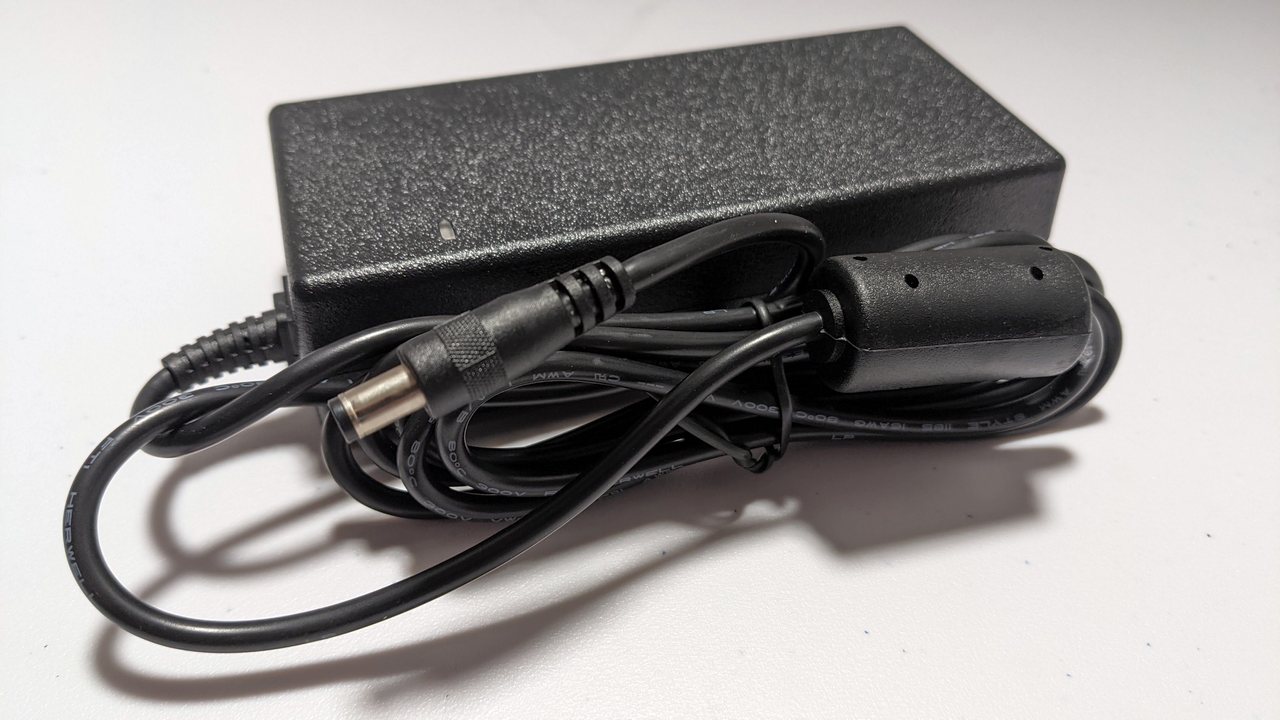

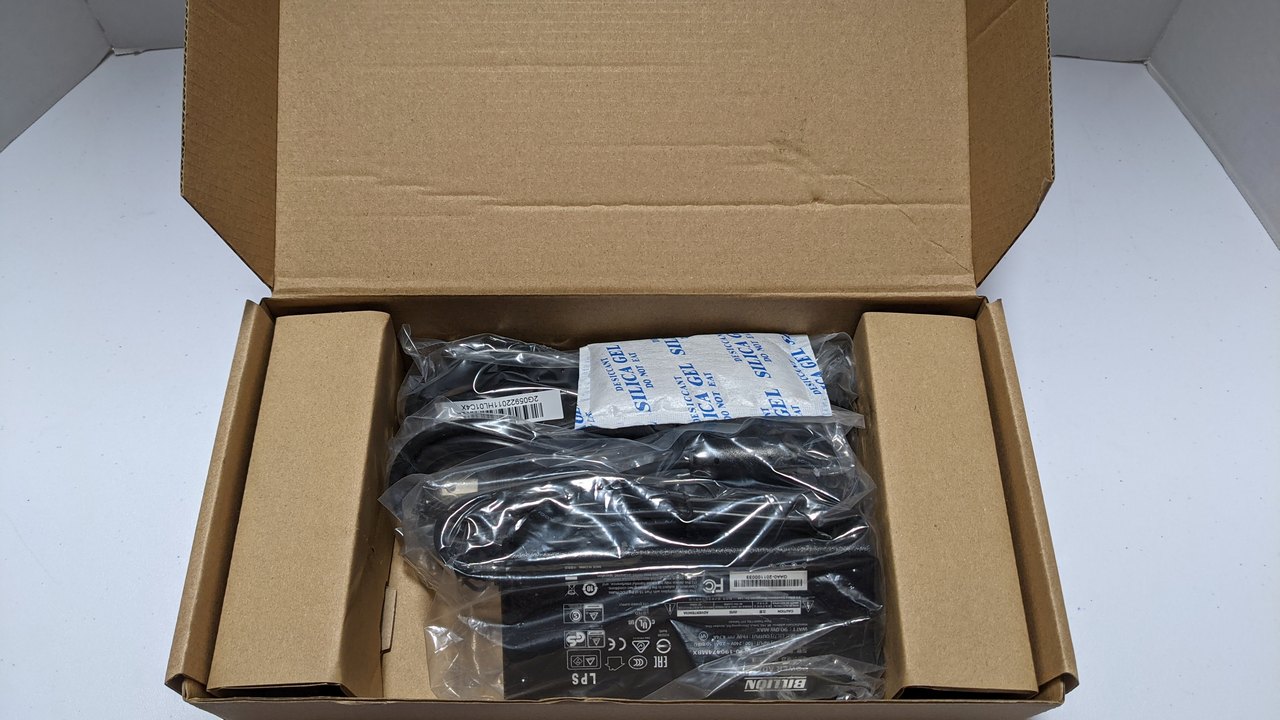

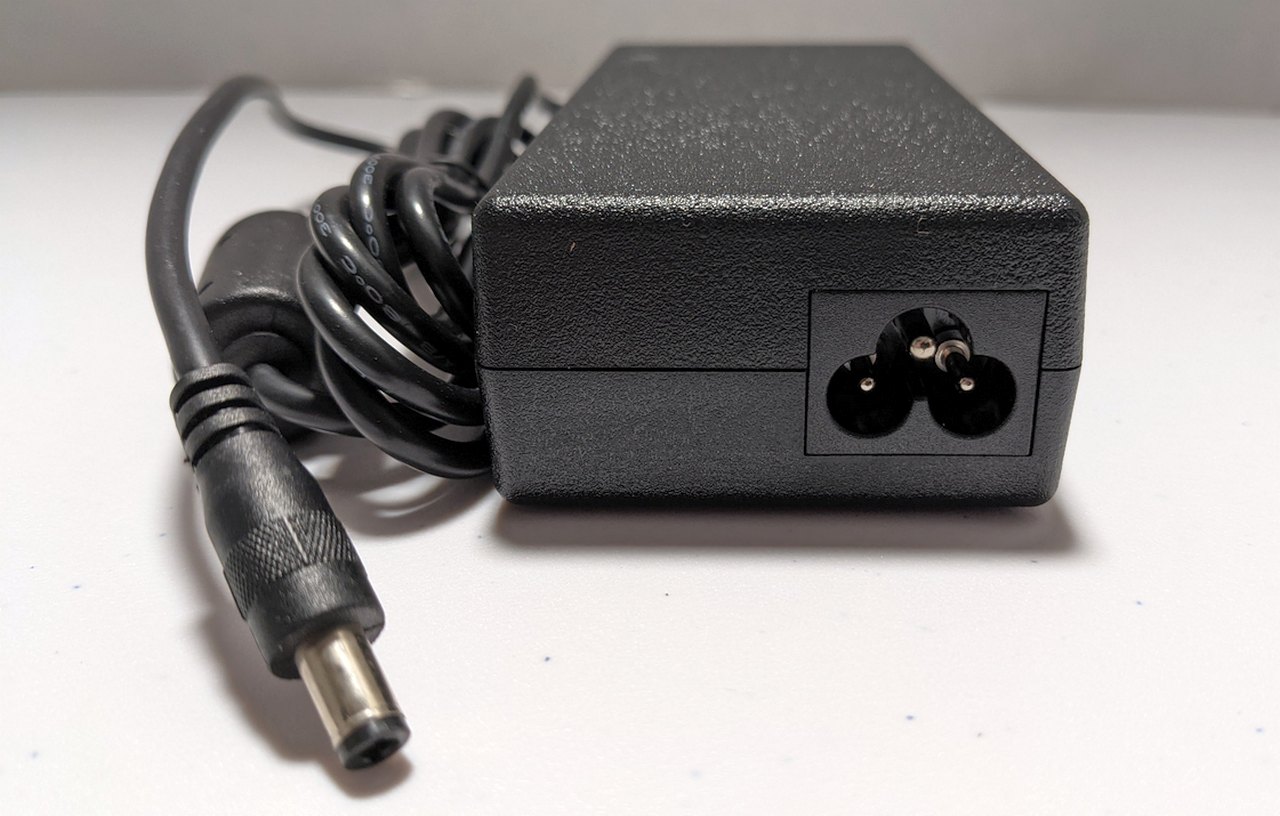

Photos:
