Where can i find E194757 Wall Mount Power Brick Dimensional Drawing?

This article provides the dimensional drawing for the E194757 Wall Mount Power Brick

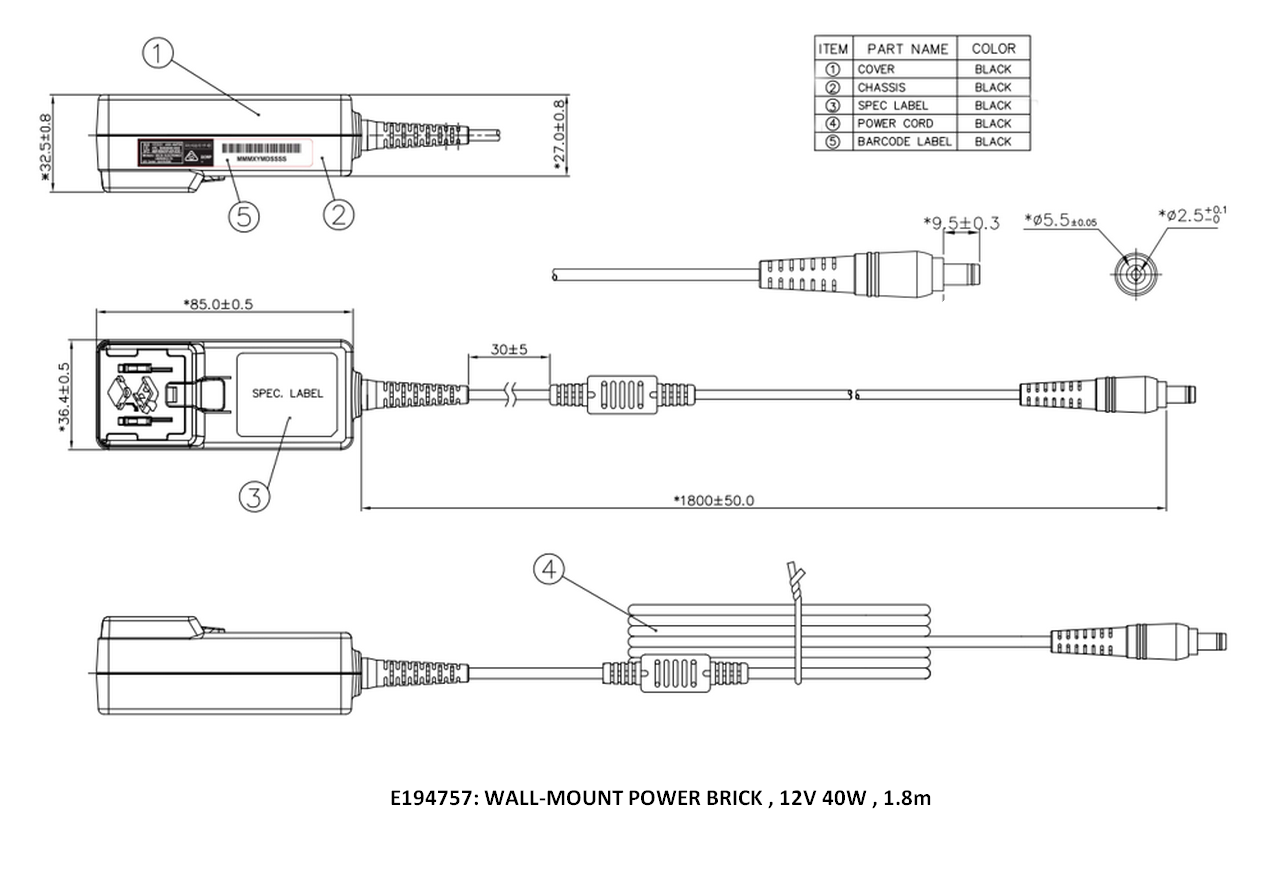

See below for drawing of Elo P/N:E194757: WALL-MOUNT POWER BRICK , 12V 40W , 1.8m




Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
