This article explains where to find information about P/N: E180092, United Kingdom Power Brick Kit

Below information is for the 50W Power Brick sold for Elo Open Frame monitors used in the United Kingdom.

• Elo Power Brick Kit, P/N: E180092
• UPC Code: 741149326087
• Elo P/N Description: ELO-PWR-BRICKCAB- LVL6-UK12V, 4.16A, 50W-R
• Intended Geography: United Kingdom
• Power Adapter Base P/N: E217485

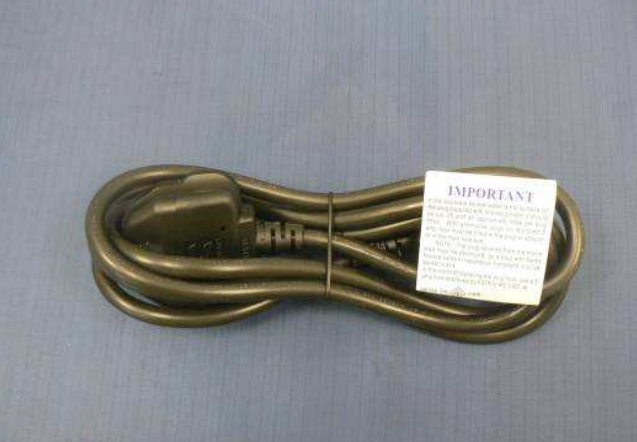

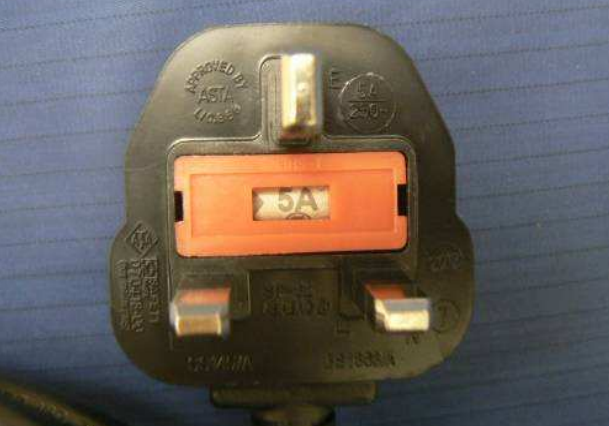

• AC Power Cable Description: Black, 1.8m, UK plug to IEC 60320-C13

Specifications:

1. SCOPE
•    This document defines the spec for Delta ADP-50YH power brick.

2. GENERAL DESCRIPTION
•    50W External Power Brick ・Level VI ・LPS ・RoHS compliant

3. GENERAL SPEC
•    Delta Power Brick
•    Dimensions 120mm (L) × 52.5mm (W) × 32.5mm (H) or 110mm (L) × 62.0mm (W) × 31.5mm (H) (without protrusion and cable)
•    Weight - Approximately 284g
•    Plug - 3pin (IEC60320-1 C14)
•    Color - Black
•    Output - DC cable


4. ENVIRONMENTAL SPEC
•    Working temp 0～40℃
•    Working humid Delta: 8～95%RH (Under non-condensation）
•    Storage temp Delta: -20～95℃
•    Storage humid 10～90%RH (Under non-condensation）5～95%RH (Under non-condensation）

5. INPUT SPEC
•    Voltage

•    Frequency

•    AC input current - Delta: Max.1.7A

6. OUTPUT SPEC (POWER BRICK）
•    Rating voltage - DC12V
•    Output current - Max. 4.16A
•    Ripple voltage - Less than 300mVp-p (Under normal AC power input）

7. SAFETY SPEC
•    Leak current - Delta: less than 0.60mA
•    Withstanding voltage - 3000VAC, less than 10mA, 1sec
•    Insulation resistance - DC500V, larger than 20MΩ, 1sec
•    Others


8. REGULATION
•    Power brick


9. RELIABILITY
•    MTBF - Delta: 100,000 hours (Under 25℃）

10. PRECAUTION AND OTHERS
•    For power brick only
•    Warranty void with customer modification.
•    Spec change - This spec will be updated without notice.

Photos







Drawings
