This article provides steps for using NCR imaging suite software with the EloPOS All-In-One (AIO) Touch Computer.

Notes:

• Network rules should allow UDP port 137 for NetBIOS traffic
• Network adapter should allow NetBIOS over TCP/IP
• Network shared folder (location to store and deploy captured images)
• Windows server or workstation
• No other DHCP service should exist on the network segment
• Works with and without a network gateway
• When adding additional drivers to Boot.wim, maintained file under 400MB

Imaging Suite Download:
https://www5.ncr.com//support/support_drivers_patches_radiant.asp?Class=Hospitality/GenDrivers_display v5.4.0.4
Content of File:

• Prerequisites
• PXEBOOT-WINPE
• Recovery_Update
• Utilities
• NCR Imaging Suite User Guide.doc
• ReleaseNotes.txt

Instructions:

1. Connect server “PXE server” and EloPOS “PXE client” on the same network segment
2. On the PXE server, assign an IPv4 static address of 10.10.10.2, subnet mask 255.255.255.0, gateway 10.10.10.1, DNS 8.8.8.8, 8.8.4.4
3. Create a network shared folder labeled “Images”
4. Go into the folder \PXEBOOT-WINPE\UEFI\ and launch tftpd32.exe
5. Configure the TFTP tab with the settings shown below

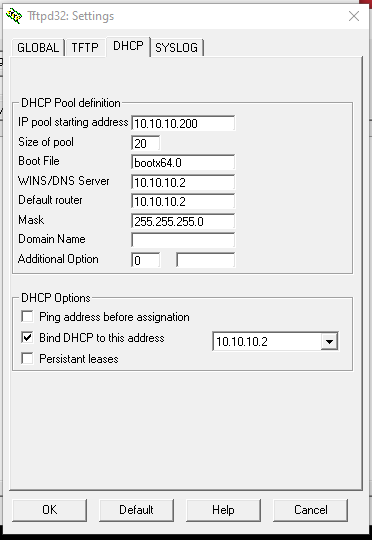

6. Next, configure DHCP tab with the settings shown below

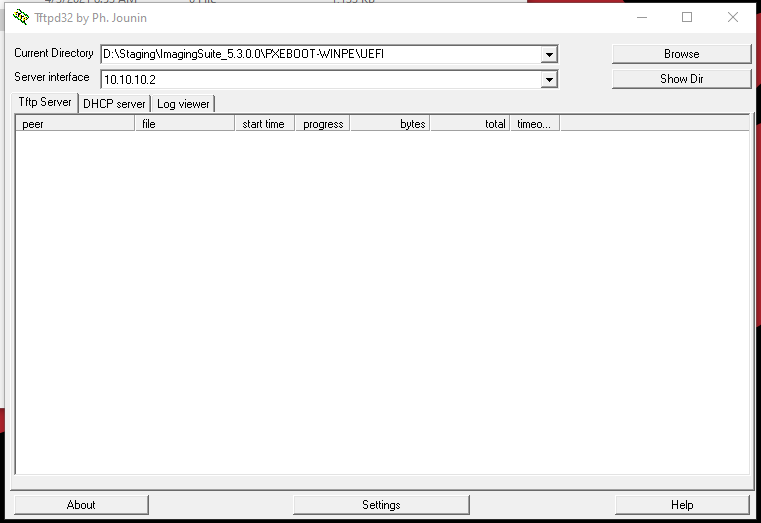

7. On the Tftpd32 main window, select the server interface 10.10.10.2

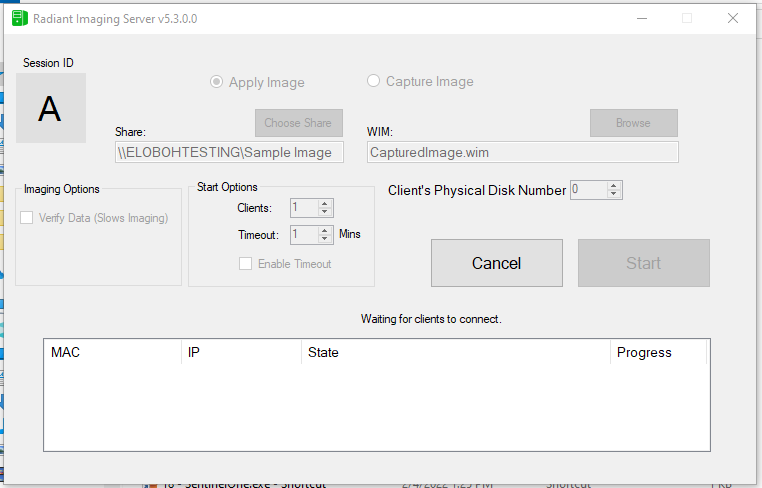

8. Go to the folder \ImagingSuite_5.4.0.4\Utilities\ and launch ImagingServer.exe
9. Select Capture or Apply Image. In this example, we have a captured image ready.
10. Click Choose Share and select the “Images” network shared folder
11. Enter credentials allowed to access the shared folder
12. Click Browse to select a previously captured image (.wim)
13. Click Start

14. On the PXE client, enabled PXE boot and UEFI mode in the BIOS settings
15. Perform an IPv4 network boot
16. Wait for the PXE client to receive a DHCP address from the PXE server
17. Wait for PXE client to download boot.wim boot file.
18. Wait for PXE client to enter pre-boot environment and load the network driver.
19. Wait for PXE client to automatically launch ImageClient.exe
20. Choose to Connect to NCR server
21. If the IP address of the PXE server appears, the PXE client is ready to receive an image.

Other notes:

• When boot.wim is larger than 400MB, EloPOS will crash. Remove unnecessary drivers to reduce the size of the file. Use DISM utility in Windows to modify and cleanup .wim files.
• ImagingServer.exe will use NetBIOS service to communicate with ImageClient.exe
