This article provides more information about Elo P/N: E179789 Power brick and cable kit for Elo 1919LM monitor

Below is information for Elo P/N: E179789 Power brick and cable kit for Elo 1919LM monitor (obsolete)
This part was discontinued November 11, 2015

Part Number & Description

• E179789: ELO-PWR-BRICKCAB-NA12V,48W,C14-R,Medical for Elo 1919LM Touchscreen Monitor

Specifications

• Input Voltage Specification: 100-240VAC 50/60HZ
• Input Current Rating: 1.2A MAX
• Input Connector: IEC 60320 C14
• Output Voltage: 12VDC
• Output Current: 4A
• Output Connector
• DC Barrel Jack
  • Barrel outer diameter: 5.5mm
  • Pin inner diameter: 2.1mm
  • Barrel length: 11mm

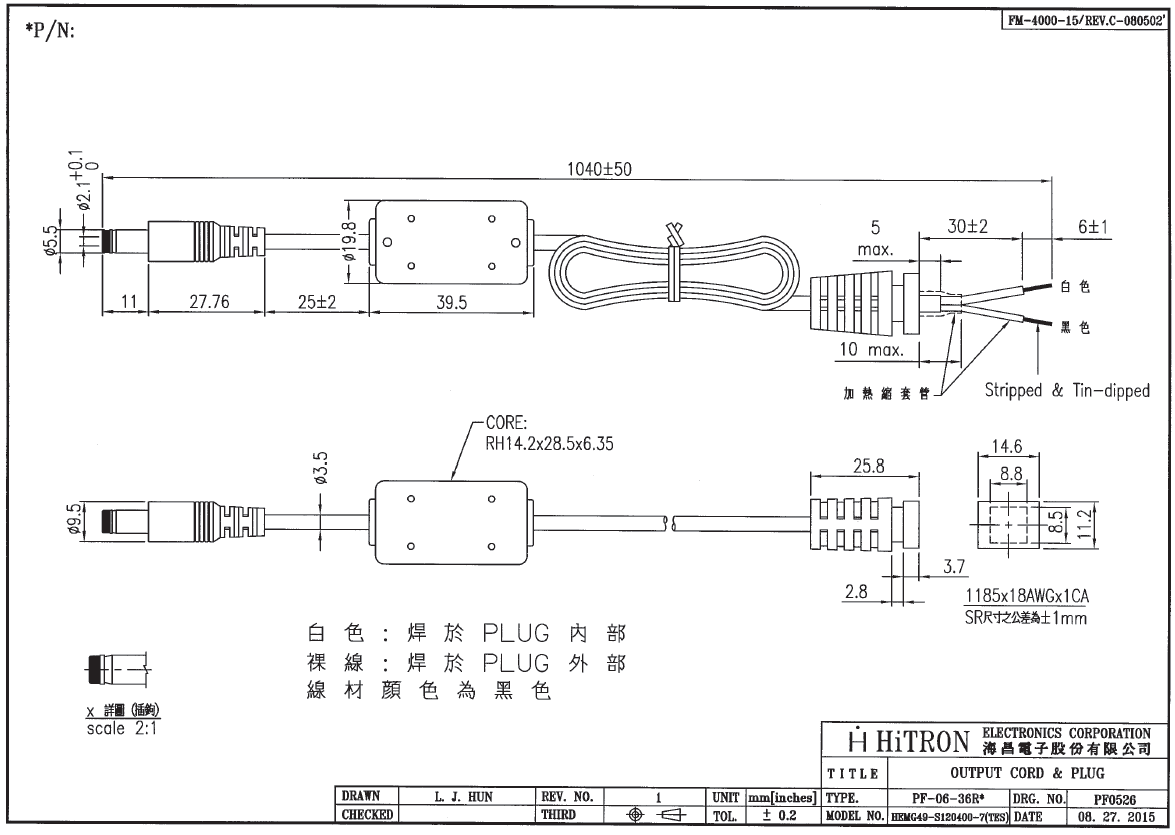

Drawing
