Welcome to Elo Support

Drivers, Product Info, Technical Answers and more.

Where can I find information on E181106, Power Adapter for 1502LM Medical Monitor?

This article provides more information about Elo P/N: E181106, Power Adapter for the 1502LM

Below is information for Elo P/N: E181106, 60W Power Adapter for ET1502LM Medical Monitor.

Part Number & Description

  • E181106: Elo-Pwr-Adapt-1502LM-60W
  • Elo Power Brick Kit - 60W Adapter Only, 02LM-Series Medical Monitor

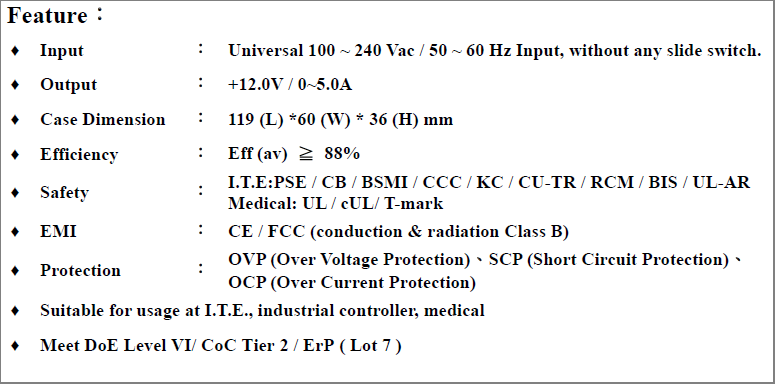

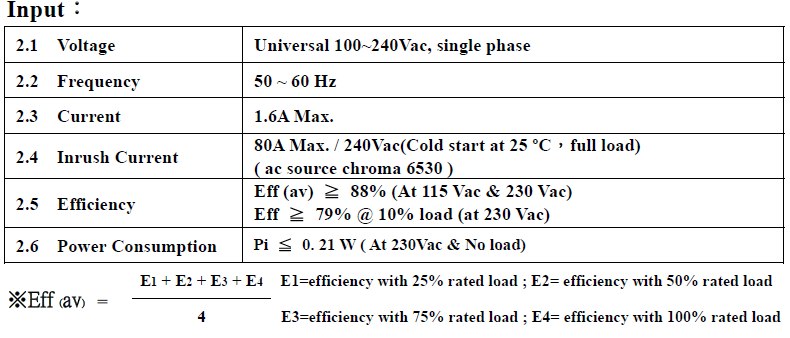

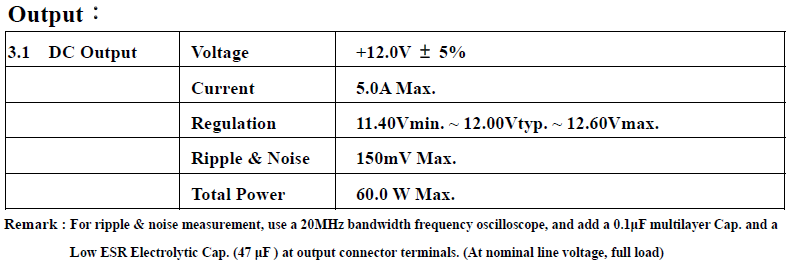

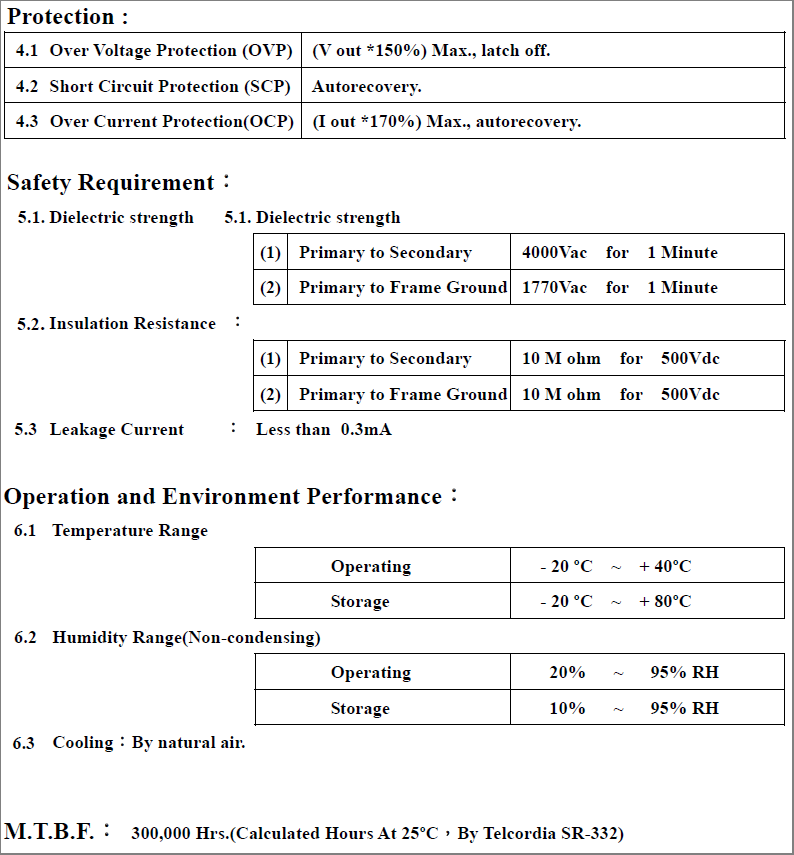

Specifications

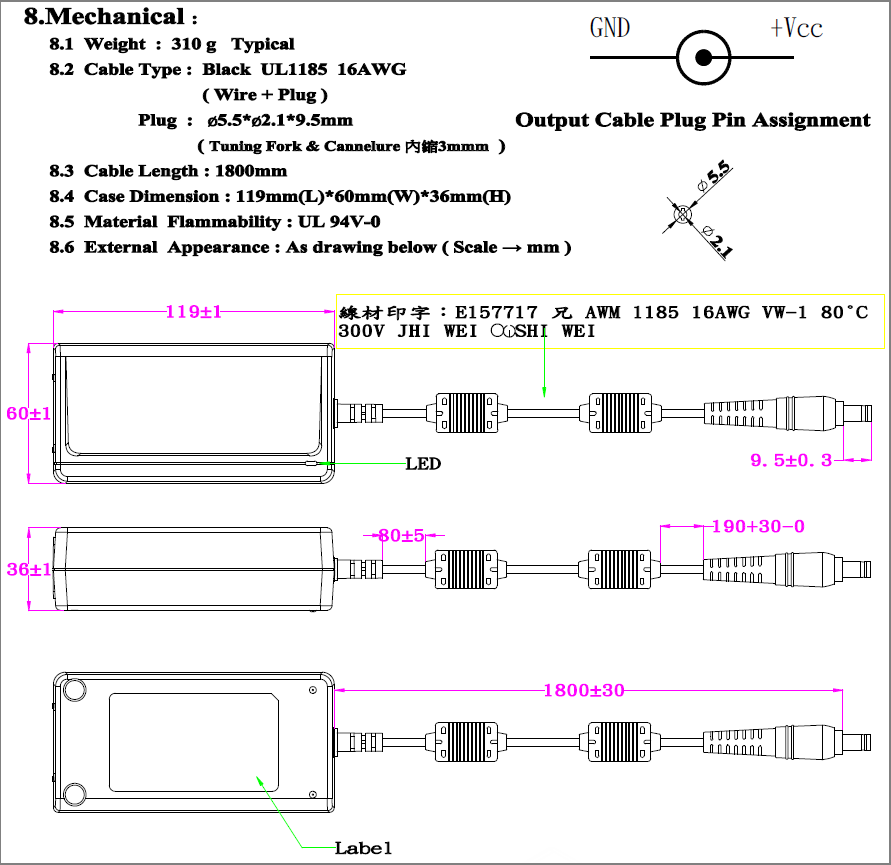

Drawing

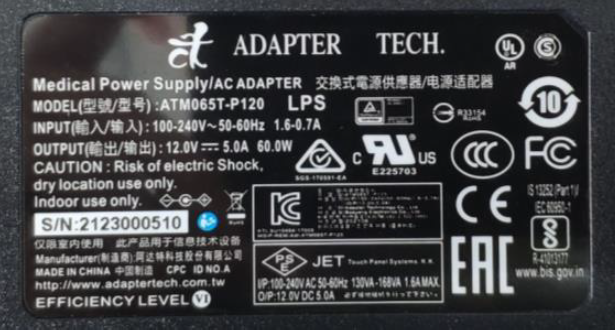

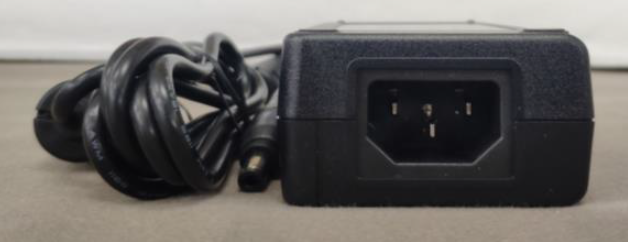

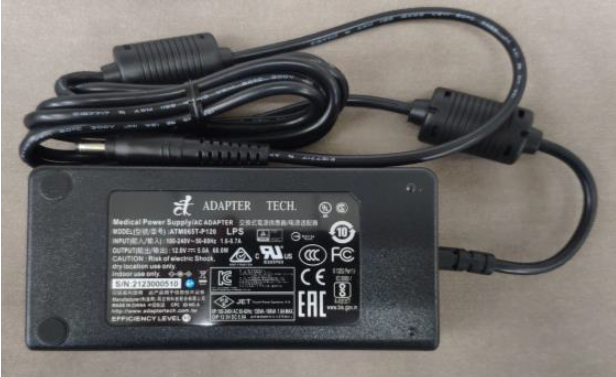

Photos


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
