This article provides Mobile Imager Aiming Element Specifications for the Elo M60 Pay Mobile device.

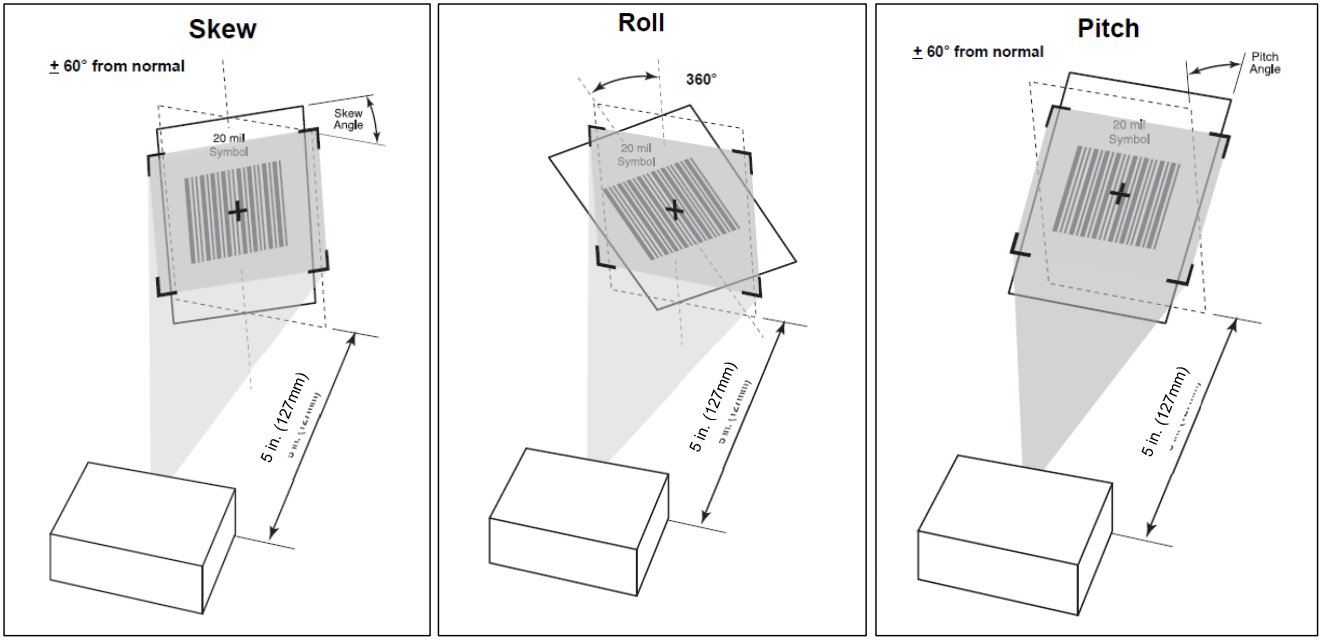

Skew, Roll, and Pitch
Measured on a 20 mil Code 39 symbol at distance of 5 inches. Tolerance for skew and pitch is reduced at extreme ends of the working range.
Imager Technical Specification
Imager Decode Ranges

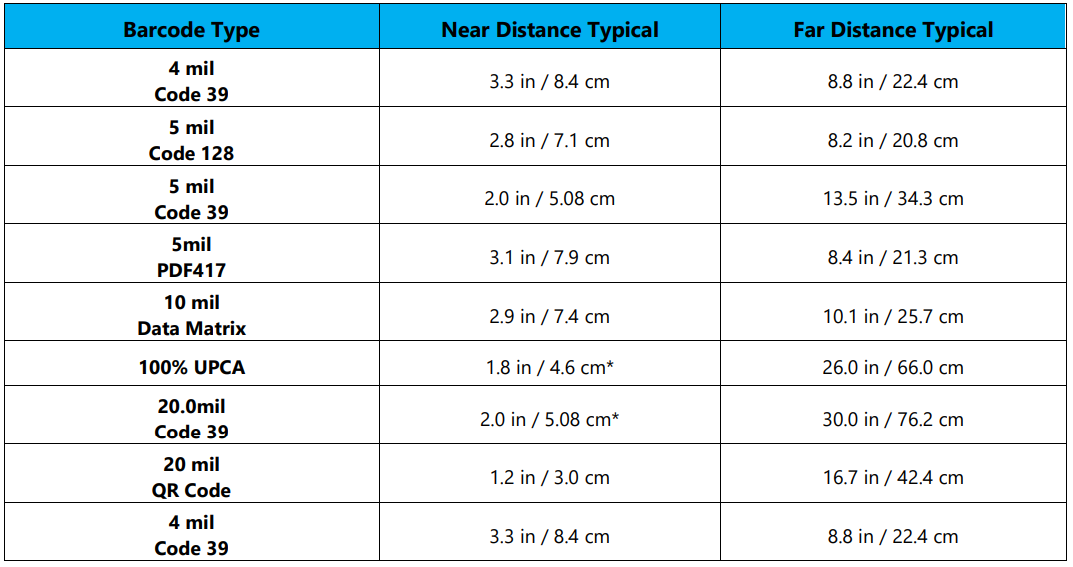

- Trigger Level Mode Working Decode Ranges
*Limited by width of bar code in field of view.
Note: Photographic quality bar code at 15° tilt pitch angle under 30fcd ambient illumination.

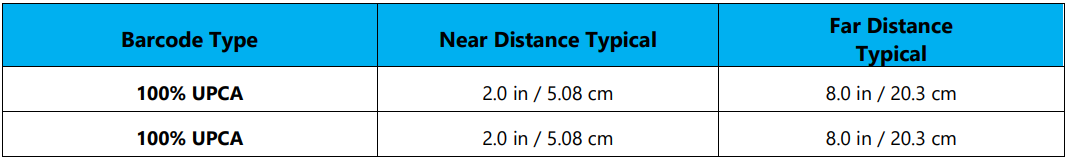

Presentation Mode Working Decode Ranges (Swipe Speed 30 In/sec)
