This article provides instructions on how to properly mount the M100 to the POS Dock with the Rugged Case installed

To properly mount an M100 equipped with the E119632 Rugged Case onto the E640102 POS Dock, follow these steps:

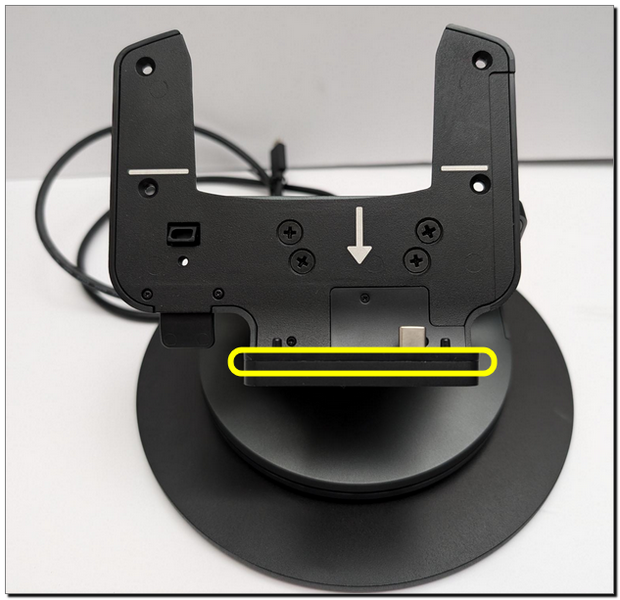

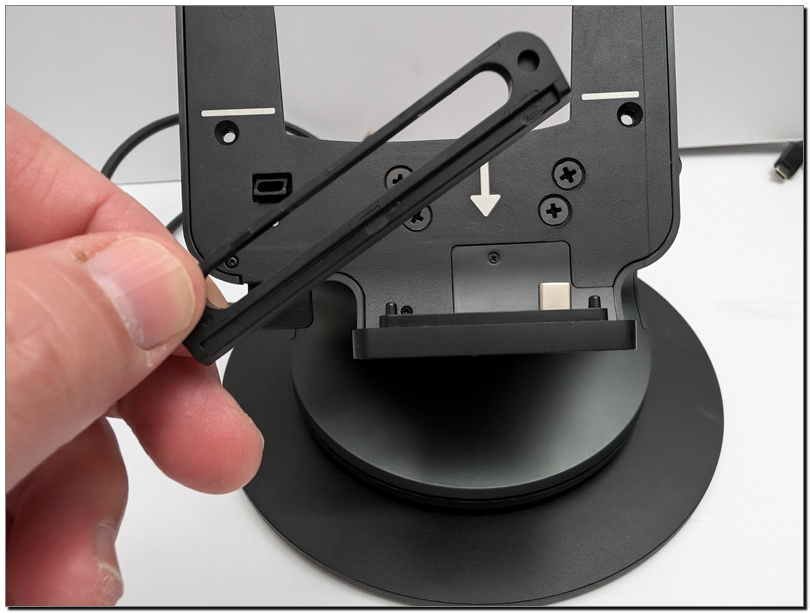

1. Remove the Plastic Spacer: Begin by removing the plastic spacer located at the USB-C connection on the dock.

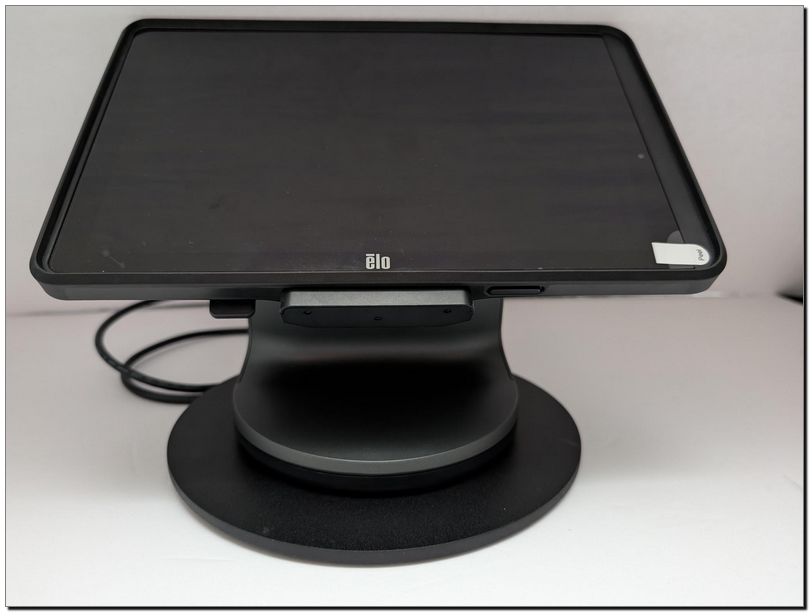

2. Attach the M100: Once the spacer is removed, proceed to lock the M100 onto the dock.

• This ensures a secure and stable connection between the M100 and the POS Dock.
