This article provides specifications for the Elo M60 Pay Mobile Device's NFC/EMV Contactless Reader.

EMVCo L1 and L2 contactless certified:

• Visa PayWave.
• MasterCard PayPass.
• AMEX ExpressPay.
• Discover D-PAS.
• From Available devices screen, tap a device to pair.

Compatible with:

• ISO14443-Type A & B (for EMV cards) read and write mode.
• ISO18092.
• MiFare.

Reading NFC and EVM card

• To start reading NFC card, open the Elo demo payment app or depending which application is installed.
• Follow the on-screen instruction.

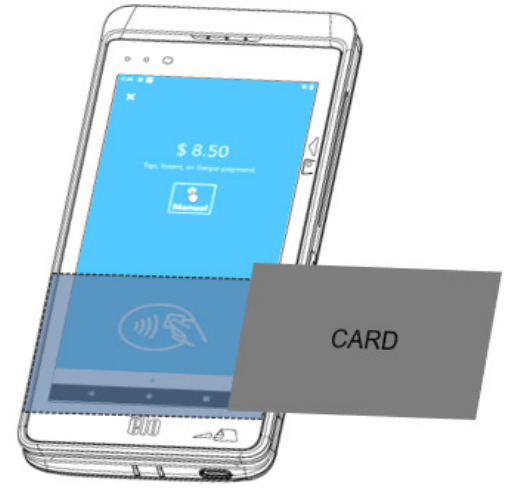

• When device is ready to read, place the NFC card at the location as show below.
• When the card is read by default a beep sound will turn ON.
