This article provides information and specs on the E792273, 150 Watt Power Adapter Kit for the Z20 and Z30

Part Number: E792273
Description: ELO-KIT-PWR-BRICK-150W-CAB-AAIO-R

Kit Contents:

• 1 - of the below150W Power Adapters
  • E209501: Power Brick, 24V/150W, Delta, ADP-150EH BB
  • E408788: Power Brick, 24V/150W, FSP PowerTek

• 1 - North American Power Cable
• 1 - EU Power Cable

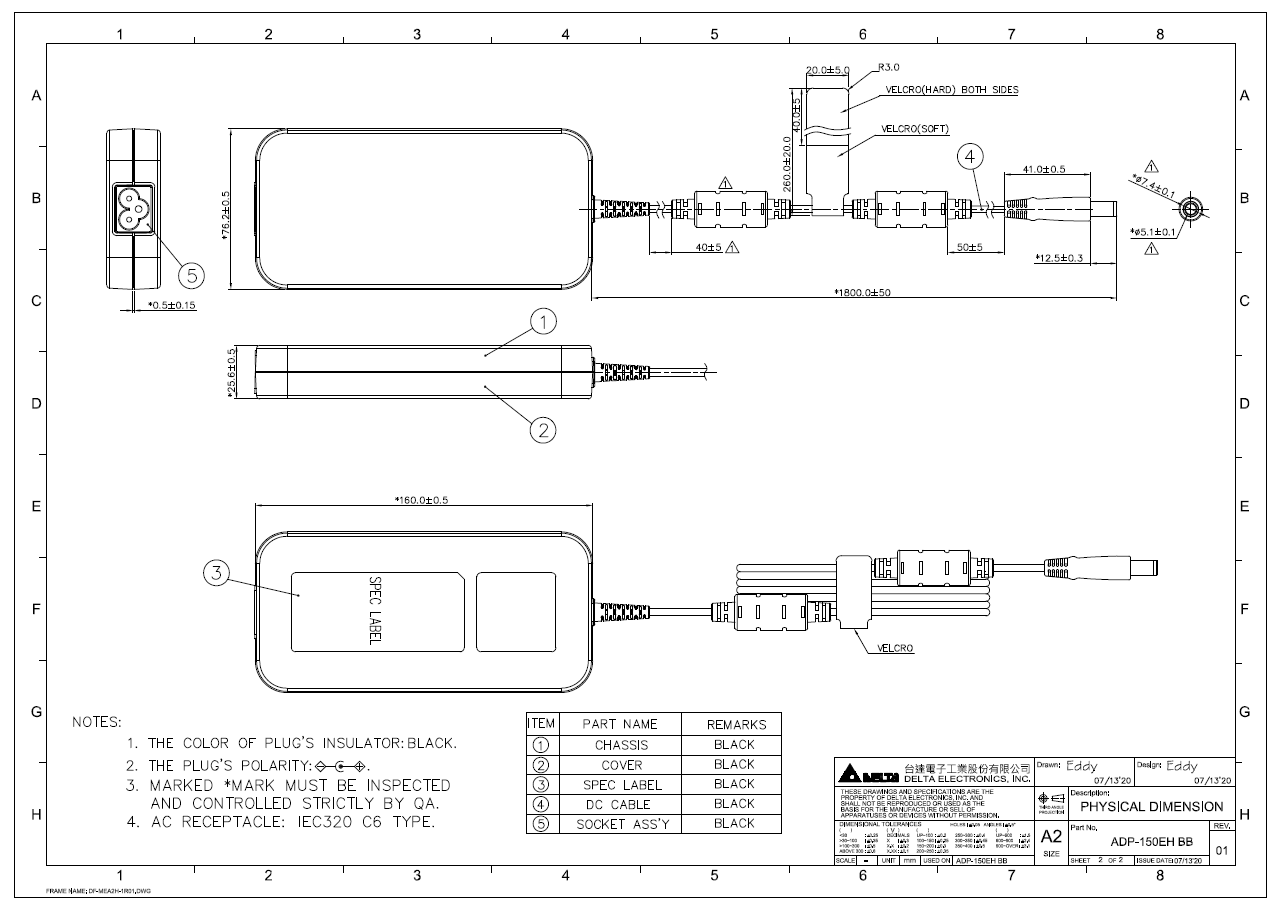

Drawings

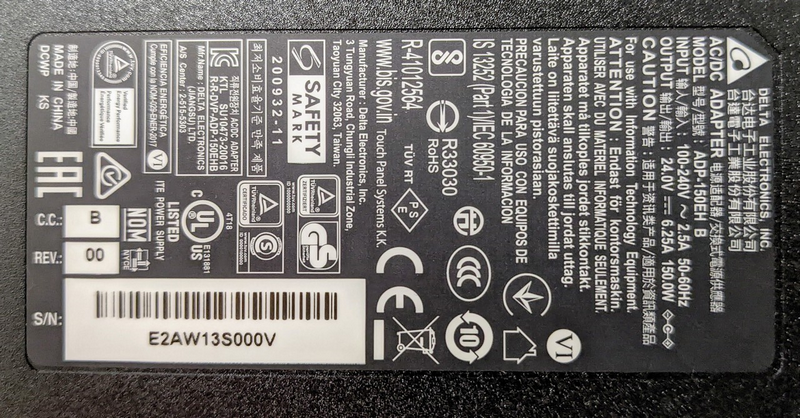

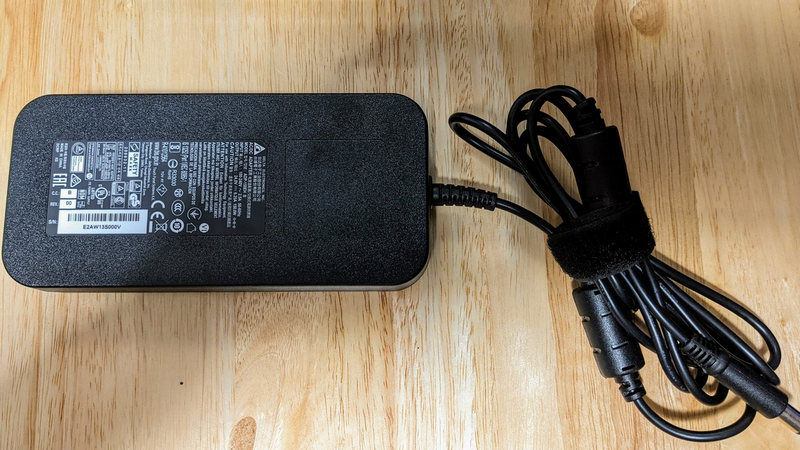

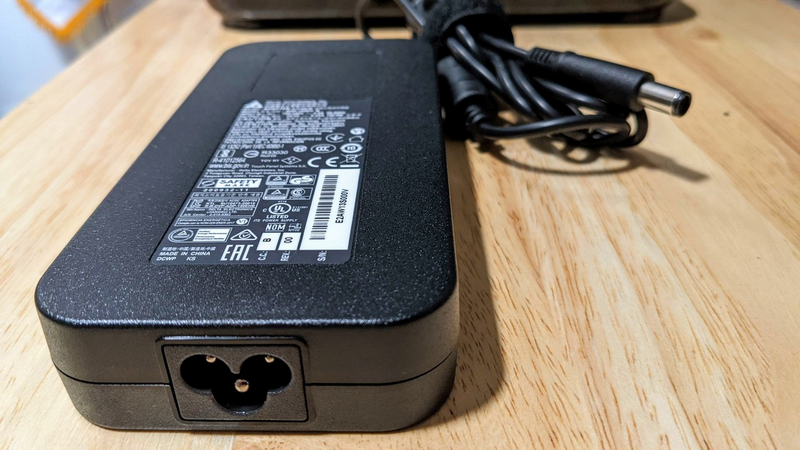

Photos

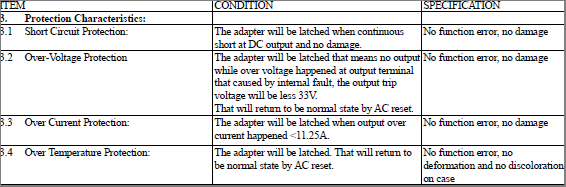

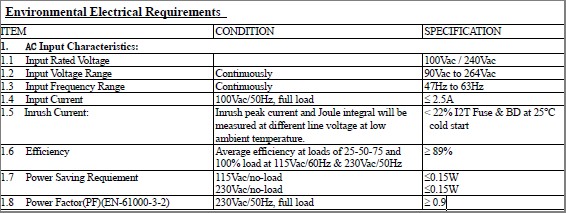

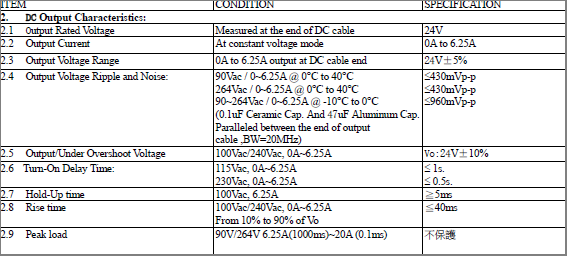

Specifications

• Mechanical characteristics
  • Outline Dimension: 160.0 x 76.2 x 25.6 mm, Color: Black
  • AC Inlet type: Socket C6 type
• DC Cable:
  • TYPE: UL 1571 17AWG
  • LENGTH: 1800 mm
• DC Connector Dimension:
  • OD: 5.5mm; ID:2.5mm; Length: 11.0mm
