This article provides the drawings and specs for the E005277 power adapter
Below are specifications and drawings for the E005277 power brick kit.
The E005277 power adapter kit will include one of the below power adapters:
- E217485 PWR-BRICK,12V,50W,LVL VI,2.1D,DELTA
- E757851 PWR-BRICK,12V,50W,LVL VI,2.1D,FSP
This Kit also contains one (1) AC Power Cable: Black, 1.8m, NA plug to IEC 60320-C13
Specifications:
1. SCOPE
• This document defines the spec for Delta ADP-50YH or FSP FSP050-DIBAN2 power brick.
2. GENERAL DESCRIPTION
• 50W External Power Brick ・Level VI ・LPS ・RoHS compliant
3. GENERAL SPEC
• Delta Power Brick
• Dimensions 120mm (L) × 52.5mm (W) × 32.5mm (H) or 110mm (L) × 62.0mm (W) × 31.5mm (H) (without protrusion and cable)
• Weight - Approximately 284g
• Plug - 3pin (IEC60320-1 C14)
• Color - Black
• Output - DC cable
• Dimensions 120mm (L) × 52.5mm (W) × 32.5mm (H) or 110mm (L) × 62.0mm (W) × 31.5mm (H) (without protrusion and cable)
• Weight - Approximately 284g
• Plug - 3pin (IEC60320-1 C14)
• Color - Black
• Output - DC cable
o Length Approximately 1.8m
o Cord 17AWG
o Plug Outer φ5.5 Inner φ2.1
o Cord 17AWG
o Plug Outer φ5.5 Inner φ2.1
4. ENVIRONMENTAL SPEC
• Working temp 0～40℃
• Working humid Delta: 8～95%RH (Under non-condensation）
• Storage temp Delta: -20～95℃
• Storage humid 10～90%RH (Under non-condensation）5～95%RH (Under non-condensation）
• Working humid Delta: 8～95%RH (Under non-condensation）
• Storage temp Delta: -20～95℃
• Storage humid 10～90%RH (Under non-condensation）5～95%RH (Under non-condensation）
5. INPUT SPEC
• Voltage
o Rating AC100-240V
o Workable range AC90-264V
o Workable range AC90-264V
• Frequency
o Rating 50 ／60Hz
o Workable range 47-63Hz
o Workable range 47-63Hz
• AC input current - Delta: Max.1.7A
6. OUTPUT SPEC (POWER BRICK）
• Rating voltage - DC12V
• Output current - Max. 4.16A
• Ripple voltage - Less than 300mVp-p (Under normal AC power input）
• Output current - Max. 4.16A
• Ripple voltage - Less than 300mVp-p (Under normal AC power input）
7. SAFETY SPEC
• Leak current - Delta: less than 0.60mA
• Withstanding voltage - 3000VAC, less than 10mA, 1sec
• Insulation resistance - DC500V, larger than 20MΩ, 1sec
• Others
• Withstanding voltage - 3000VAC, less than 10mA, 1sec
• Insulation resistance - DC500V, larger than 20MΩ, 1sec
• Others
o OVP function
o SCP function
o SCP function
8. REGULATION
• Power brick
o Safety: PSE, UL, c-UL, Argentina S-Mark, PSB, GOST, NOM, TUV-GS, KC, CCC, BSMI
o EMI: VCCI-B, CE, FCC, C-Tick
o EMI: VCCI-B, CE, FCC, C-Tick
9. RELIABILITY
• MTBF - Delta: 100,000 hours (Under 25℃）
10. WARRANTY
• Warranty period is 3 years.
• We replace production within warranty period
• Fare-paying services are available after warranty period.
• Charge-free is not available due to wrong operation in-warranty.
• We replace production within warranty period
• Fare-paying services are available after warranty period.
• Charge-free is not available due to wrong operation in-warranty.
11. PRECAUTION AND OTHERS
• For power brick only
• Warranty void with customer modification.
• Spec change - This spec will be updated without notice.
• Warranty void with customer modification.
• Spec change - This spec will be updated without notice.

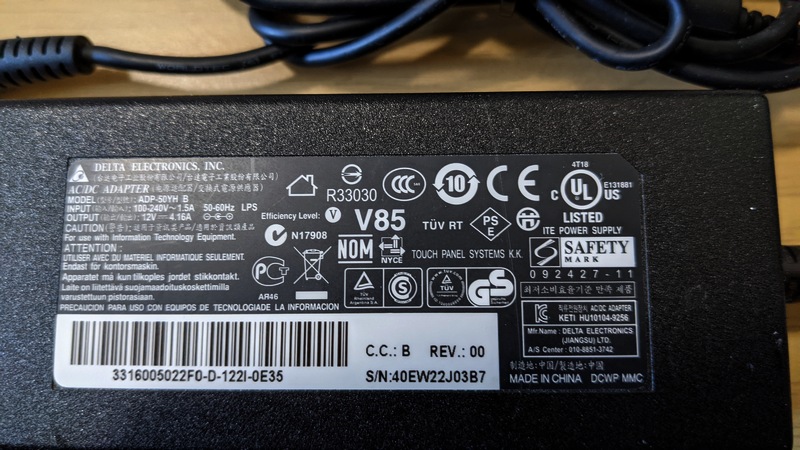

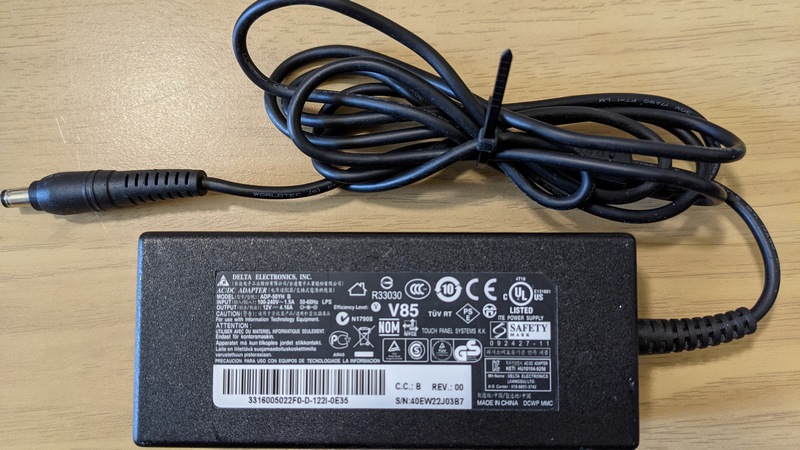

Photos
Drawings
