This article provides the steps to find the cash drawer power switch on the EloPOS Expansion module

The cash drawer power switch on the EloPOS Expansion module, part number: E263603, allows you to switch from the default 24V output to a 12V output. See below for details.

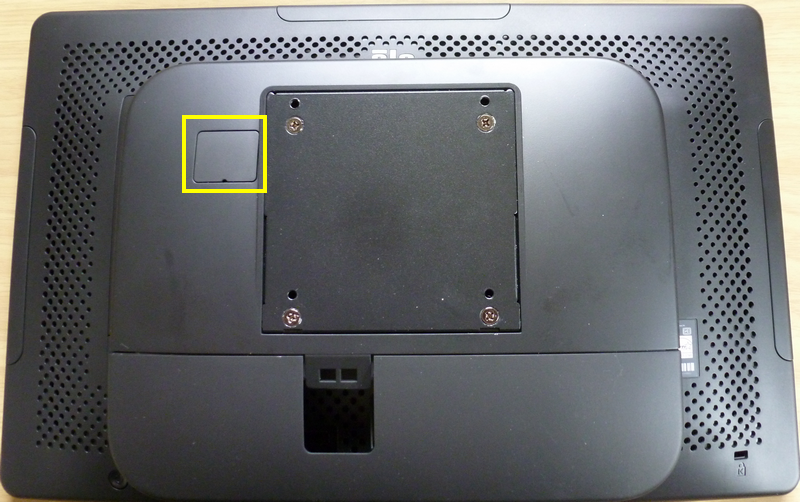

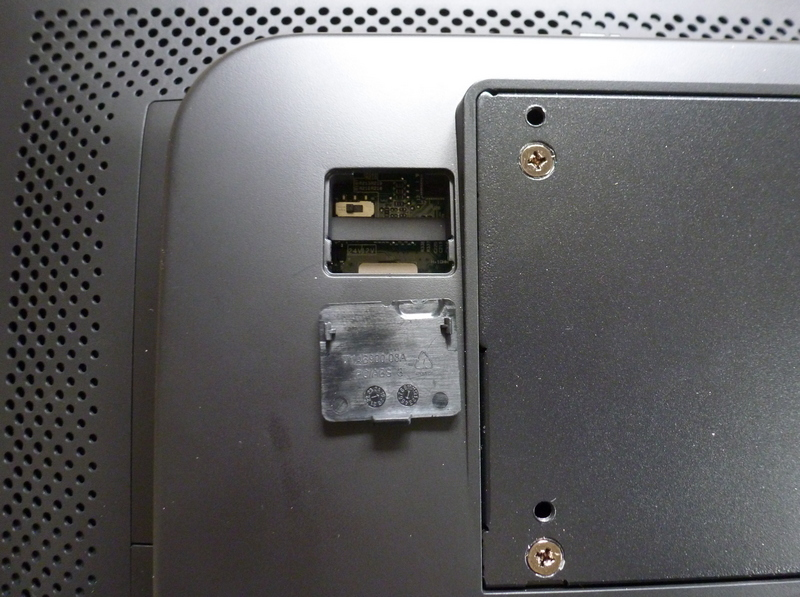

1. On the back of the EloPOS Expansion module, there is an access door which must be opened to access the cash drawer power switch.

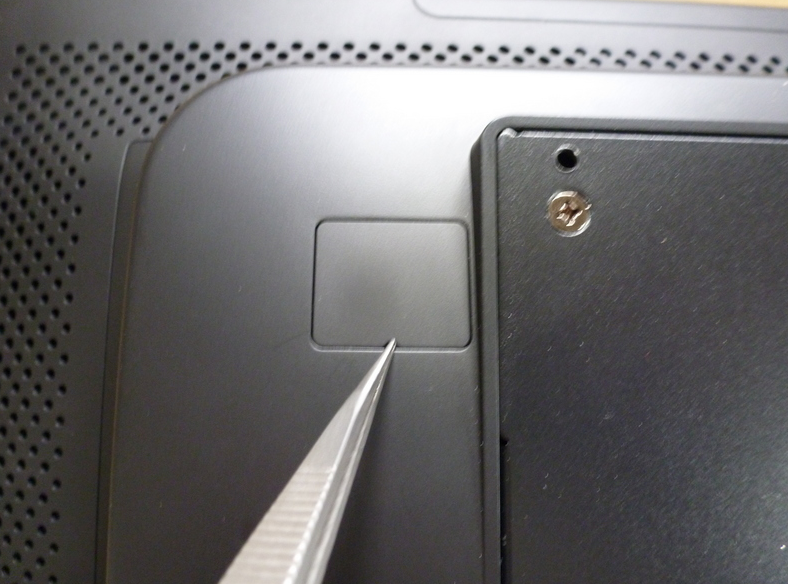

2. Use a small flat blade screwdriver or other object to insert into slot on door and lift up to remove.

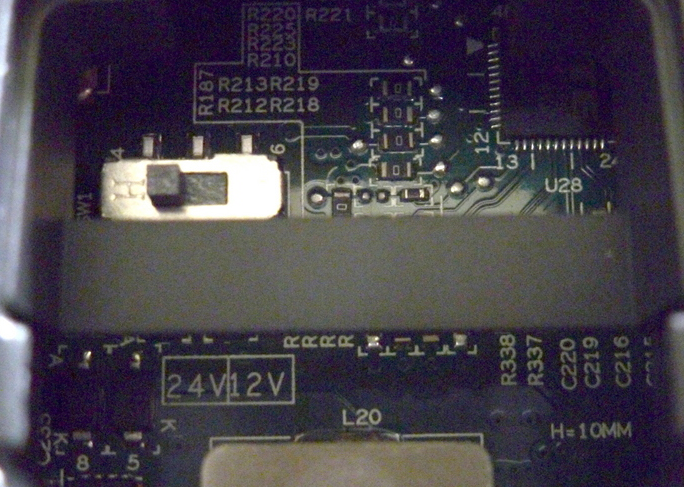

3. Move the switch to the desired position. Left is 24V, Right is 12V.
