What are the specifications on the EloPOS Cash Drawer?

This article provides the specifications for the EloPOS Cash Drawer

The EloPOS Cash Drawer Specifications are:

1. RJ-12 interface.
2. 12V/24VDC @1A (Tp = 200 ~ 300ms) 24V default; selectable by internal switch (See HERE for location of switch)

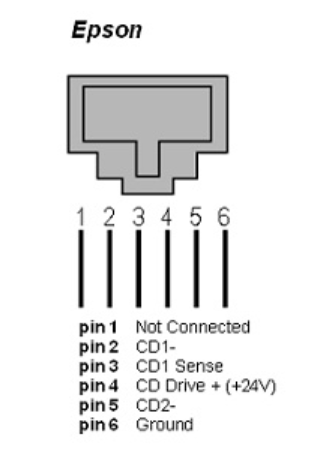

3. EPSON Pinout



For help setting up and testing the EloPOS Cash drawer, see What are the instructions to setup and test EloPOS Cash Drawer?
