This article details how to purchase a replacement power adapter for the legacy B-Series or C-Series touchcomputer

Below is power supply information for the legacy B-Series and C-Series AIO Touch Computers.

The original part number for the power adapter kit on the B and C Series AIO Touch Computers was: E409391: KIT, POWER BRICK 240W, ESYXX B/C-SERIES

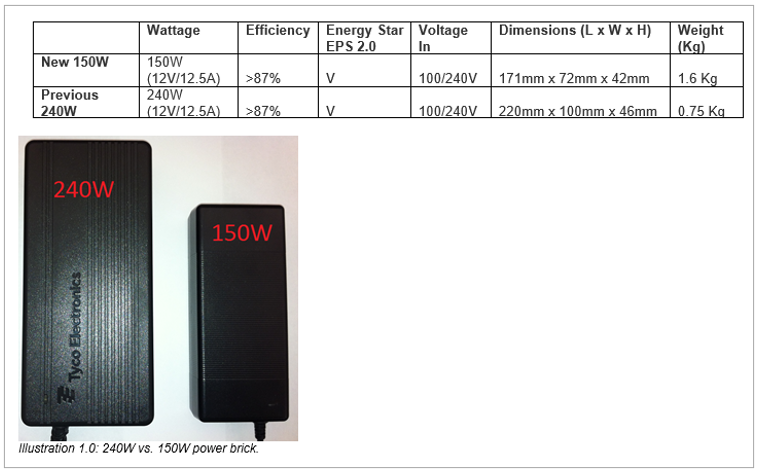

The above part was discontinued in 2012 and replaced with E806884, KIT, POWER BRICK 150W STANDARD,ESYXX BC. This was a smaller form factor power adapter and was more efficient, see below comparison:



In 2015, the above part was replaced with E454252: KIT, POWER BRICK 150W STANDARD,ESYXXC L6, which was even more efficient. This part was discontinued and became obsolete in 2019.

Elo no longer manufactures or sells any of the above mentioned power adapters. Some customers have been able to find re-furbished ones from various online sellers and from Ebay.

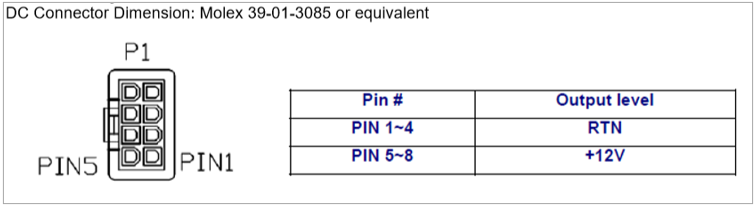

Below is a pinout of the power connector.
