This article provides information and instructions for installing the 2D barcode scanner, P/N: E926356

See below information for how to install the Elo 2D Barcode Scanner, Part Number: E926356

The 2D Barcode Scanner is designed to mount to Elo's 02-Series products which have edge connect ports that are micro USB. These scanners are not intended to be used on 3rd party products or other non-supported Elo products.

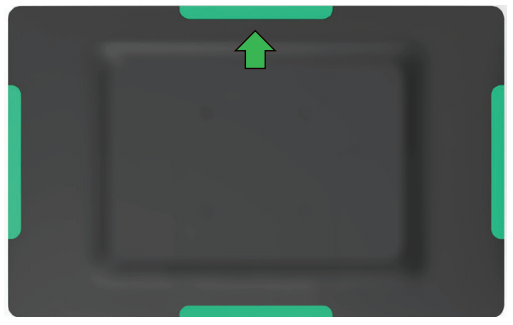

1. Select location to mount the bar code scanner. Elo recommends the lower location in either portrait or landscape orientation.

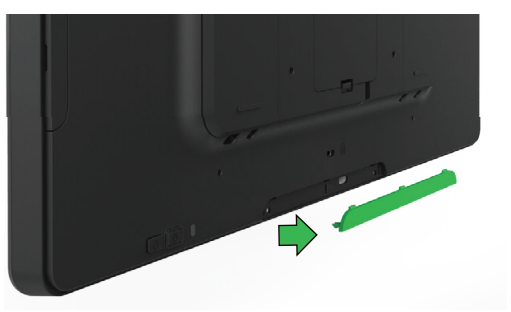

2. Remove the selected peripheral cover from the touchmonitor

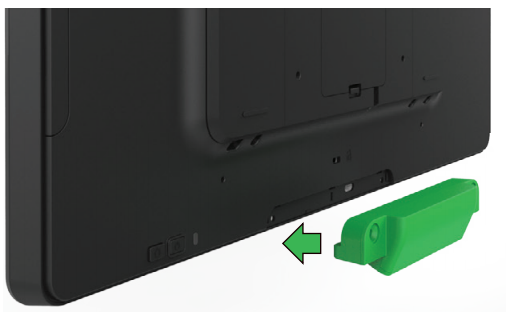

3. Gently insert the bar code scanner into the peripheral bay taking care to ensure the connector mates properly.

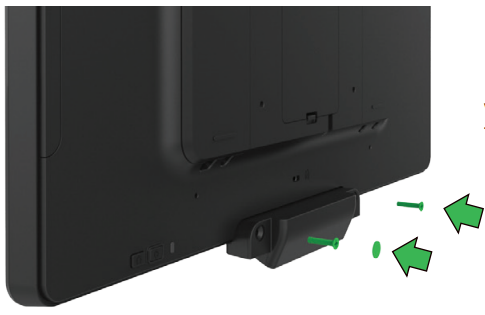

4. Install the 2 flat head screws included with the kit and cover the screws with the adhesive mylar covers if desired.



Windows Systems:
Visit the N3680 product page on the Honeywell website to download and install EZConfig for Scanning and Honeywell Scanning and Mobility USB Serial Driver

Android systems:
The Elo Barcode Scanner is ready to use in its default mode. The scanner default mode is:
1. USB virtual com port interface
2. Presentation mode (always on)
3. Beep on scan
4. Set up to read most common codes.



Please note: USB Keyboard Mode will automatically add a CR (carriage return) suffix.

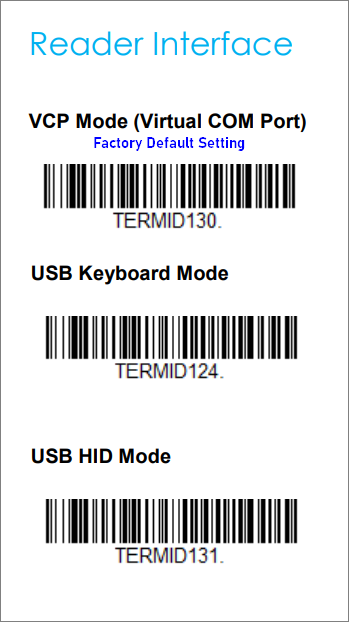

To return the scanner to the default configuration mode (USB Virtual COM Port), scan the Factory Default Barcode above, VCP MODE (VIRTUAL COMPORT) TERMID130

For additional settings and configurations, please visit the product page at: https://www.elotouch.com/accessories-2d-barcode-scanner-gen-1.html

Download the complete N3680 2D Scanner User's Guide HERE

See related article: Honeywell N3680 or 1st Generation 2D Barcode Scanner (E926356) General Setup Guide
