This article provides information about power brick kit P/N: E593661, Power Brick Kit - Adapter Only, 02-Series Desktop Monitors.

These power bricks are used with the 2202L, 2402L, and 2702L, desktop touch monitors.

Specifications

1. GENERAL DESCRIPTION

2.GENERAL SPEC

• Dimension 120mm (L) × 52.5mm (W) × 32.5mm (H) or 110mm (L) × 62.0mm (W) × 31.5mm (H)(without protrusion and cable）
• Weight Approximately 284g
• Plug 3pin (IEC60320-1 C14)
• Color Black
• Output DC cable
  • Length Approximately 1.8m
  • Cord 17AWG
  • Plug Outer φ5.5、Inner φ2.1

3. INPUT SPEC

• Voltage
  • Rating AC100-240V
  • Workable range    AC90-264V
• Frequency
  • Rating 50／60Hz
  • Workable range 47-63Hz
• AC input current  Max.1.7A

4. OUTPUT SPEC (POWER BRICK）

• Rating voltage DC12V
• Output current Max. 4.16A
• Ripple voltage Less than 300mVp-p (Under normal AC power input）

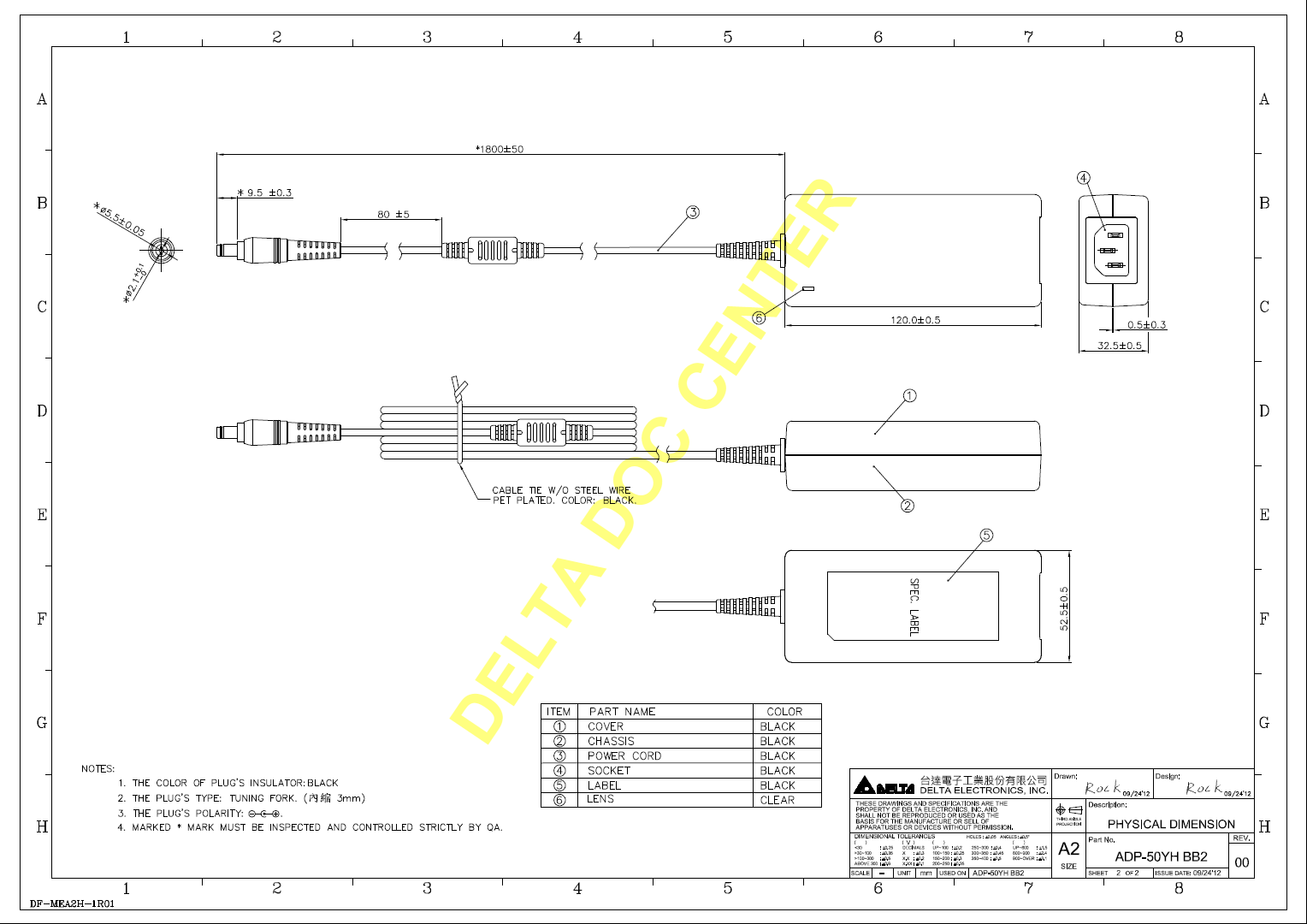

Drawing

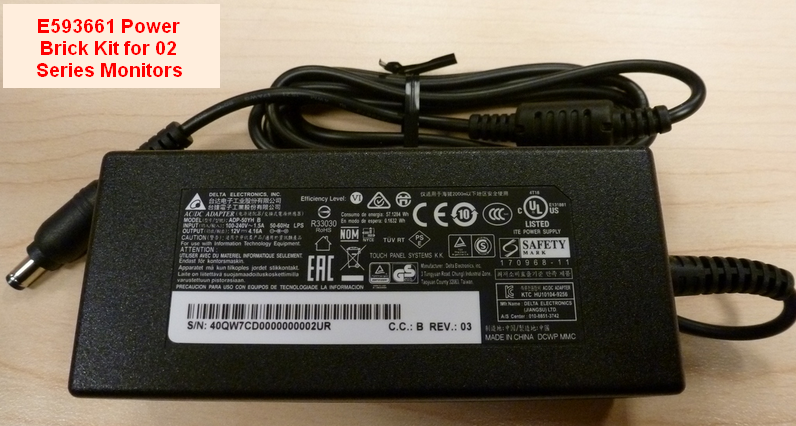

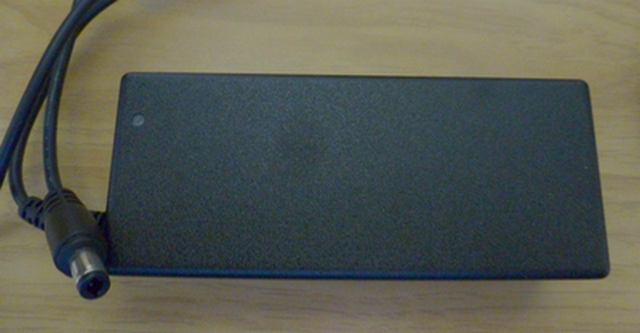

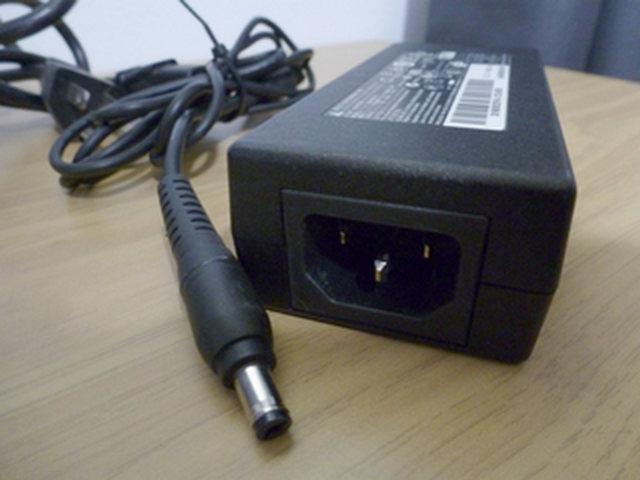

Photos
