Replacement Options for the Obsolete E448370 Medical Grade Power Adapter

Audience: Public / Elo Customers, Healthcare IT Administrators & Integrators

Article Type: Parts Replacement & Hardware Lifecycle Guide

The Elo E448370 Medical Grade Power Adapter is discontinued (end-of-life) and is no longer available for purchase directly from Elo. This article provides technical specifications, replacement sourcing options, and power cable requirements for maintaining legacy medical-grade installations.

Product Status & Third-Party Sourcing

Customers requiring direct replacements or medical-certified equivalents can source compatible power supplies from authorized healthcare equipment distributors, such as Ampronix.

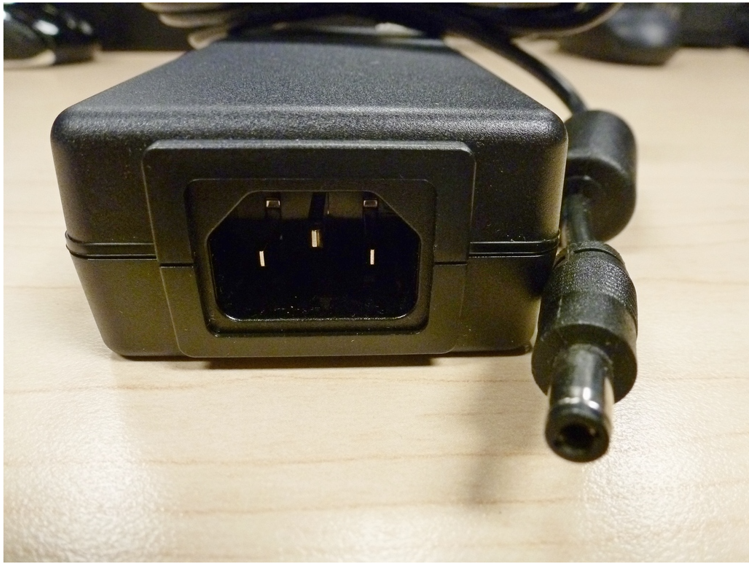

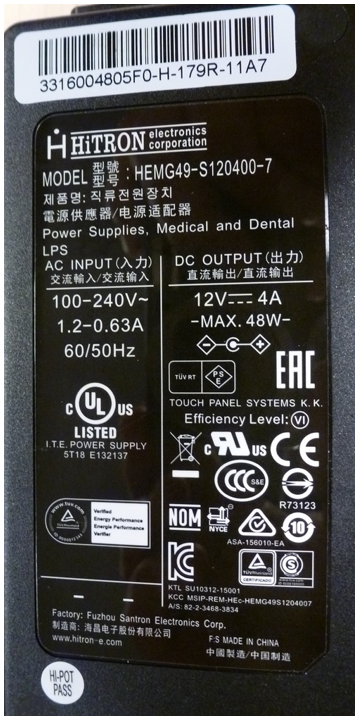

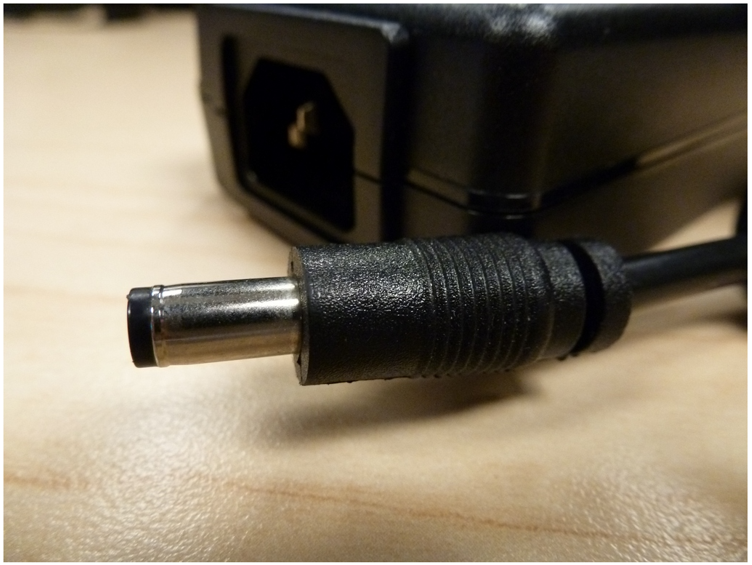

E448370 Power Adapter Visual Reference:

Medical Grade AC Power Cord Requirements

The power adapter brick utilizes a standard IEC 60320 C13 receptacle and requires a hospital-grade / medically approved AC power cord (e.g., NEMA 5-15P "Green Dot" Hospital Grade to IEC C13).

• Compatible hospital-grade cables can be sourced through vendors such as CDW (e.g., Tripp Lite Hospital-Grade 5-15P to C13 Power Cord).

Engineering Specifications & Dimensions

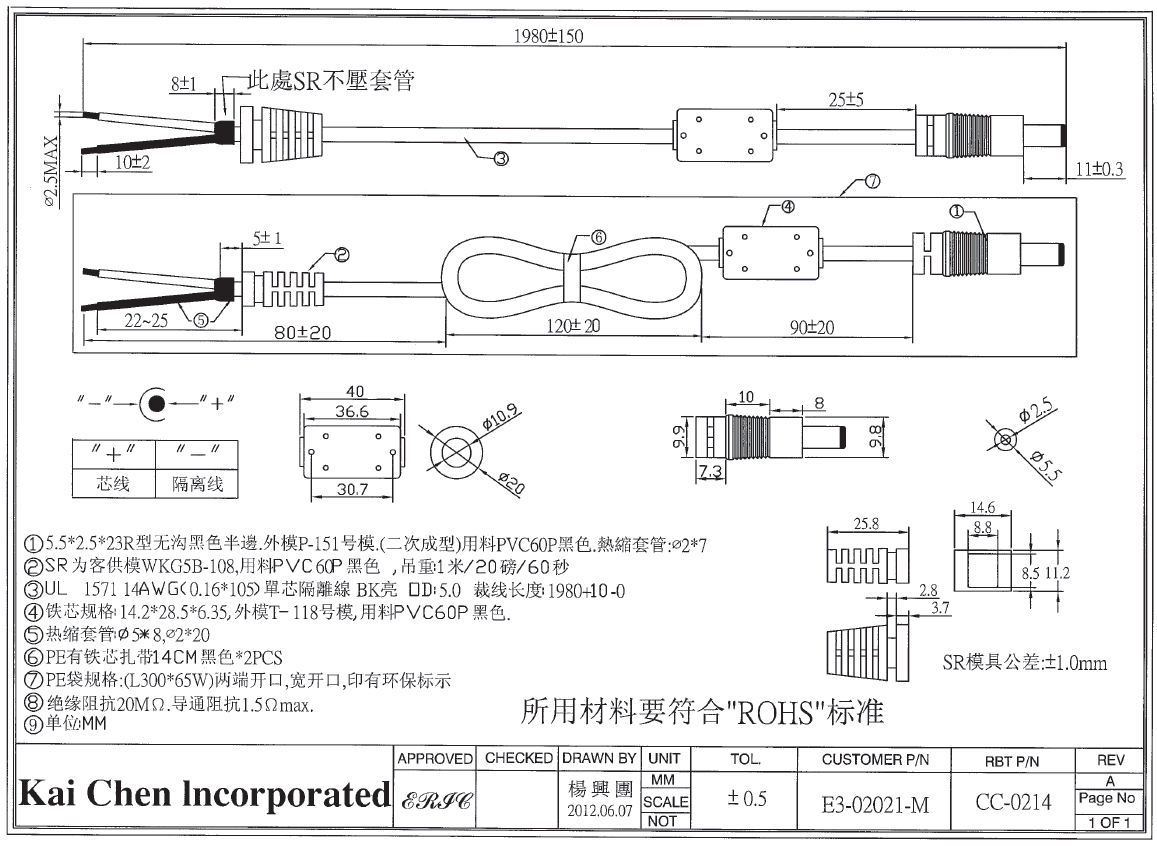

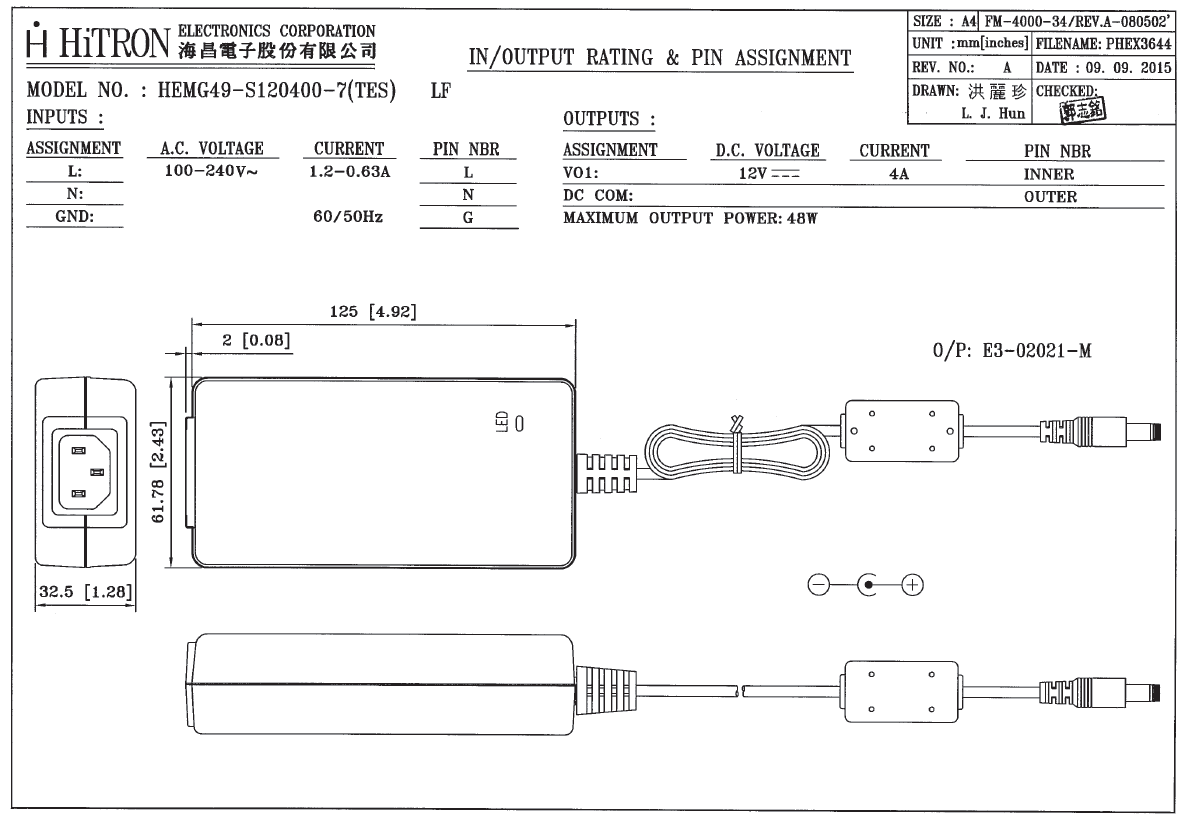

Reference the engineering specification drawings below for electrical input/output parameters, pinout configurations, and mechanical dimensions:
