This article explains how to Install an Elo Factory Image from USB Flash Drive on I-Series 3 with Intel AIO

The below steps describe how to install the Elo factory image from a prepared USB Flash Drive on an I-Series 3 with Intel AIO system.

This can be used in cases such as if you need to reinstall the factory operating system on your Elo AIO or to image Elo devices of the same model.

This knowledge article assumes you have already followed the steps in the knowledge article: How to Create a Factory Recovery Flash Drive on I-Series 3 Intel AIO System

Tools

• Prepared Elo Factory Recovery Flash Drive (required)
• Elo I-Series 3 with Intel AIO System (required)
• Physically connected USB keyboard (required)

Steps

• These steps can also be found in the I-Series 3 Intel User Manual

1. Insert the prepared USB Flash Drive into a USB port on the AIO system

2. Power on the AIO system

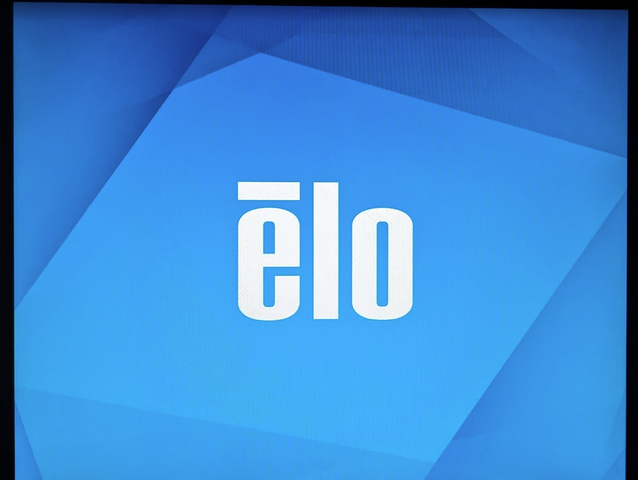

3. As AIO system begins booting, continually press F11 on the keyboard until the Device Boot Menu appears

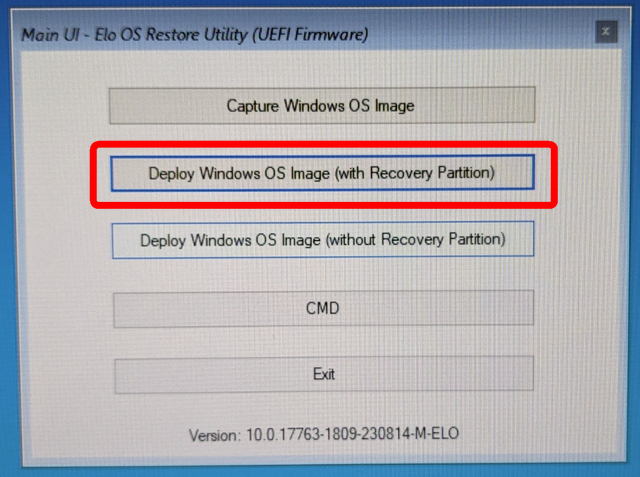

4.  Choose "Deploy Windows OS Image (with Recovery Partition)"

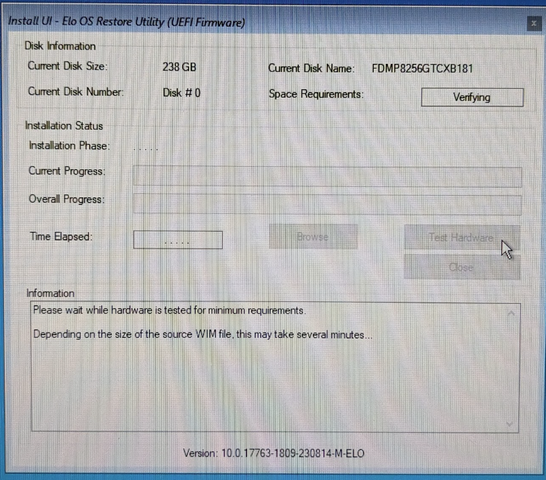

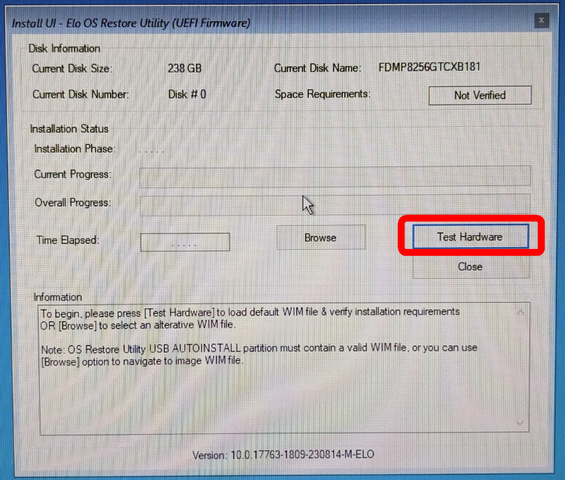

5. Choose "Test Hardware" the utility will then test the hardware to validate compatibility

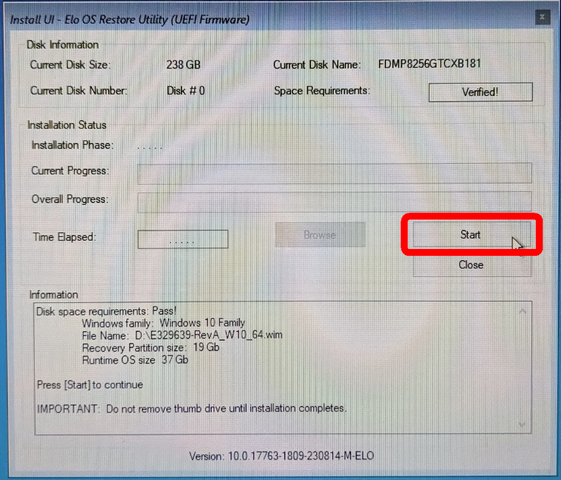

6. Choose "Start" to begin the imaging process

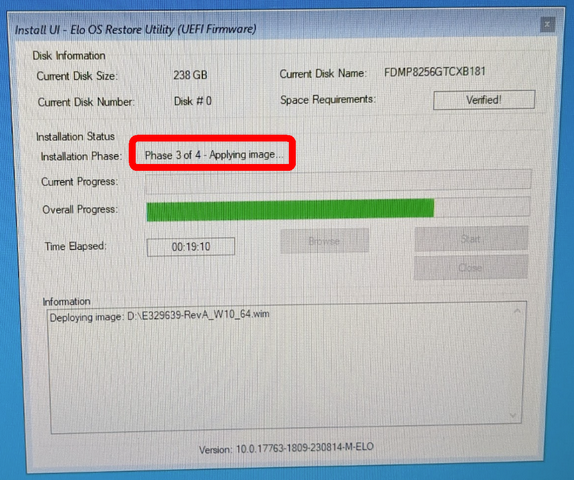

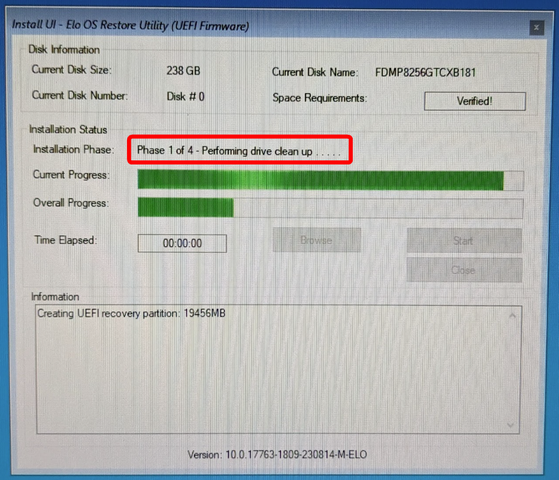

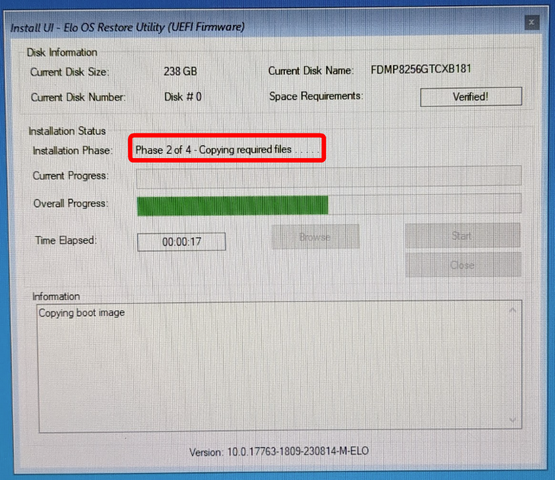

7. The installation will go through 4 phases

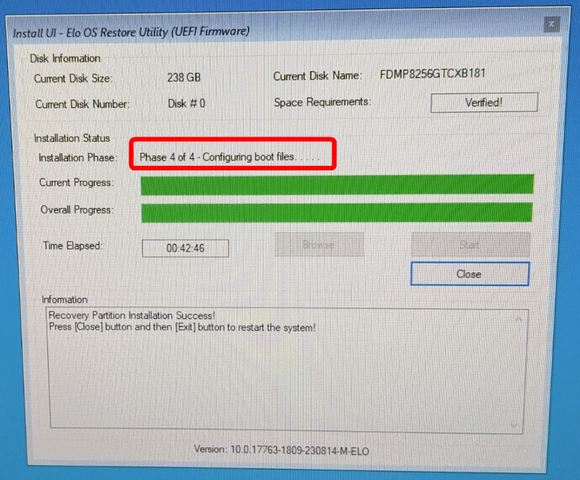

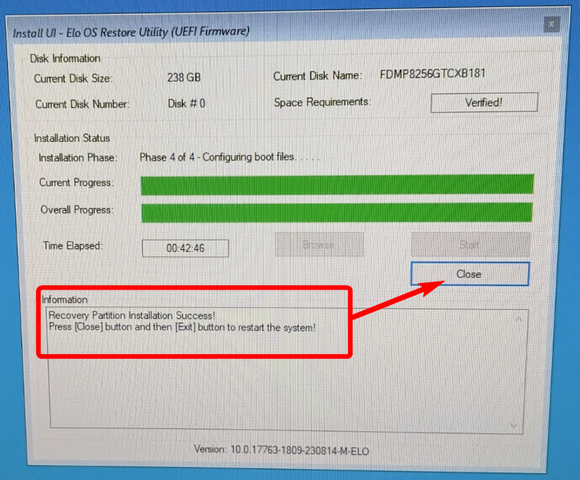

8. Click on "Close" when the message appears in the Information window: "Recovery Partition Installation Success! Presss (Close) button and then (Exit) button to restart the system!"

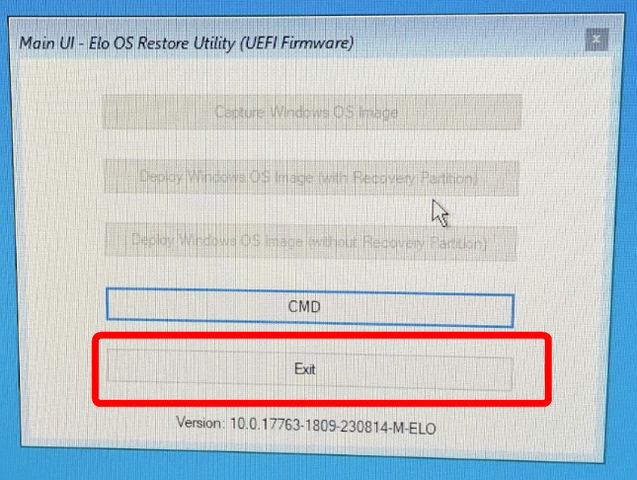

9. Remove the USB Flash drive and choose "Exit" to exit the utility



10. The system will reboot, the process is complete.
