How do I add or remove memory on an Elo I-Series 3 with Intel?

This article describes how to add or remove RAM (Memory) on Elo I-Series 3 with Intel Systems

Attention: This procedure is recommended to be undertaken exclusively by certified electronic specialists. We strongly advise against attempting it without prior experience in disassembling intricate electronic devices. It is advisable to procure systems with the desired RAM capacity pre-installed, rather than attempting to augment it post-purchase. Please note that any resultant damage to the product incurred during this process is not eligible for coverage under the manufacturer's warranty.

RAM Memory Specifications for I-Series 3 with Intel Systems

Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)
- NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.
i5 & i7: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)
- NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.

Memory Upgrade Kits from Elo

8GB 4800MHz DDR5 SO-DIMM – Elo P/N: E466053
16GB 4800MHz DDR5 SO-DIMM – Elo P/N: E466237
32GB 4800MHz DDR5 SO-DIMM – Elo P/N: E466430

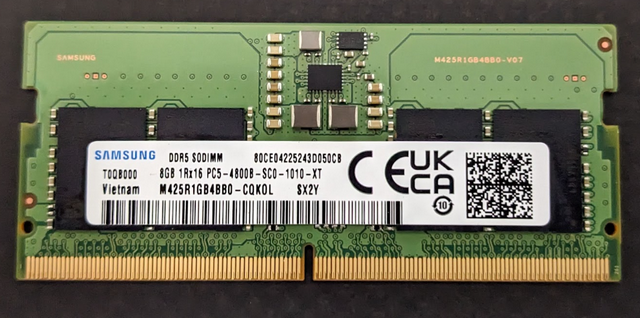

Hardware Required

Compatible Elo I-Series 3 with Intel System
Protective work surface
#2 Philips Screwdriver
Professional plastic prying tools (see example here)

Steps

(this procedure is being performed on the 22-Inch I-Series 3 with Intel)

1. Disconnect power and any connected cables from the I-Series and place unit face down on a protective work surface.

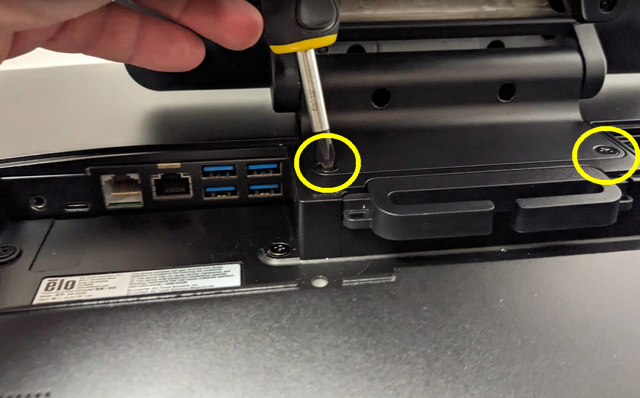

2. Remove the stand (if so equipped) by removing the two (2) Philips screws on the bottom of the VESA mount.

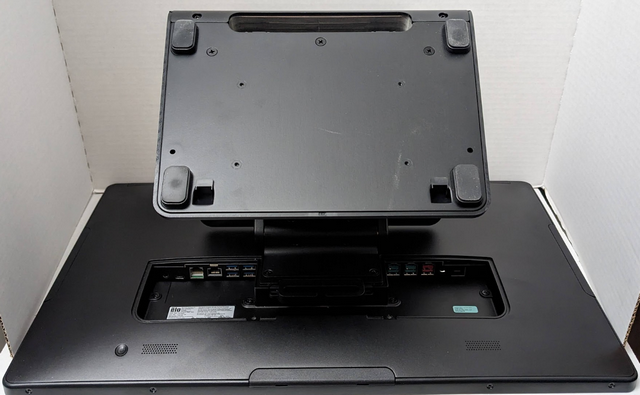

3. Lift stand up and away from the unit.

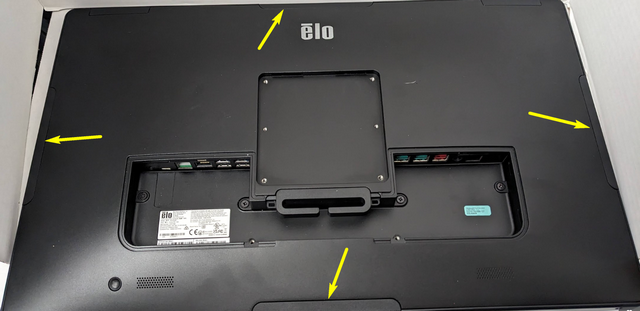

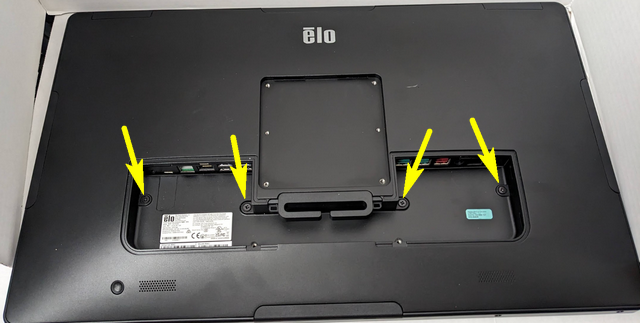

4. Remove the four (4) Philips screws indicated below.

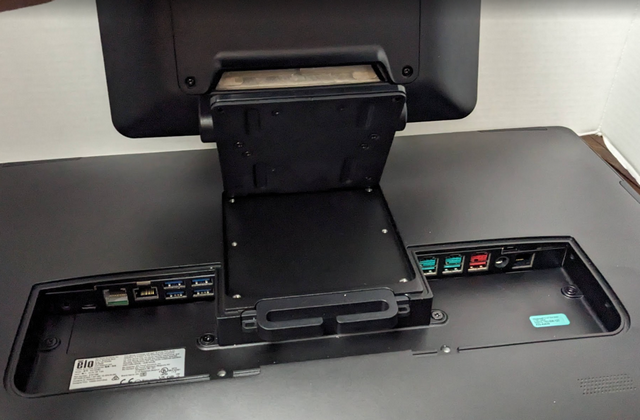

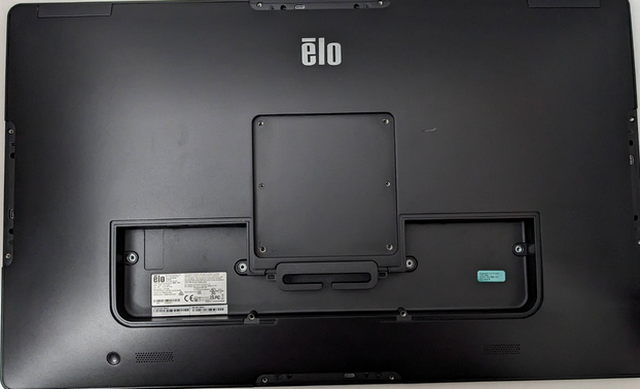

5. Remove the four (4) peripheral covers.

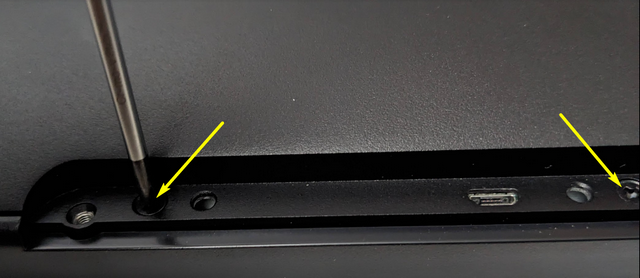

6. Remove the two (2) screws in each peripheral port, there will be eight (8) in total.

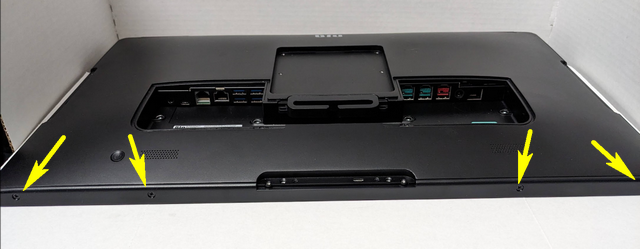

7. Remove the four (4) Philips screws on the bottom edge of the unit.

Note: On 15-Inch models, there will only be two (2) Philips screws on the bottom edge.

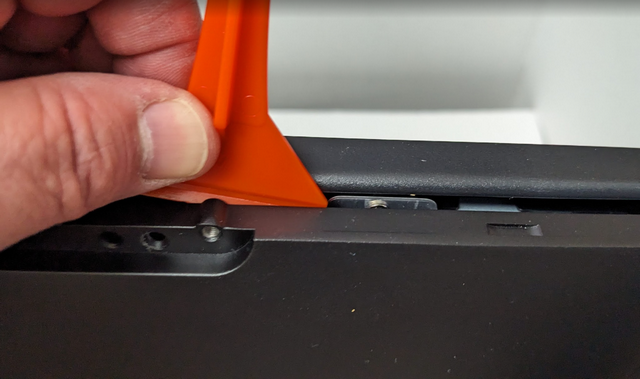

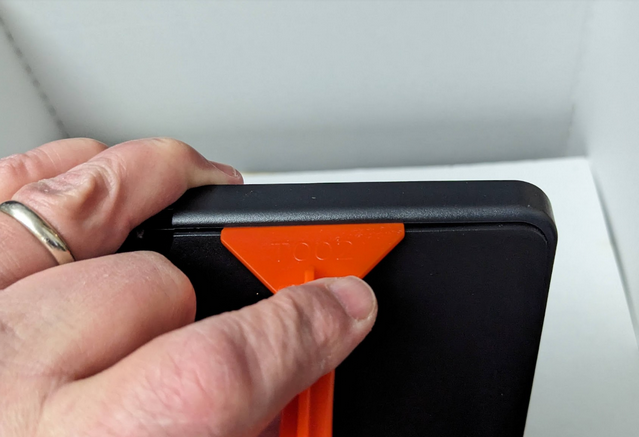

8. Using the professional plastic prying tool, pry the rear cover away from the front bezel. Start on one of the short edges and gently work your way around until rear separates from the front bezel.

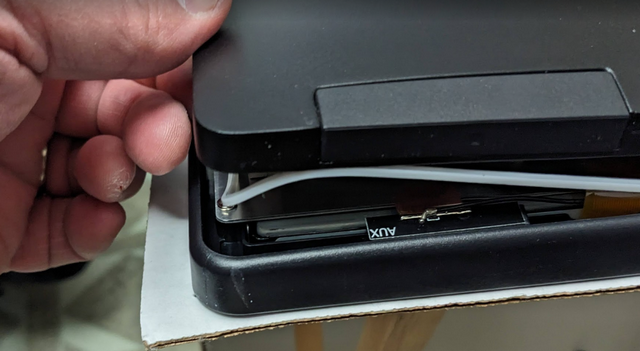

9. Lift rear cover up, paying close attention to the rubber sealing gasket. If rubber gasket begins to lift up, stop, and pull gasket back down into the proper position.

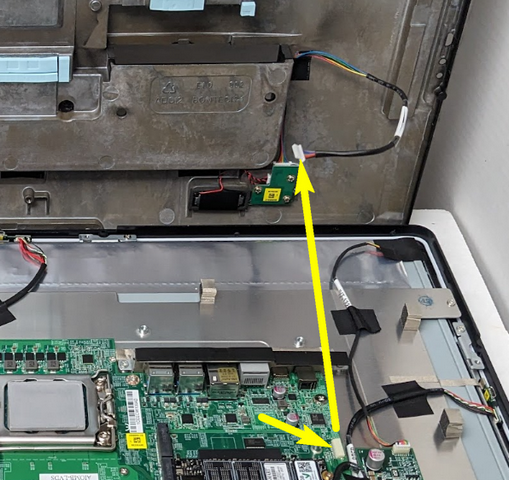

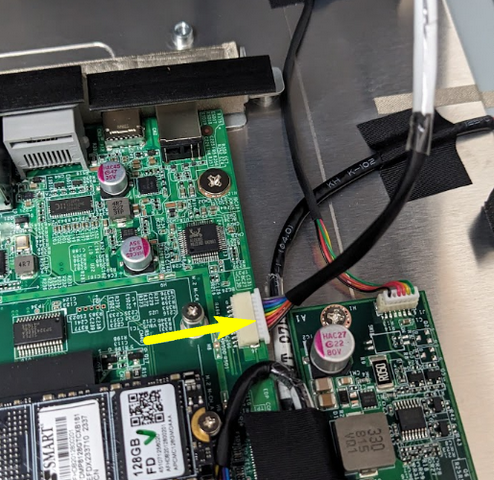

10. Carefully lift rear cover away. Pay attention to the wire connection! Carefully disconnect wire connector from board.

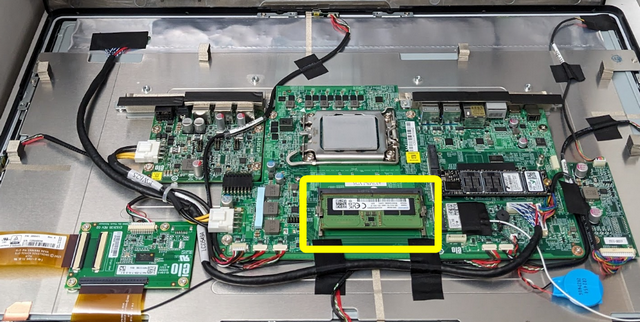

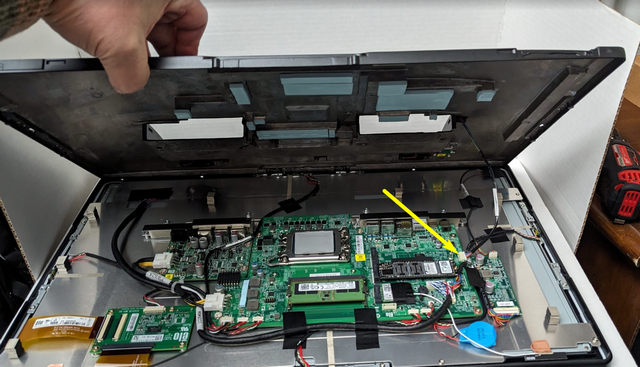

11. The RAM (Memory Module) is located in center top of circuit board.

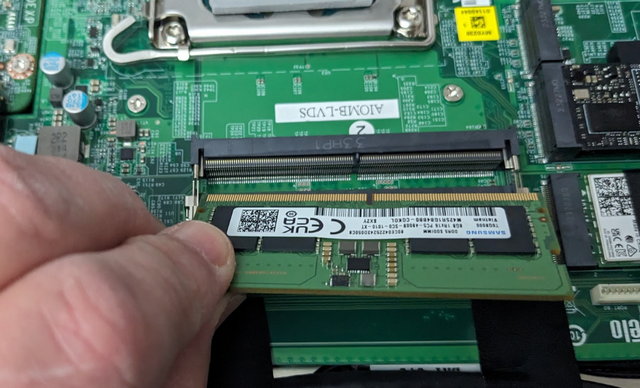

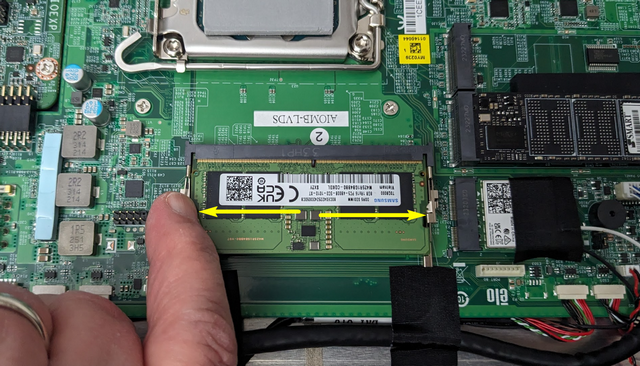

12. Push RAM retaining tabs outward to release memory module.

13. Replace/Add with compatible RAM.
