This article provides information for Elo P/N: E572635, 90W Power Brick Kit.

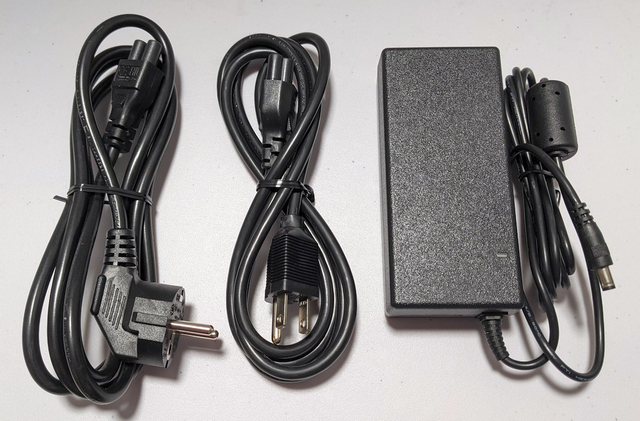

Kit Contents:

• 1 x Billion Power Brick, BA090-190474MBX, 19V 4740mA
• 1 x North American AC Power Cable IEC-C5
• 1 x European AC Power Cable IEC-C5

Specifications:

• Input Voltage
  • Operation Range: 100 -240 VAC
  • Designing Range：90 – 264 VAC

• Input Line Frequency
  • Operation Range：50 - 60 Hz
  • Designing Range：47 – 63 Hz

• Input Current
  • The maximum input current is measured at Full load 2.0 A with 230 Vac voltage conditions.

• Inrush Current
  • 120A Max. less under 230 Vac conditions. Interruption of the input voltage for duration sufficient to cause the output voltage to drop below the regulation setting shall cause reactivation of in rush limiting capability. Full-load 25 ℃ cold start.

• Power Consumption
  • The power supply consumption less than 0.21 watt at rated 115/230 VAC input Voltage conditions.

• Rated Voltage
  • The rated output voltage is specified at 19V

• Voltage Range
  • The output voltage will be performed 18.05 ~ 19.95V when the load is 0A ~ 4.74A steadily.

• Current
• This adapter can work from 0A to 4.74A

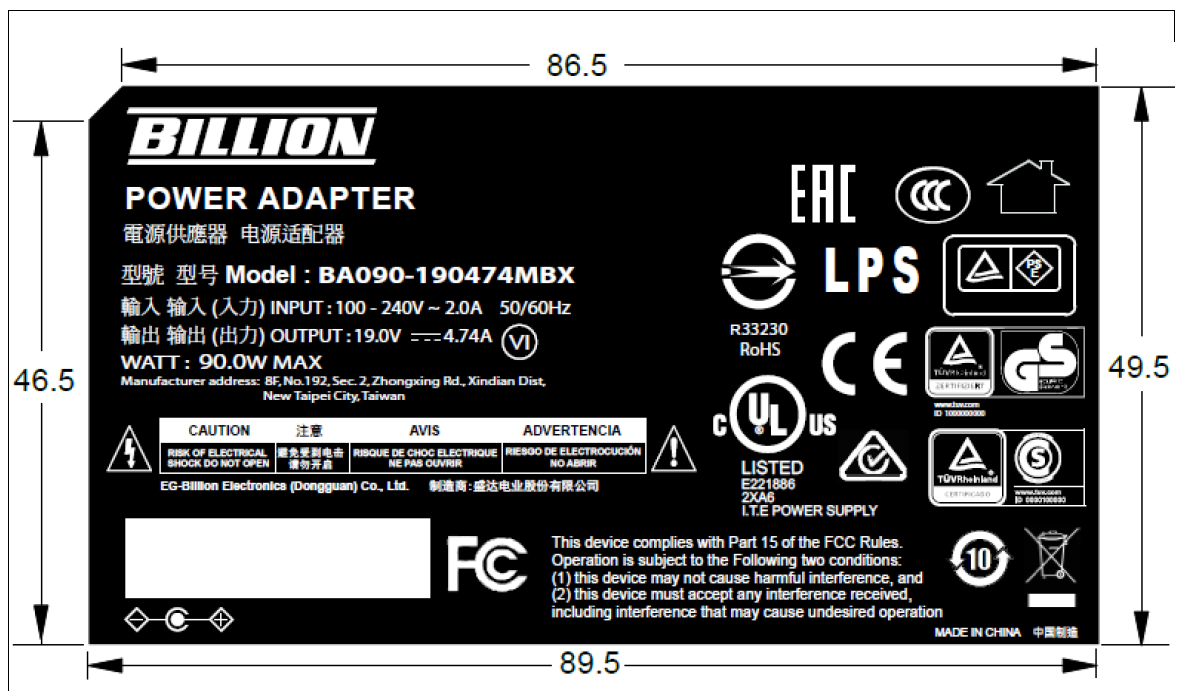

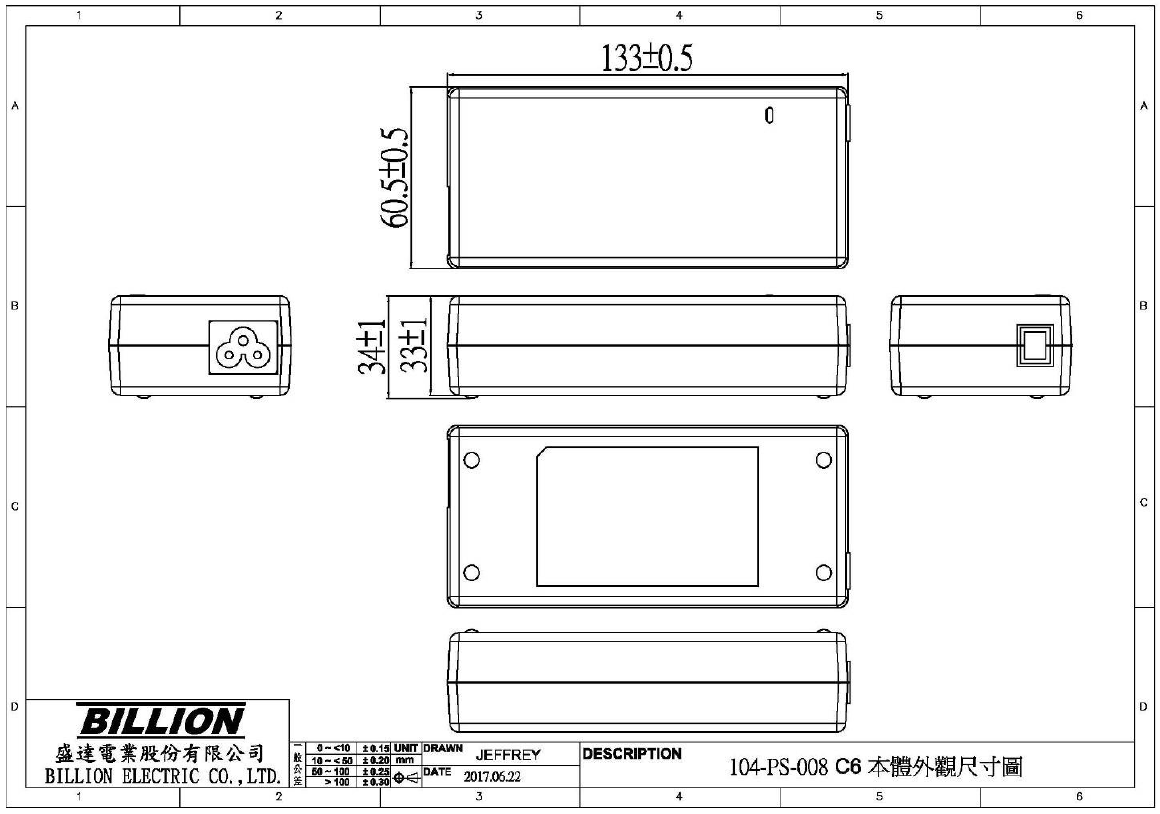

Drawing:

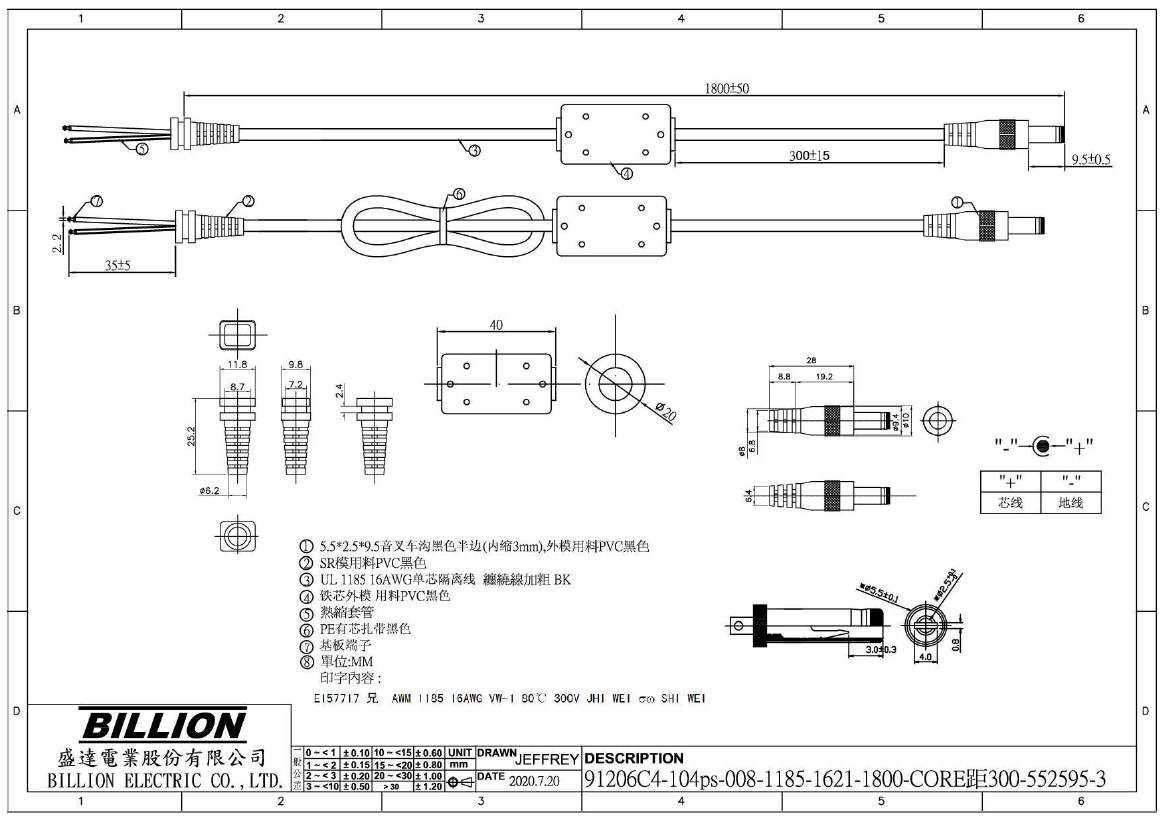

•  DC Connector Dimension: OD= 5.5mm, ID= 2.5mm, Length= 9.5mm

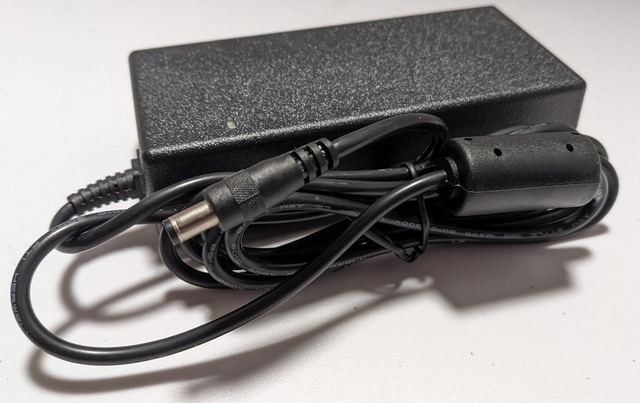

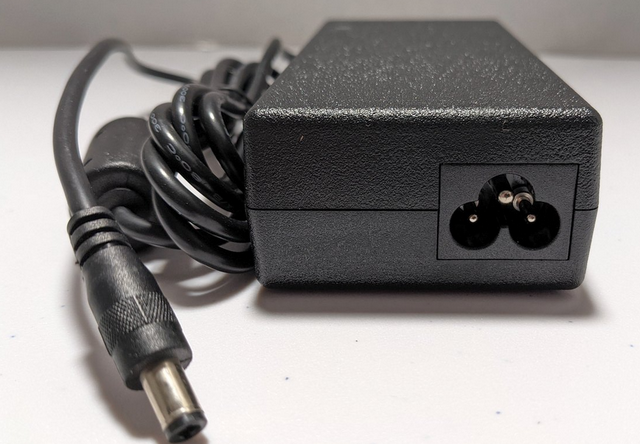

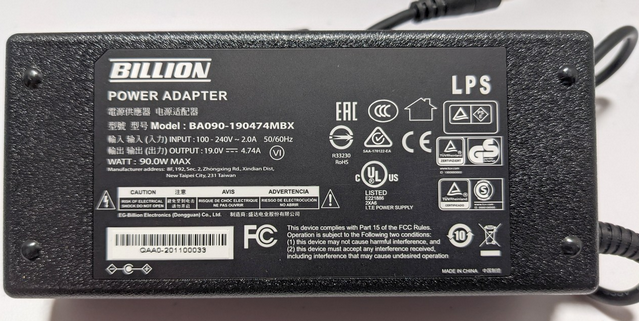

Photos:
