This article provides information about E511572 – Delta Power Brick, 24V 180W (ADP-180WB BC)

This power brick is sold in Elo Power Brick Kit: E845269 and is used on Elo I-Series 3 with Intel, E-Series 3, and EloPOS Systems.

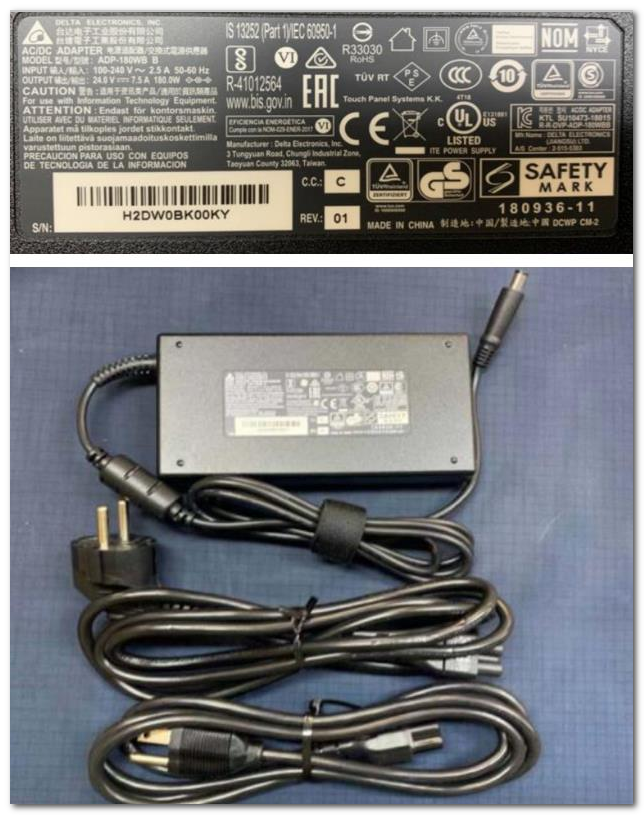

Photos:

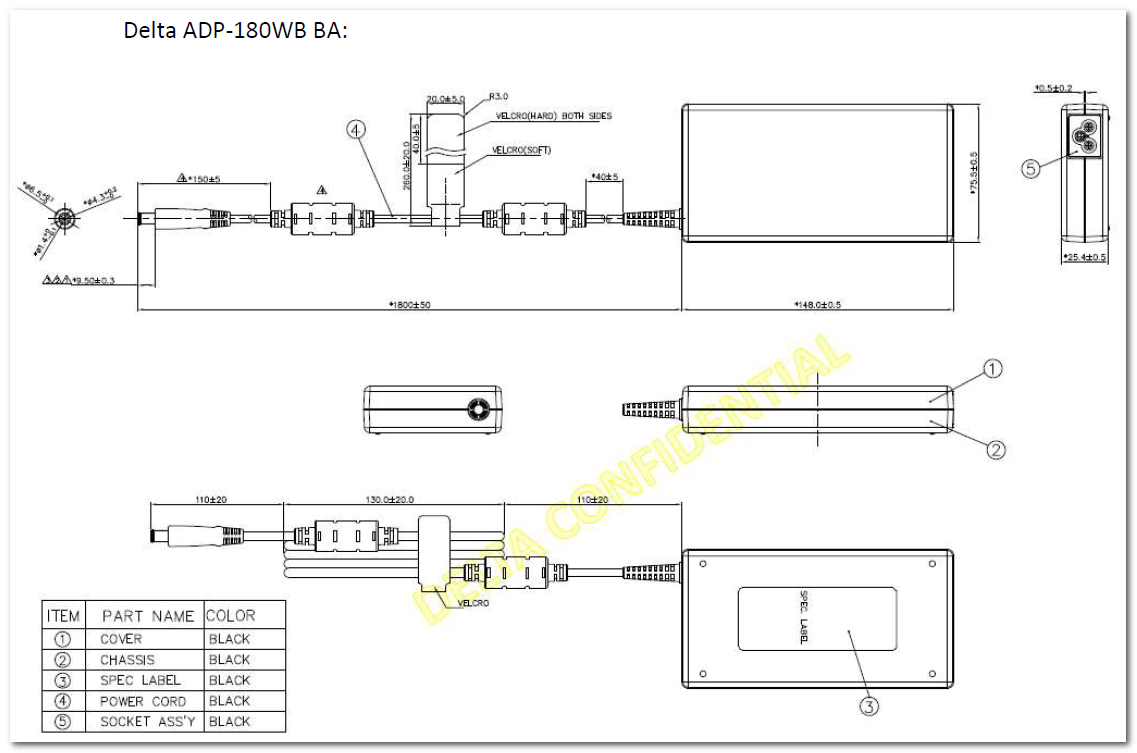

Drawings:



Power Adapter Specifications

1. AC Input Characteristics:

• 1.1 Input Rated Voltage 100Vac / 240Vac
• 1.2 Input Voltage Range Continuously 90Vac to 264Vac
• 1.3.Input Frequency Range Continuously 47Hz to 63Hz
• 1.4 Input Current 100Vac/50Hz, full load  <3a></3a>
• 1.5 Inrush Current: Inrush peak current and Joule integral will be measured at different line voltage at low ambient temperature. <29% i2t="I2T" fuse="Fuse" &="&" bd="BD" at="at" 25℃="25℃" cold="cold" start="start"></29%>
• 1.6 Efficiency: Average efficiency at loads of 25-50-75 and 100% load at 115Vac/60Hz & 230Vac/50Hz   89%
• 1.7 Power Saving Requirement
  • 115Vac/no-load <0.15w></0.15w>
  • 230Vac/no-load <0.15w></0.15w>
• 1.8 Power Factor(PF) (EN-61000-3-2) 230Vac/50Hz, full load 0.9

2. DC Output Characteristics:

• 2.1 Output Rated Voltage Measured at the end of DC cable 24V
• 2.2 Output Current At constant voltage mode 0A to 7.5A
• 2.3 Output Voltage Range 0A to 7.5A output at DC cable end 24V±5%
• 2.4 Output Voltage Ripple and Noise: (0.1uF Ceramic Cap. And 47uF Aluminum Cap. Paralleled between the end of output cable )
  • 90Vac / 0~7.5A <380mvp-p></380mvp-p>
  • 264Vac / 0~7.5A <380mvp-p></380mvp-p>
• 2.5 Output/Under Overshoot Voltage: 100Vac/240Vac, 0A~7.5A Vo:24V±10%
• 2.6 Turn-On Delay Time: 100Vac/240Vac, 0A~7.5A  <3s.></3s.>
• 2.7 Hold-Up time 100Vac/240Vac, 7.5A ≧10ms
• 2.8 Rise time 100Vac/240Vac, 0A~7.5A from 10% to 90% of Vo ≦100ms

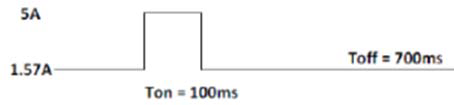

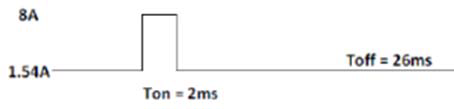

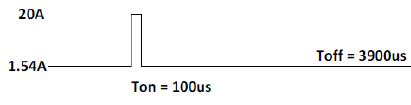

• 2.9 Dynamic Load Change: slew rate : 20mA/us Vo:24V±10%




.



AC Inlet type:

• Socket C6 type

DC Cable:

• TYPE: UL 11352 16AWG
• LENGTH: 1800 mm

DC Connector Dimension:

• MODEL NAME: ADP-180WB BA
• PLUG TYPE: JEITA RC-5320A TYPE B VOLTAGE CALSSIFICATION 5: 6.5x1.4x9.5
