This article provides information about E167926 – Billion Power Brick, 24V 180W (BS180-240750MBXE0A1)

This power brick is sold in Elo Power Brick Kit: E845269 and is used on Elo I-Series 3 with Intel, E-Series 3, and EloPOS Systems.

Photos:

Drawing:

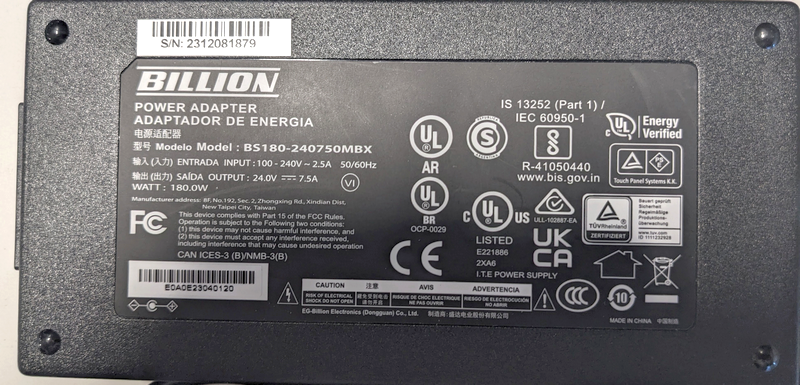

Label:

Specifications:

Dimension and Configuration

• Weight: 396g
• Input Pin: Desktop 3PIN / C6
• Dimensions: 152.3 × 75.6 × 26.4 mm
• Output Connector: Ø 6.5 × 4.3 × 1.4 mm (Center PIN) × 9.5 mm, 180°
• Unit Color: Black
• Polarity: Center "+"
• Plastic Rating: 94V-0
• Cable: UL11352/1866, 16AWG/1C, Length: 1.8M
• EMI Core: 14.2 × 28.5 × 6.35 mm

Input Requirements

• Input Voltage

  • Operating Range: 100.0 - 240.0 VAC
  • Designing Range: 90.0 - 264.0 VAC

• Input Line Frequency

  • Operating Range: 50.0 - 60.0 Hz
  • Designing Range: 47.0 - 63.0 Hz

• Input Current

  • The maximum input current is measured at full load (2.5 A) under 100.0 VAC voltage conditions.

• Inrush Current

  • <29% 230="230" i²t="I²T" fuse="Fuse" &="&" bd,="BD," with="with" less="less" under="under" vac="VAC" conditions="conditions"></29%>
  • Full-load, 25°C cold start inrush current ≤120A/8.3ms

• Power Consumption

  • Power supply consumption is less than 0.21 watts at rated 115.0/230.0 VAC input voltage conditions.

• Efficiency

  • Must provide an average efficiency when measured at 25%, 50%, 75%, and 100% load under 115.0/230.0 VAC (60/50Hz) conditions after a 30-minute burn-in period.

Output Rating Voltage

• DC Output Voltage: 24.0V
• Voltage Regulation Range: 22.8V - 25.2V
• Load (A):
  • Minimum: 0.0A
  • Maximum: 7.5A
  • Peak: 20A
