Bienvenido al Soporte de Elo

Controladores, información de productos, respuestas técnicas y más.

¿Dónde puedo encontrar el P/N: E323104 Dibujo de Fuente de Alimentación y Especificaciones de Potencia?

Este artículo proporciona más información sobre P/N: E323104 Dibujo de Suministro de Energía y Especificaciones de Energía

El Dibujo de Suministro de Energía E323104 y las Especificaciones de Energía se muestran a continuación.

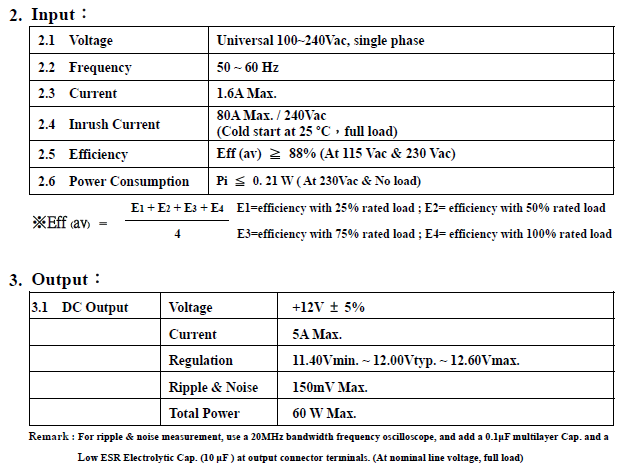

Especificaciones de Energía

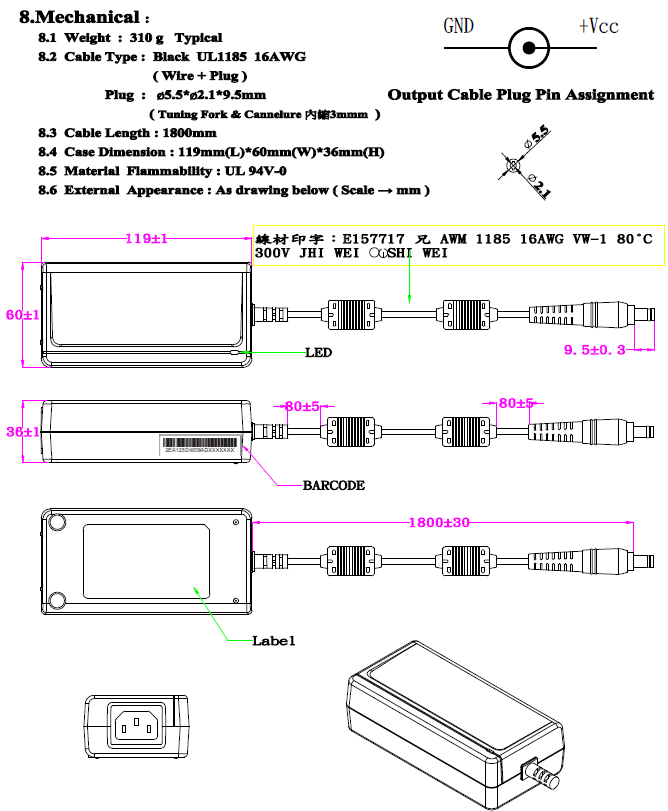

Dibujos
