¿Dónde puedo encontrar información sobre E181106, Adaptador de corriente para monitor médico 1502LM?

Este artículo proporciona más información sobre Elo P/N: E181106, Adaptador de corriente para el 1502LM

A continuación se presenta información para Elo P/N: E181106, Adaptador de corriente de 60W para el Monitor Médico ET1502LM.

Número de parte & Descripción

  • E181106: Elo-Pwr-Adapt-1502LM-60W
  • Kit de Adaptador de Corriente Elo - Solo Adaptador de 60W, Monitor Médico de la Serie 02LM

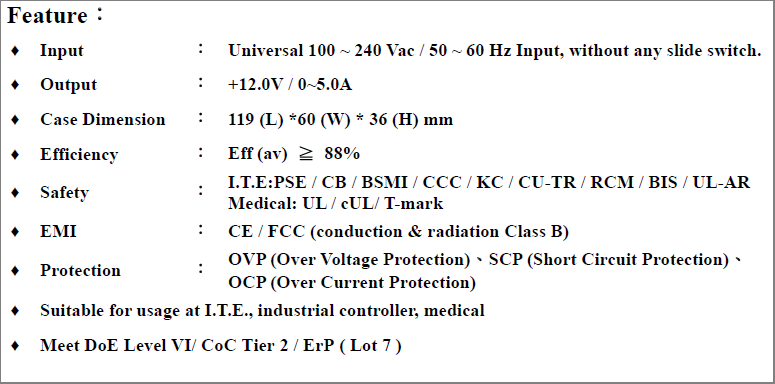

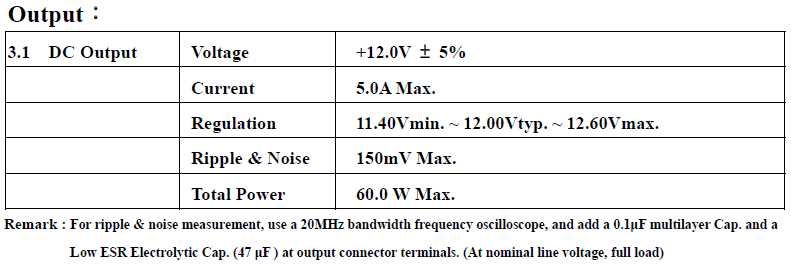

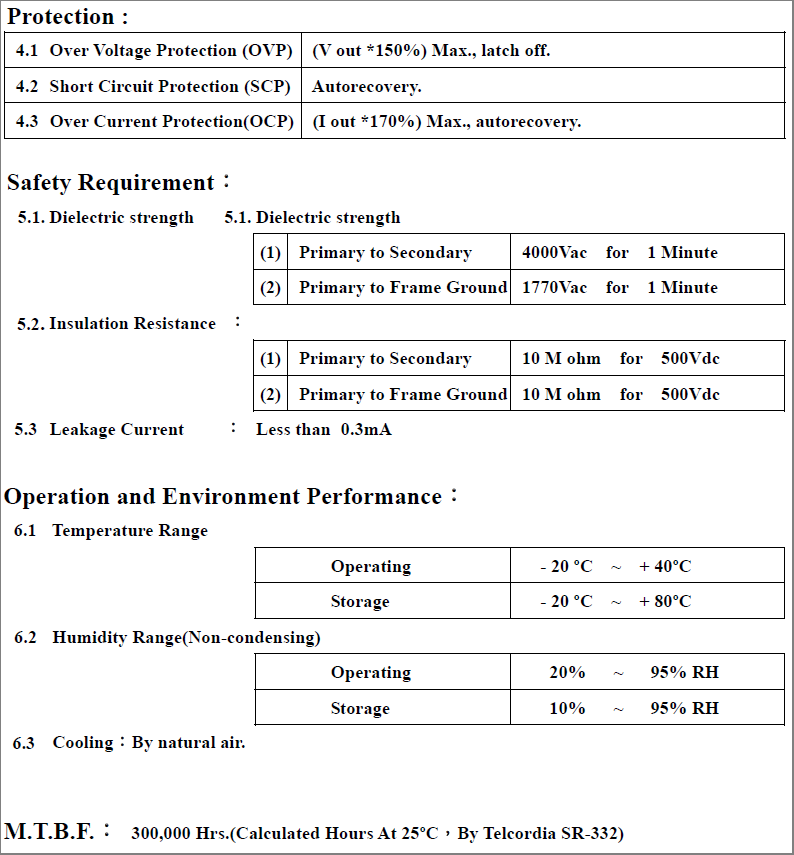

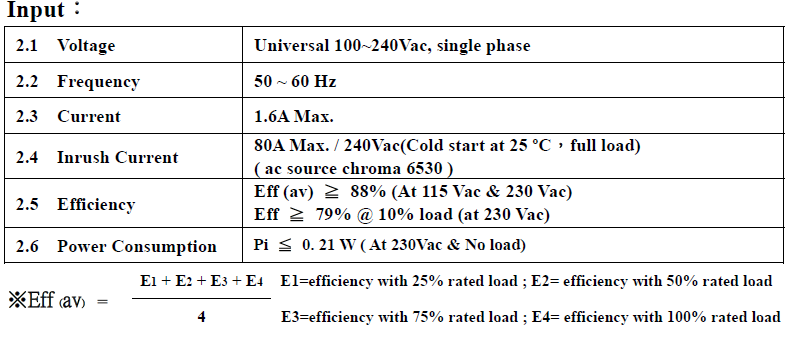

Especificaciones

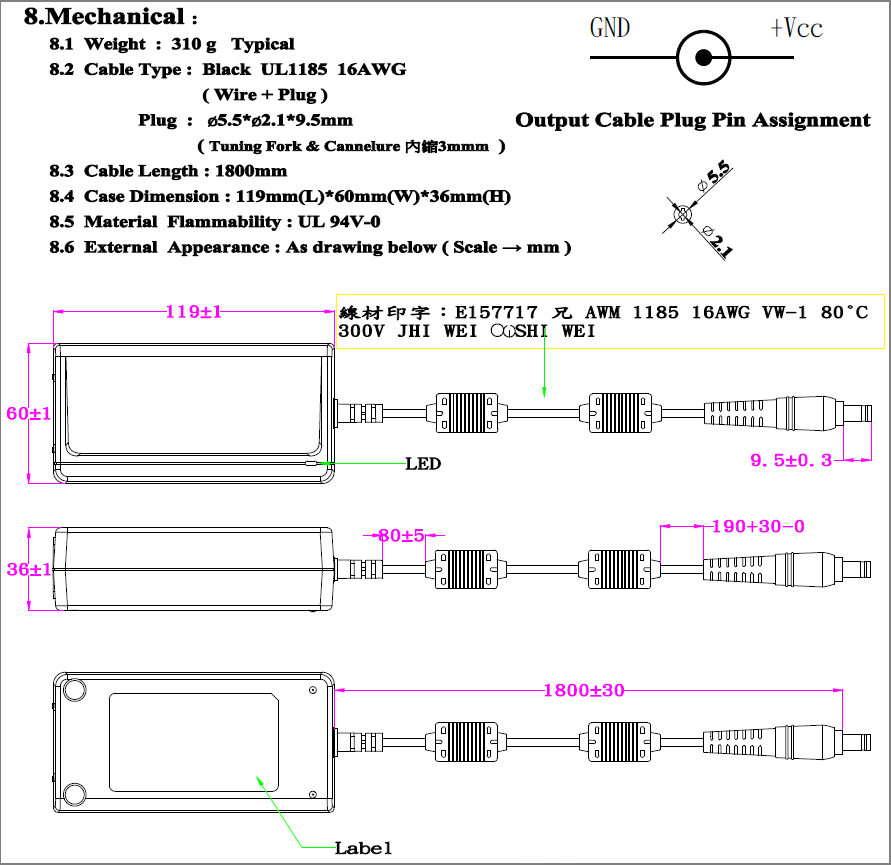

Dibujo

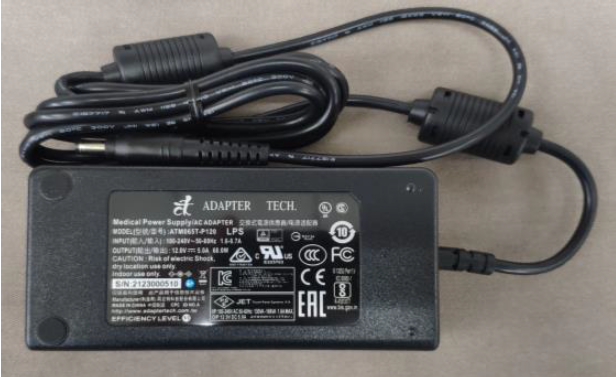

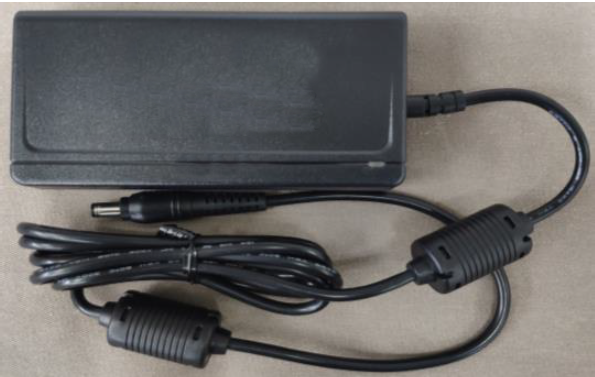

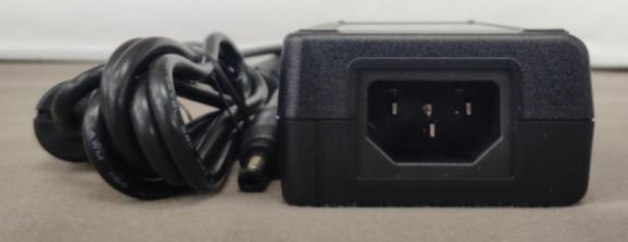

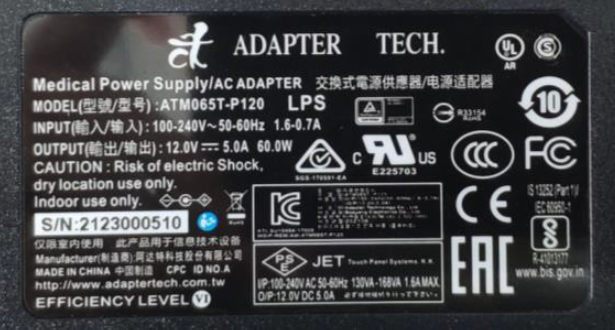

Fotos
