Bienvenido al Soporte de Elo

Controladores, información de productos, respuestas técnicas y más.

¿Dónde puedo encontrar información sobre E395340, Power Brick Kit para 15E2 AIO (Obsoleto)?

Este artículo proporciona más información sobre Elo P/N: E395340, Kit de Power Brick para 15E2 AIO

A continuación se presenta información sobre el kit de power brick P/N: E395340 para el sistema 15E2 AIO.
Este kit de power brick utiliza el power brick P/N: E001429. Esta parte ahora es obsoleta y ya no está disponible.

Especificaciones

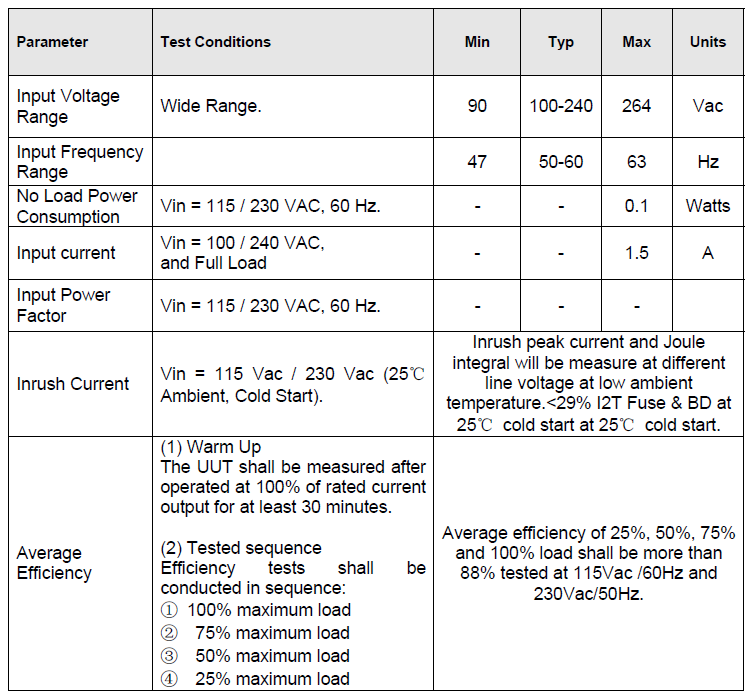

  • Entrada

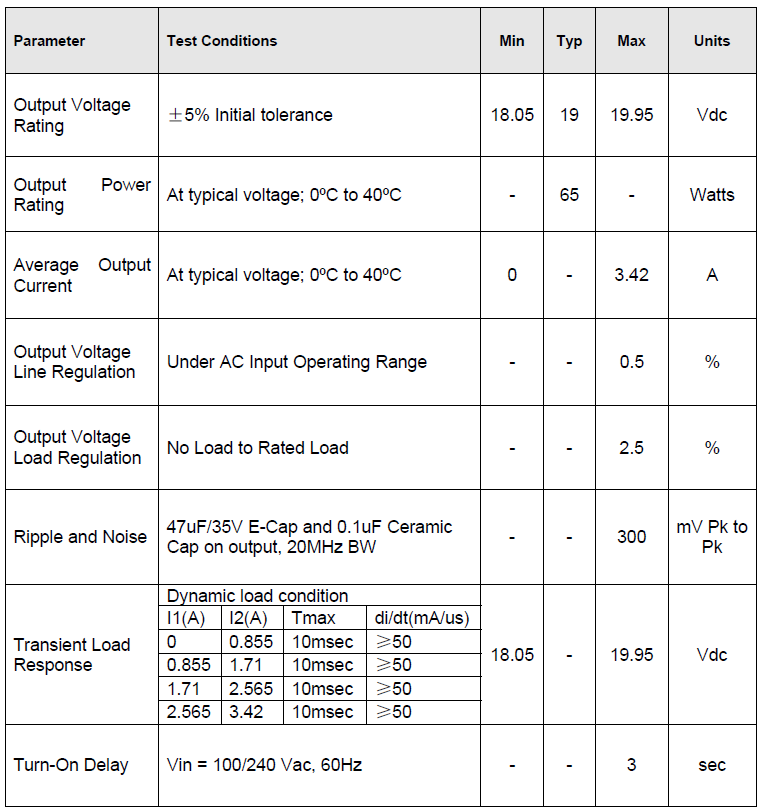

  • Salida

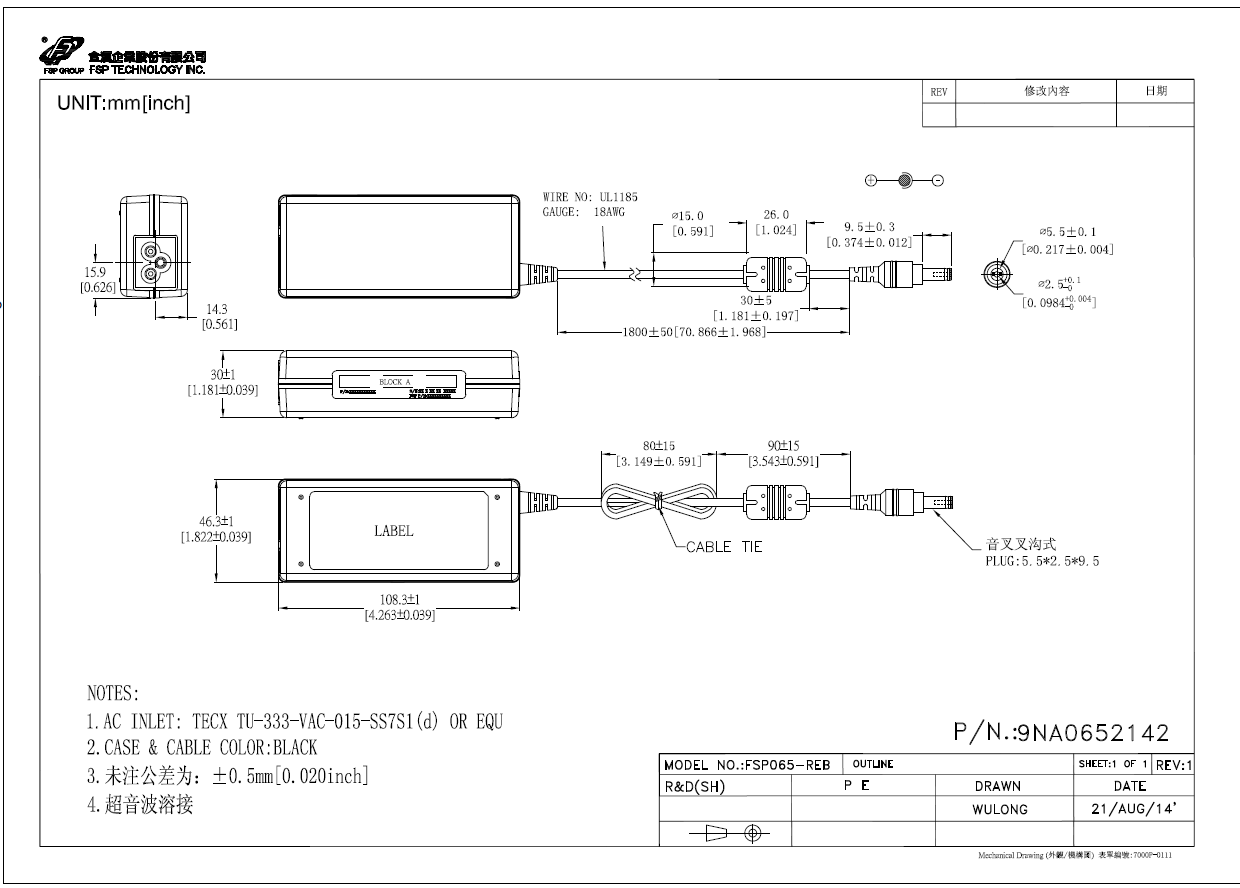

  • Dibujo



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
