P/N: E323104の電源図面と電源仕様はどこで見つけられますか？

この記事では、P/N: E323104 電源図面および電力仕様についての詳細情報を提供します

E323104 電源図面および電力仕様は以下に示されています。

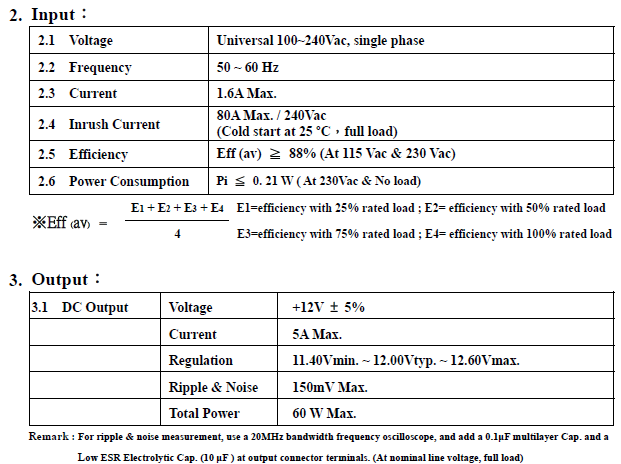

電力仕様

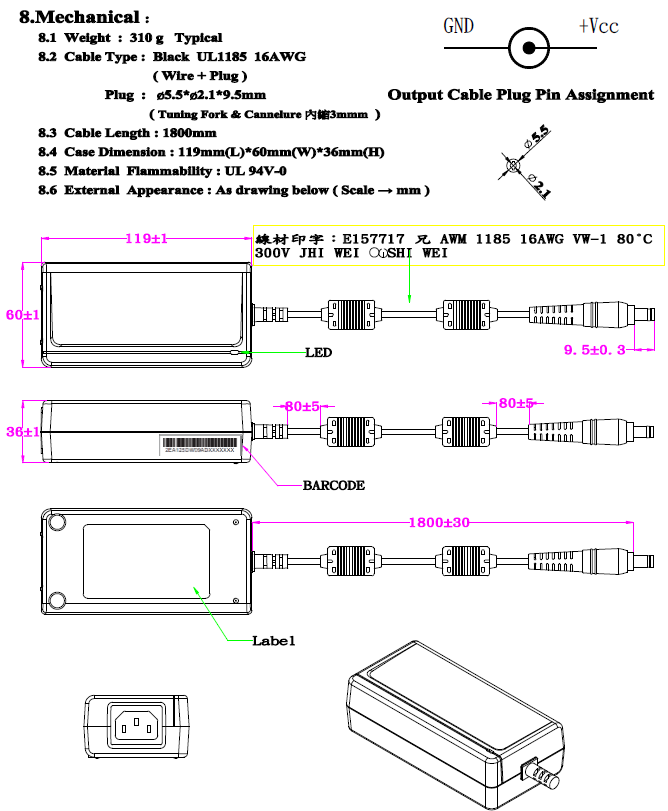

図面
