E181106、1502LM医療モニター用電源アダプターに関する情報はどこで見つけられますか？

この記事はElo P/N: E181106、1502LM用電源アダプタに関する詳細情報を提供します

以下はElo P/N: E181106、ET1502LM医療モニタ用60W電源アダプタに関する情報です。

部品番号および説明

  • E181106: Elo-Pwr-Adapt-1502LM-60W
  • Eloパワーブリックキット - 60Wアダプタのみ、02LMシリーズ医療モニタ

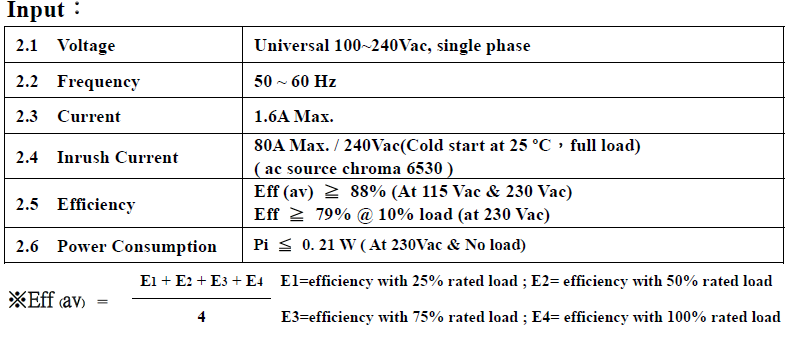

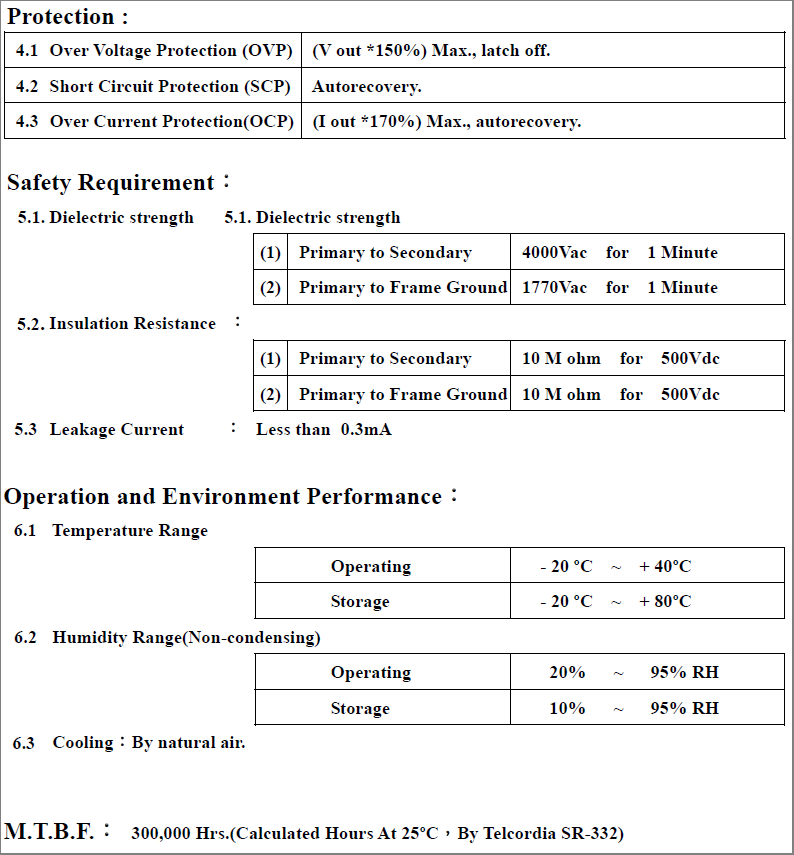

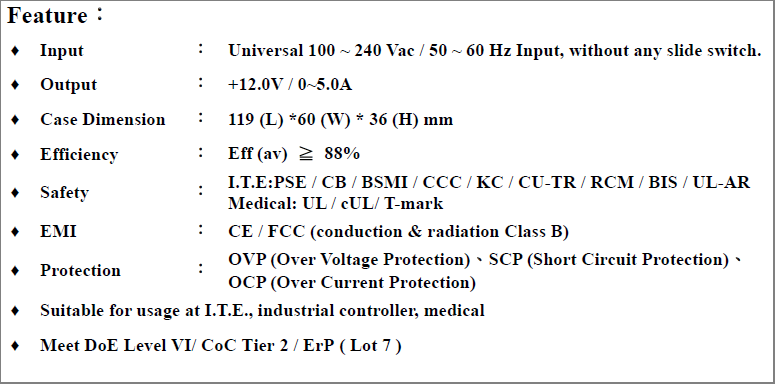

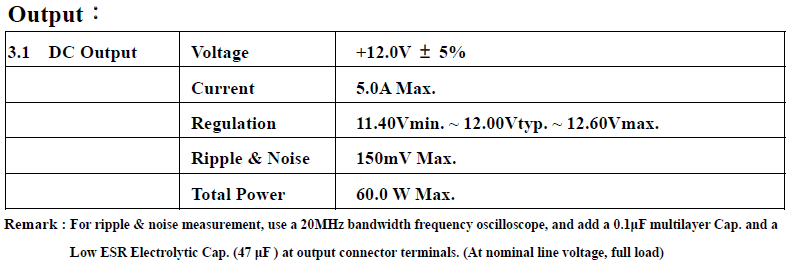

仕様

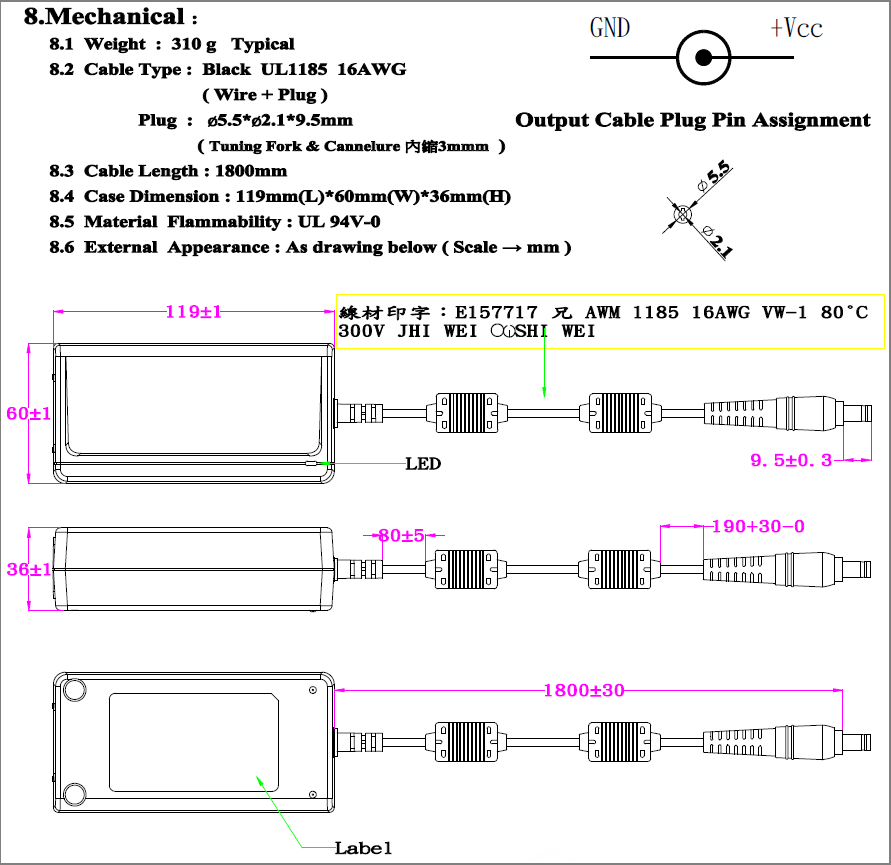

図面

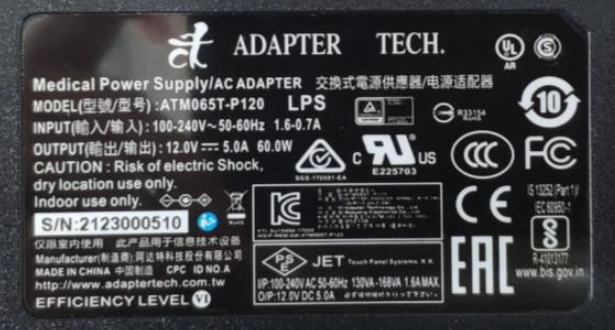

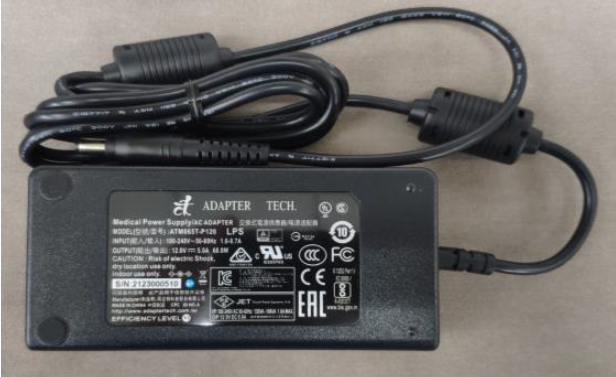

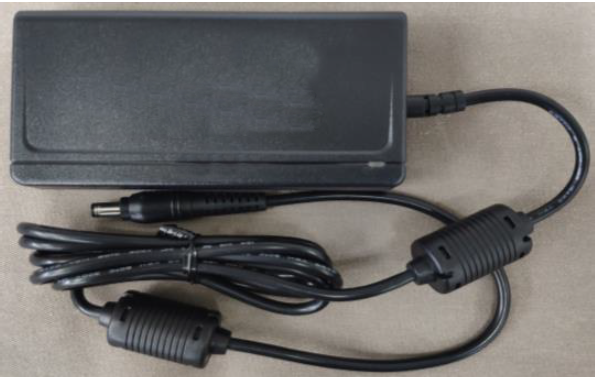

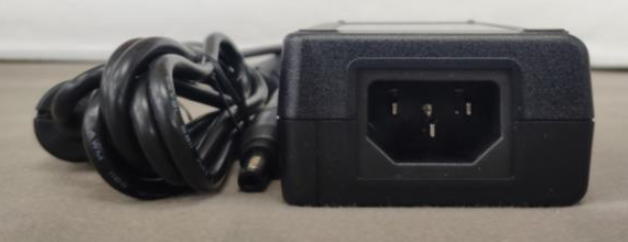

写真
