Waar kan ik de dimensionale tekening en de vermogensspecificaties van P/N: E050243 Power Supply Kit vinden?

Dit artikel biedt meer informatie over P/N: E050243 Voedingskit Dimensietekening en Vermogensspecificaties

E050243 Voedingskit Dimensietekening en Vermogensspecificaties hieronder weergegeven. Deze kit bevat voedingsadapter P/N: E903320

Vermogensspecificaties

  • Uitgang: 48W (volledige belasting)
  • Actieve Ingangsvermogen: 55.39W @ 230Vac
  • Totaal Ingangsstroom: 0.55894 Arms @ 230Vac
  • 50Hz Stroom: 0.24212 Arms @ 230Vac

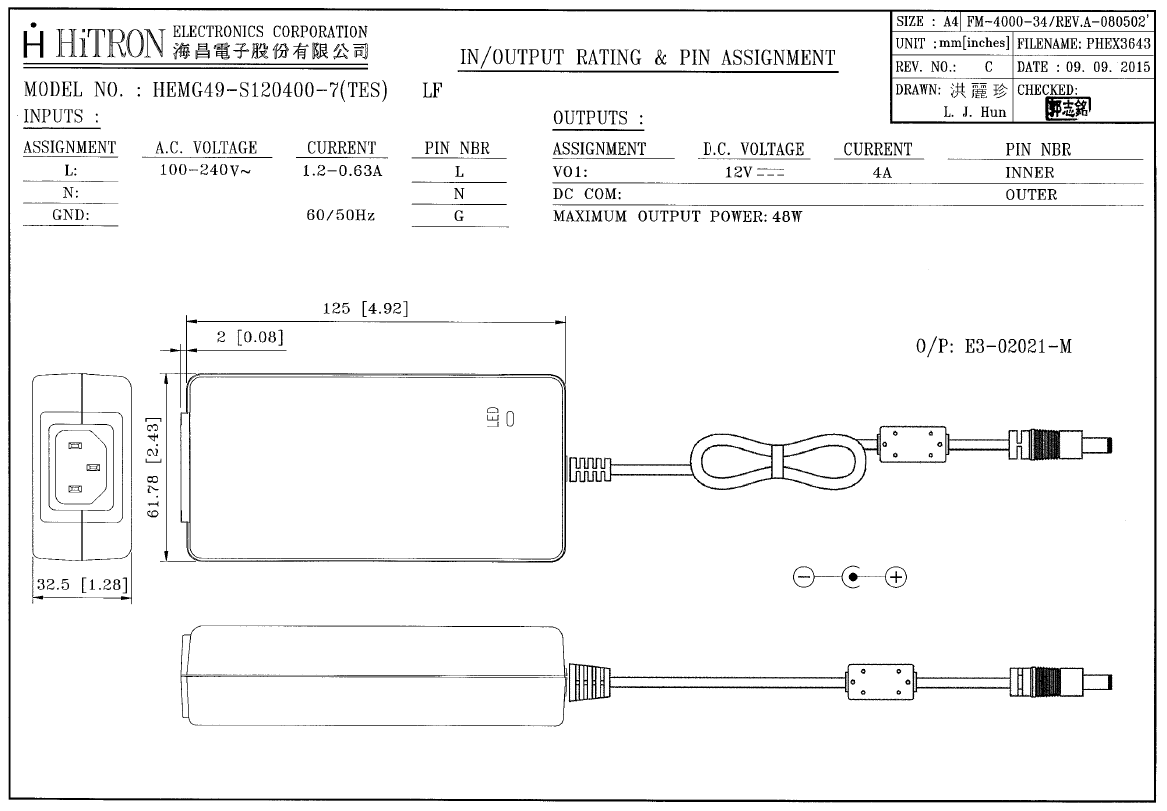

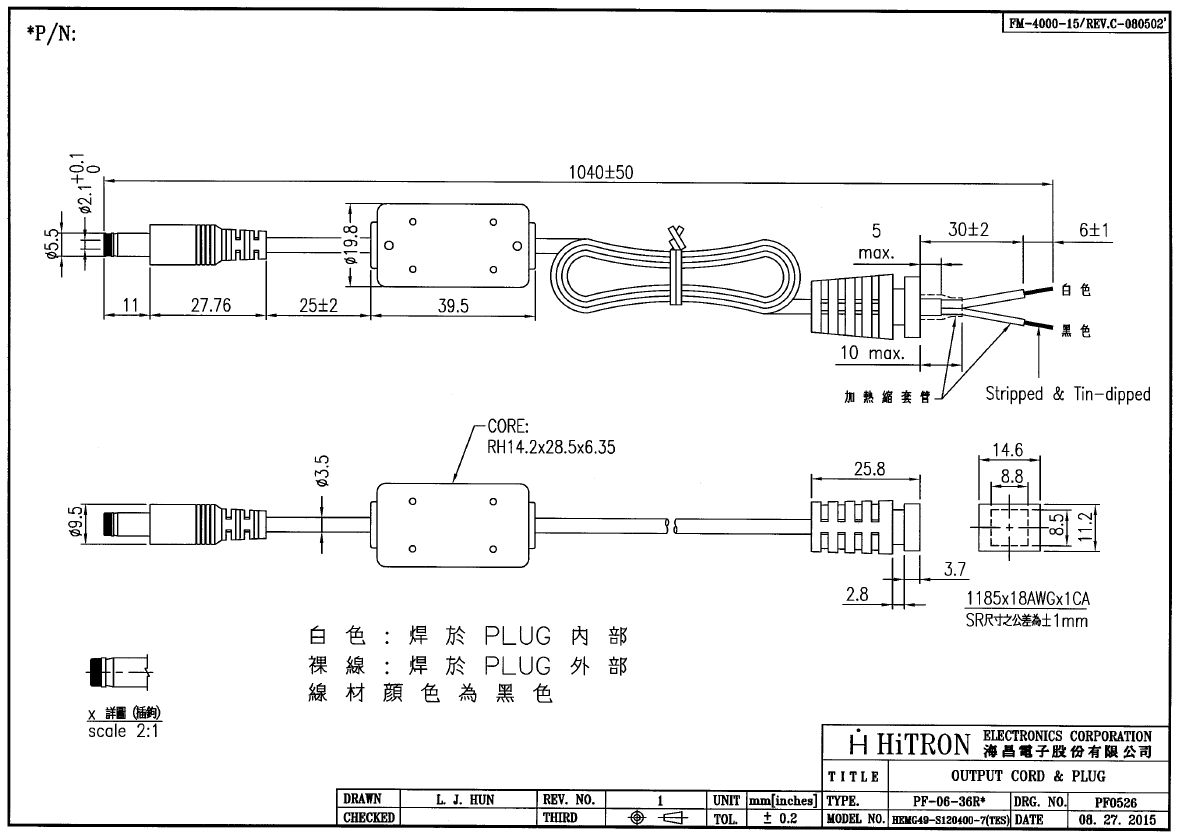

Tekeningen
