Waar kan ik de dimensionale tekening van de E194757 muurbeugel voedingsadapter vinden?

Dit artikel biedt de dimensionale tekening voor de E194757 Wandmontage Voedingsadapter

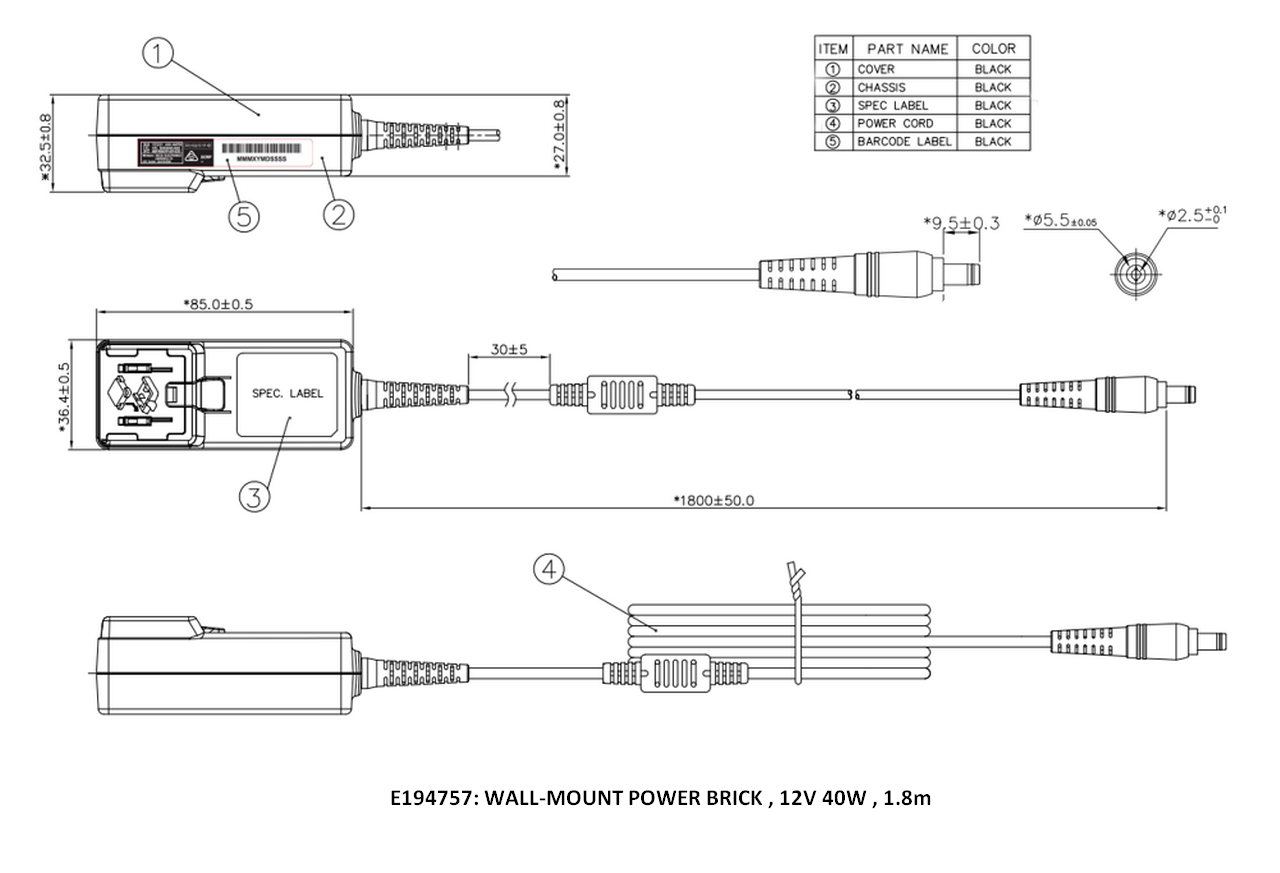

Zie hieronder voor de tekening van Elo P/N:E194757: WANDMONTAGE VOEDINGSADAPTER, 12V 40W, 1.8m
