Waar kan ik informatie vinden over E181106, netadapter voor 1502LM medische monitor?

Dit artikel biedt meer informatie over Elo P/N: E181106, Voedingsadapter voor de 1502LM

Hieronder vindt u informatie voor Elo P/N: E181106, 60W Voedingsadapter voor ET1502LM Medische Monitor.

Onderdeelnummer & Beschrijving

  • E181106: Elo-Pwr-Adapt-1502LM-60W
  • Elo Power Brick Kit - 60W Adapter Alleen, 02LM-Serie Medische Monitor

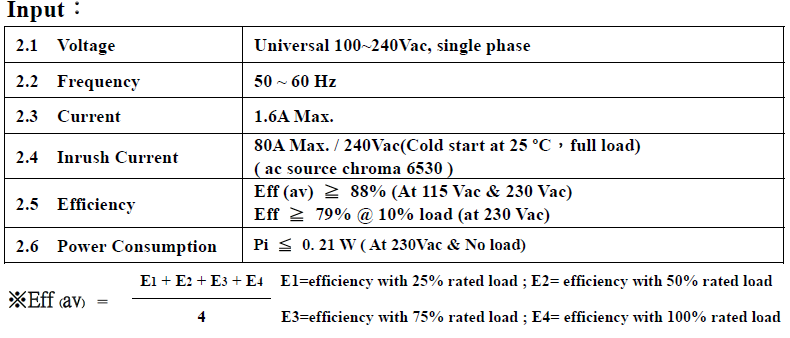

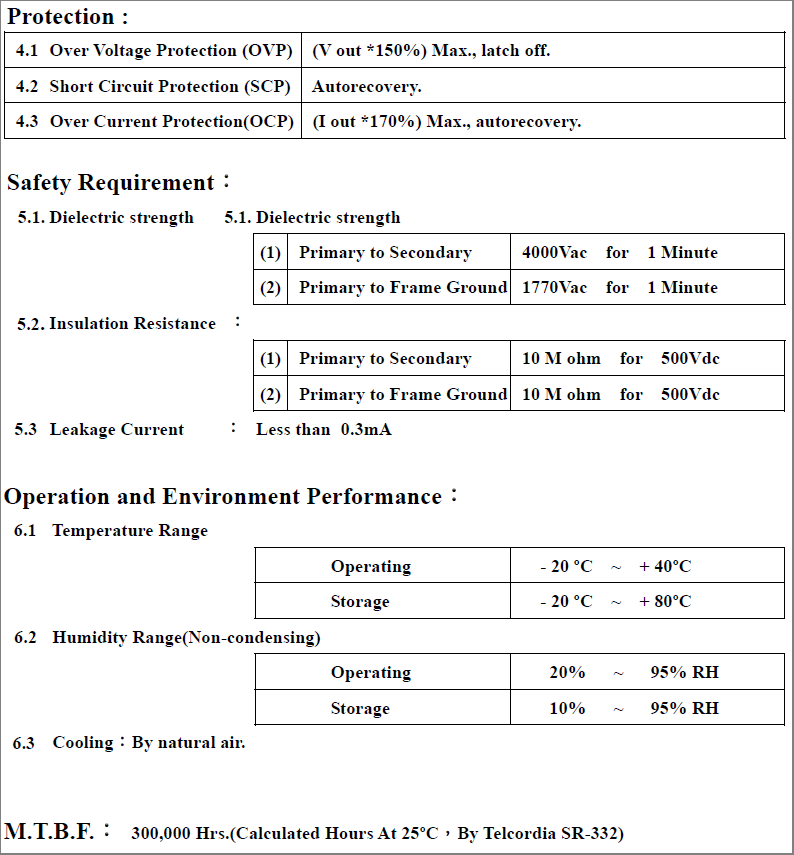

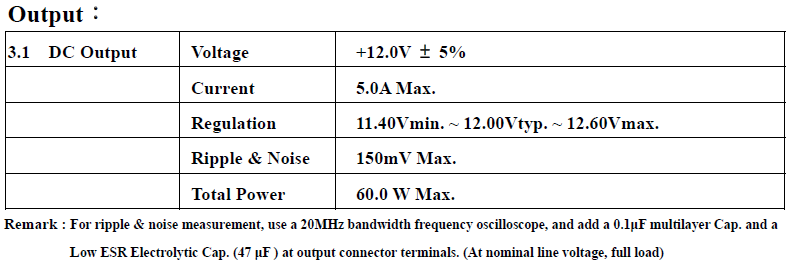

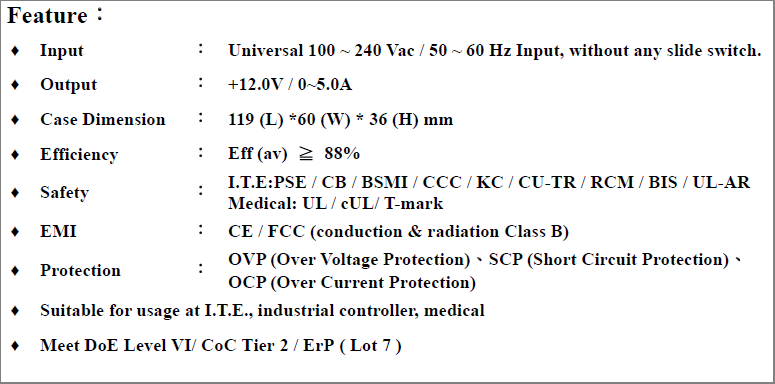

Specificaties

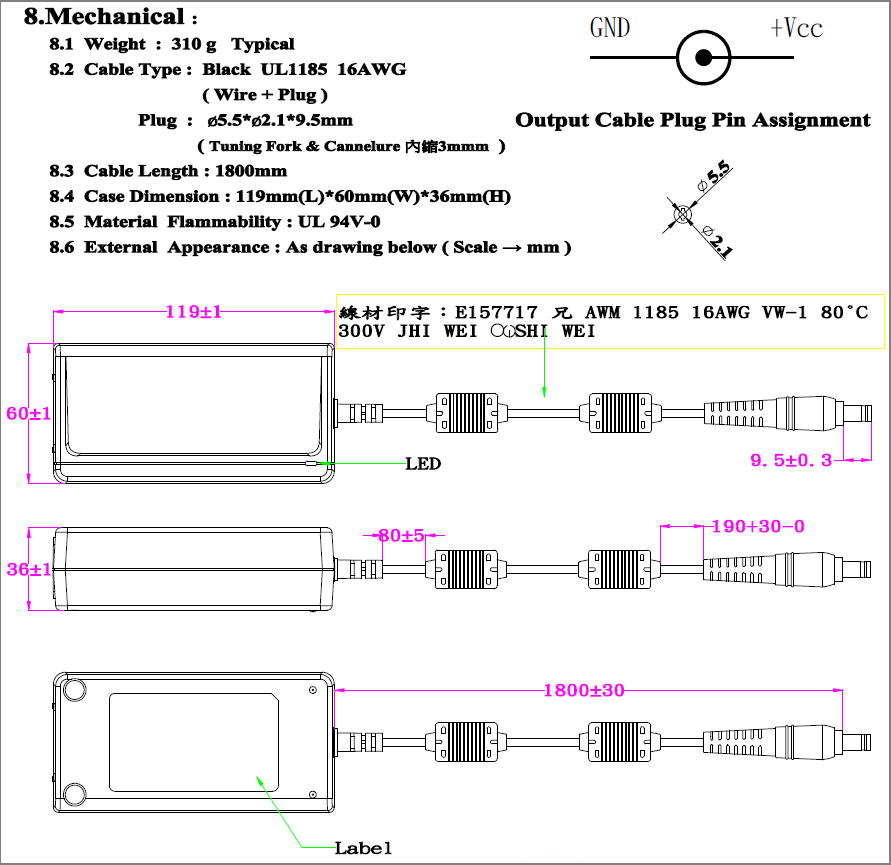

Tekening

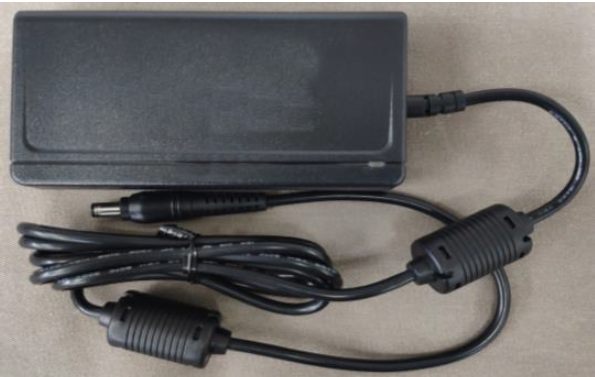

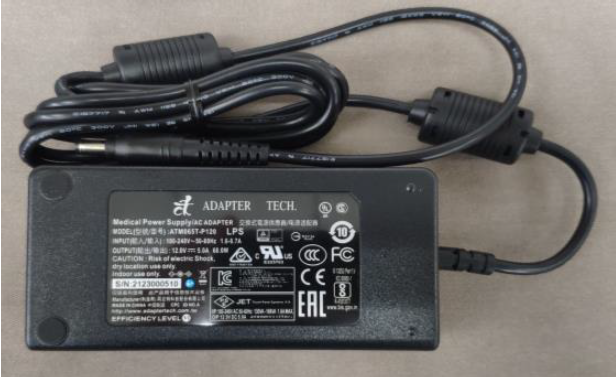

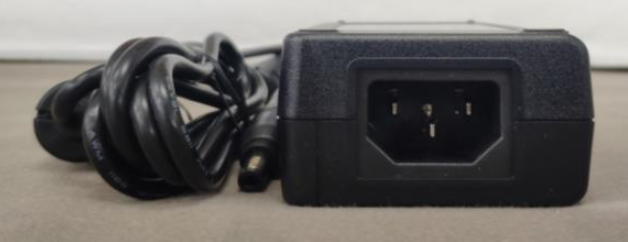

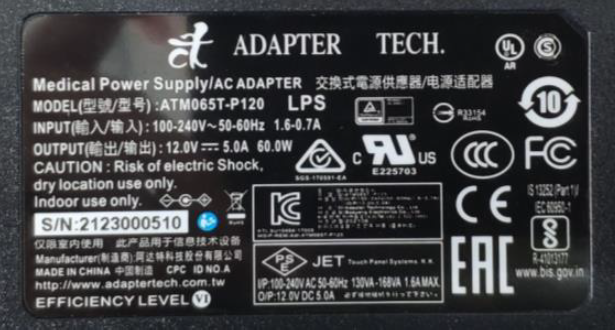

Foto's
