Welkom bij Elo Support

Drivers, productinfo, technische antwoorden en meer.

Waar kan ik informatie vinden over de voedingsadapter voor de Elo 1509L-8 monitor?

Dit artikel biedt informatie over de voedingadapter die wordt gebruikt op de legacy Elo ET1509L-8UWA-0-G touchscreen monitor.

Technische Informatie:

  • Voedingadapter Onderdelenummer: E318531
  • Onderdelen Beschrijving: ELO-PWR-BRICK, 18Watt, Muurbevestigde voedingsbrick (inclusief muurpluggen voor US/JP/TW, Brazilië, EU, VK, KR, ARG, IND en CH ingevoegde pluggen)
  • Compatibiliteit: ET1509L-8UWA-0-G, P/N: E534869 (obsoleet)

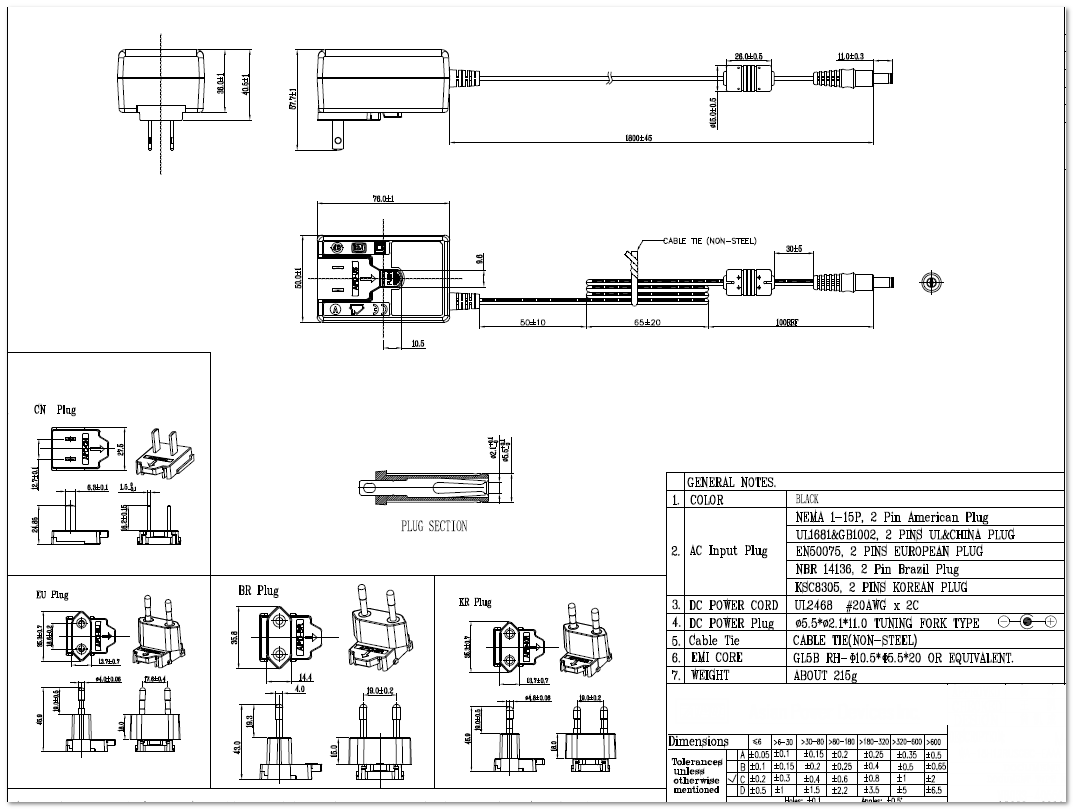

Tekeningen:


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
