Dit artikel biedt informatie over Elo P/N: E949374: AiO Power Brick, 19V/180W, DELTA.
Voedingsadapter voor E809509, Uitbreidingsmodule voor Android
Specificaties:
- AC Ingangspecificaties
- Ingangsnominale spanning: 115V/230V
- Ingangsspanning bereik: 90Vac tot 264Vac, continu
- Ingangsfrequentiebereik: 47Hz tot 63Hz, continu
- Ingangsspanning harmonische vervorming: <><></></> 8%
- Ingangsstroom: 90Vac / volle belasting: <><></></>2.34A, 180Vac/volle belasting: <><></></>1.25A
- Inschakelstroom: <><></></>140A Zekering zal niet openen en componenten zullen niet beschadigd raken
- Efficiëntie: 115/230Vac Gemiddelde efficiëntie bij belastingen van 25-50-75 en 100% belasting, 88%
- DC Uitgangspecificaties
- Uitgangsnominale spanning: Gemeten aan het einde van de DC-kabel, 19.5V
- Uitgangsstroom: In constante spanningsmodus, 0A tot 9.23A
- Uitgangsspanningsbereik: 00~9.23A uitgang aan het einde van de DC-kabel, 19.5 +/- 5%

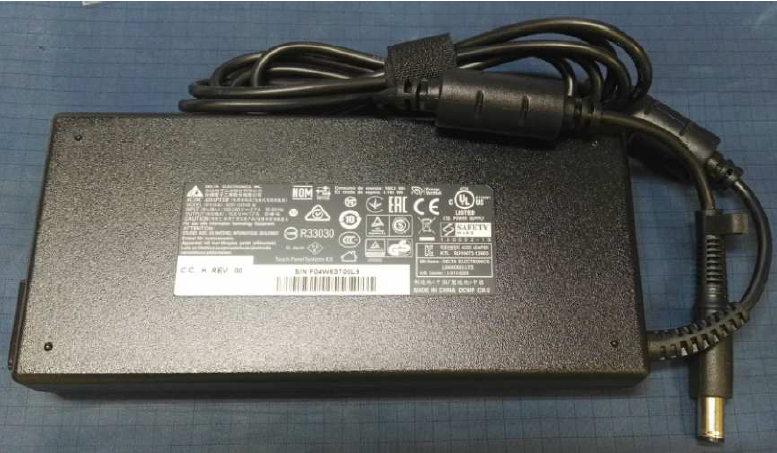

Foto:

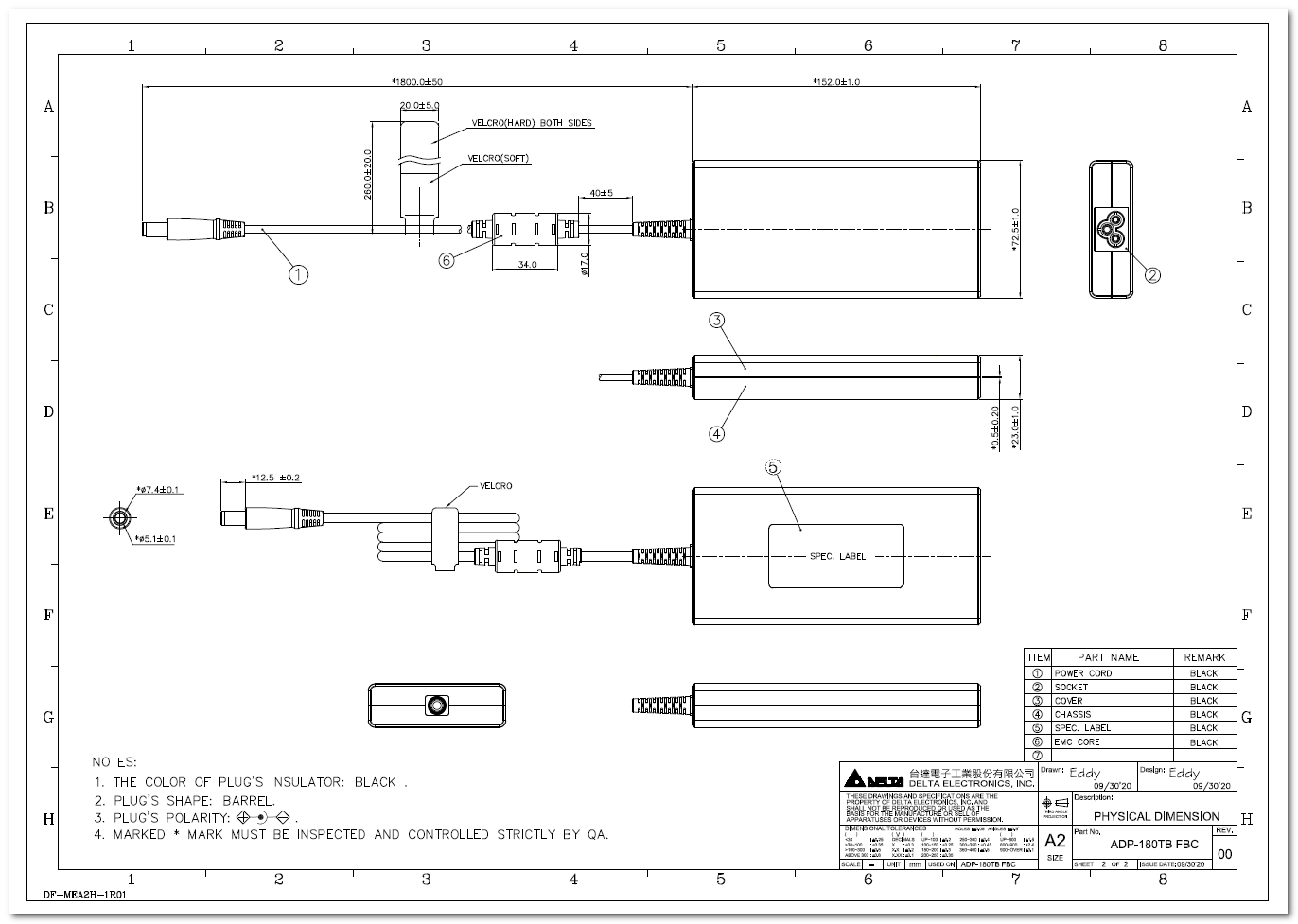

Tekening
