Artykuł ten zawiera protokół szeregowy oraz pinout dla gniazda TRS RS232 dla monitora Elo 5553L

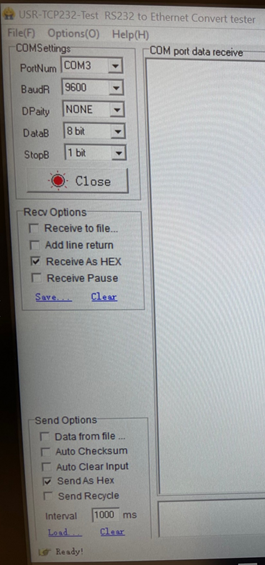

Protokół szeregowy RS232 używany w monitorach Elo 5553L/6553L IDS jest podany poniżej.
- BUAD Rate = 9600
- Parity = BRAK
- Data Bits = 8
- Stop Bits = 1

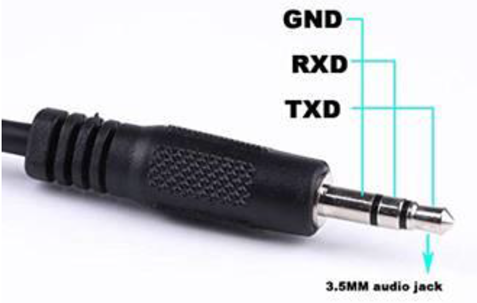

Pinout oraz schemat gniazda TRS 3,5 mm для Serial RS232 przedstawiono poniżej.
