Witamy w Dziale Wsparcia Elo

Sterowniki, informacje o produktach, odpowiedzi techniczne i nie tylko.

Gdzie mogę znaleźć rysunek zasilacza P/N: E323104 oraz specyfikacje zasilania?

Ten artykuł zawiera więcej informacji na temat P/N: E323104 Rysunek Zasilacza i Specyfikacje Zasilania

Rysunek Zasilacza E323104 i Specyfikacje Zasilania są przedstawione poniżej.

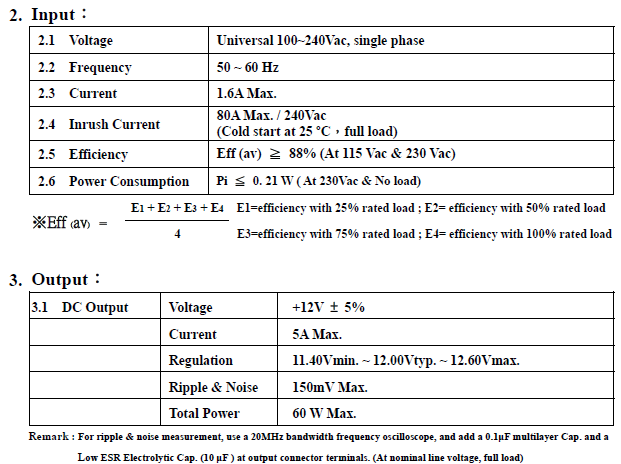

Specyfikacje Zasilania

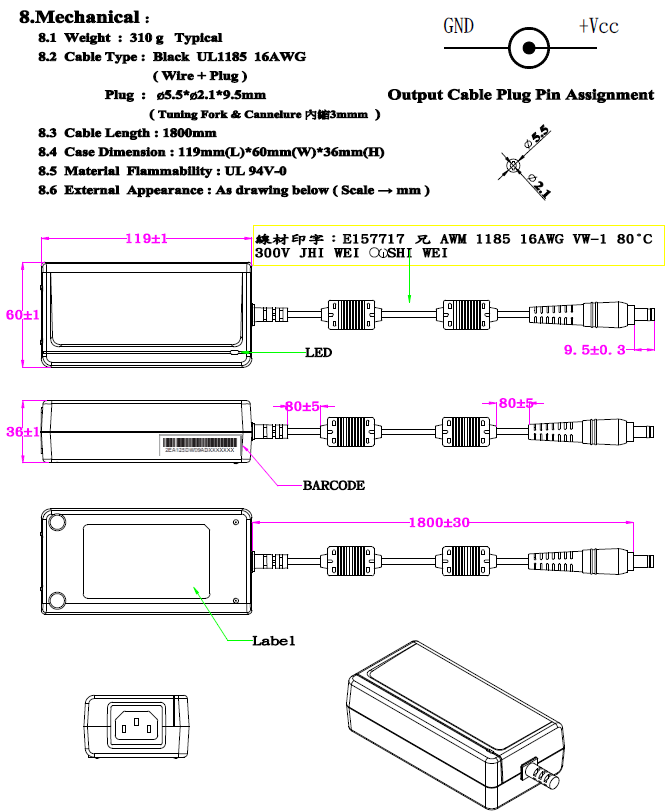

Rysunki


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
