Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Adaptadores WiFi para Sistemas POS E-Series 2 - Driver e Documentação de Firmware

Recomendações de Adaptadores WiFi para Sistemas POS E-Series 2

Os Sistemas POS E-Series 2 da Elo — agora parte da Zebra Technologies — vêm equipados com portas Ethernet físicas padrão, mas não possuem um cartão WiFi interno integrado.

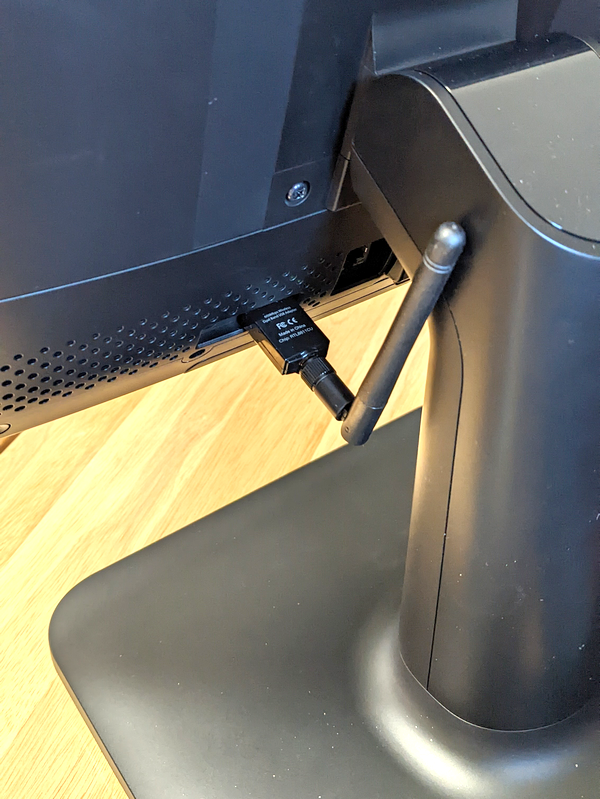

Nota: Se você precisar de conectividade sem fio, pode adicionar um adaptador USB WiFi compatível. Abaixo estão os detalhes de um adaptador USB WiFi sugerido que foi testado e verificado para funcionar com os Sistemas POS E-Series 2.

Adaptador USB WiFi Sugerido

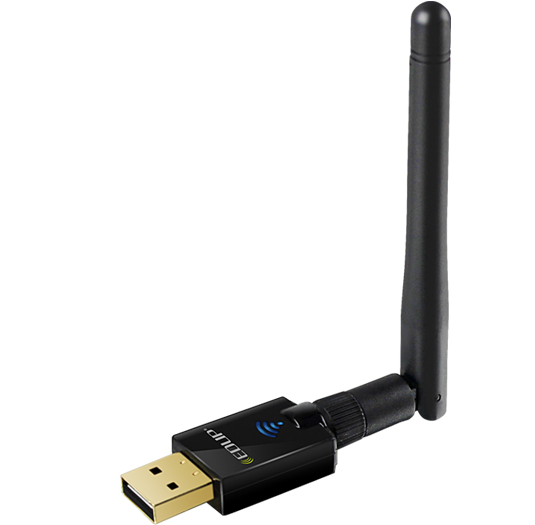

  • Adaptador USB WiFi EDUP AC600M: Dongle Wi-Fi Dual Band (2,4G / 5,8GHz) equipado com antena externa. Confira os detalhes das especificações do produto do fabricante aqui.
  • Chipset Testado: O chipset Realtek RTL8811CU foi testado e validado com sucesso no E-Series 2 rodando Windows 10 IoT Ent2019 LTSC Entry. Confira as especificações técnicas do chipset aqui.
EDUP AC600M USB WiFi Adapter packaging

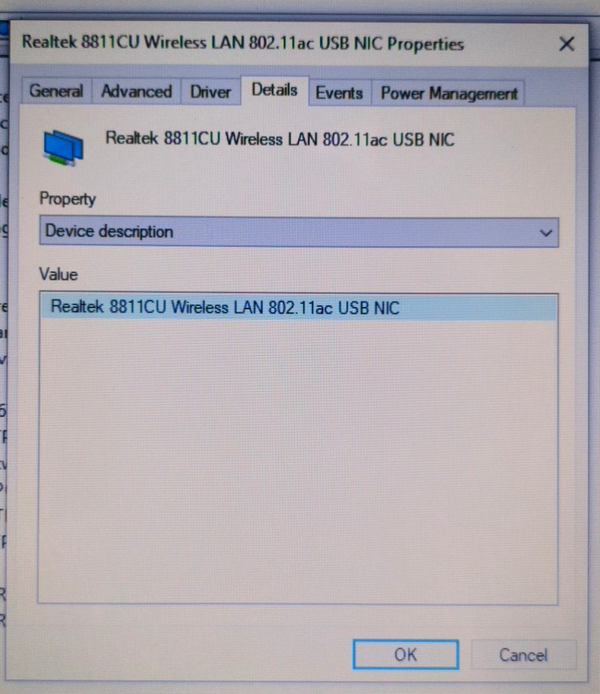

Device Manager showing Realtek RTL8811CU Wireless LAN Network Adapter

Network connections showing active WiFi network
