Где я могу найти чертеж блока питания P/N: E323104 и его технические характеристики?

В этой статье представлена дополнительная информация о P/N: E323104 Схема источника питания и Спецификации питания

Схема источника питания E323104 и Спецификации питания указаны ниже.

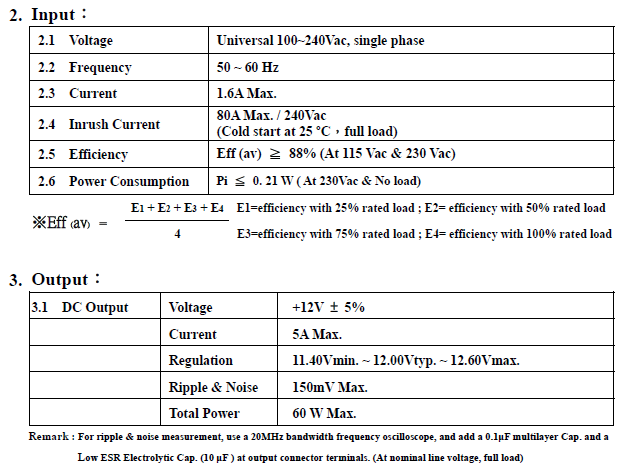

Спецификации питания

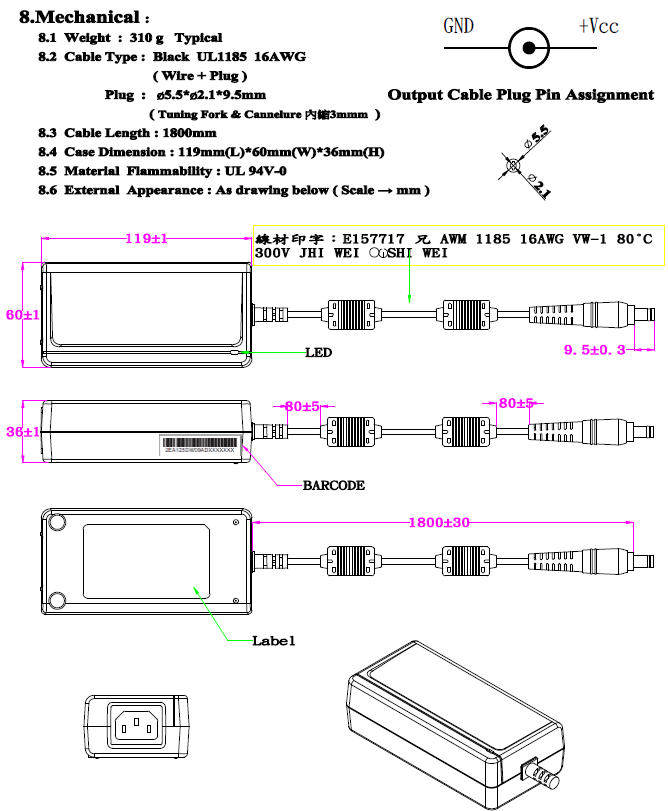

Чертежи
