Где я могу найти информацию о E181106, блоке питания для медицинского монитора 1502LM?

В этой статье представлена дополнительная информация о Elo P/N: E181106, блоке питания для 1502LM

Ниже приведена информация для Elo P/N: E181106, 60 Вт блока питания для медицинского монитора ET1502LM.

Номер детали & Описание

  • E181106: Elo-Pwr-Adapt-1502LM-60W
  • Набор блока питания Elo - только адаптер 60 Вт, медицинский монитор серии 02LM

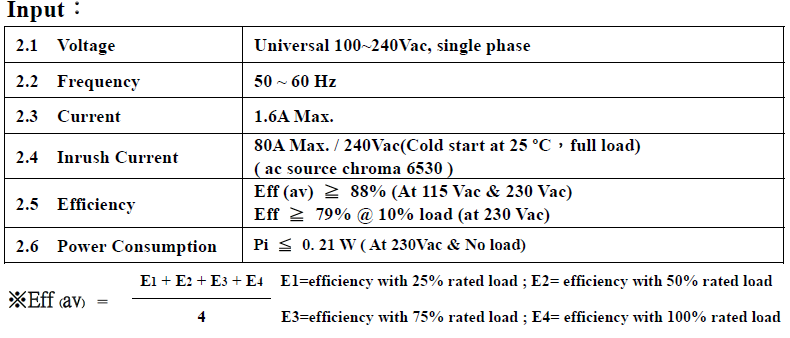

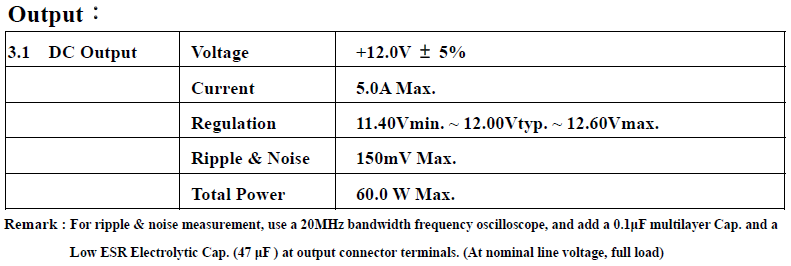

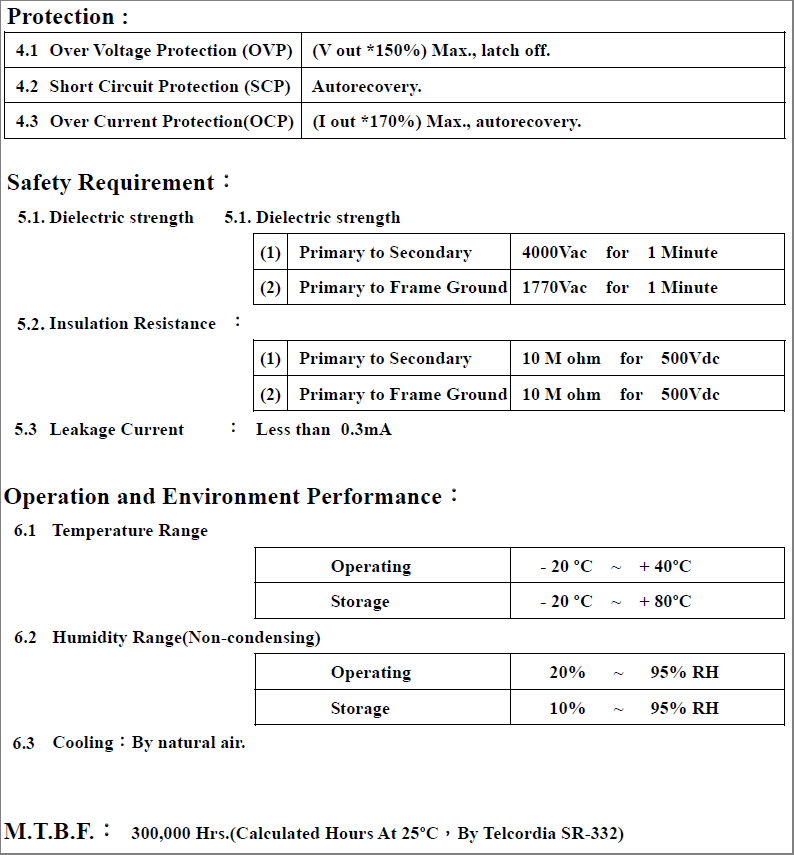

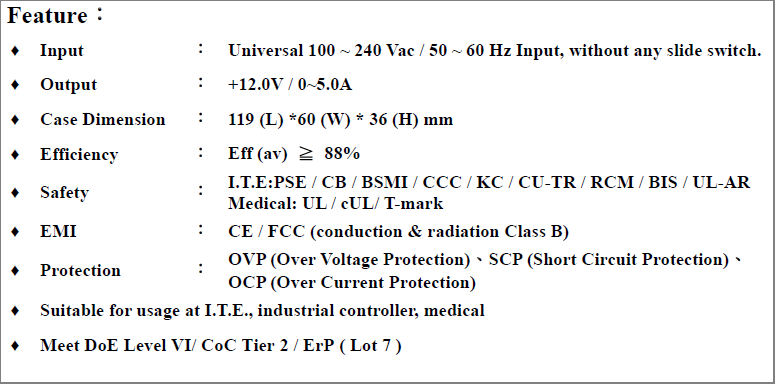

Спецификации

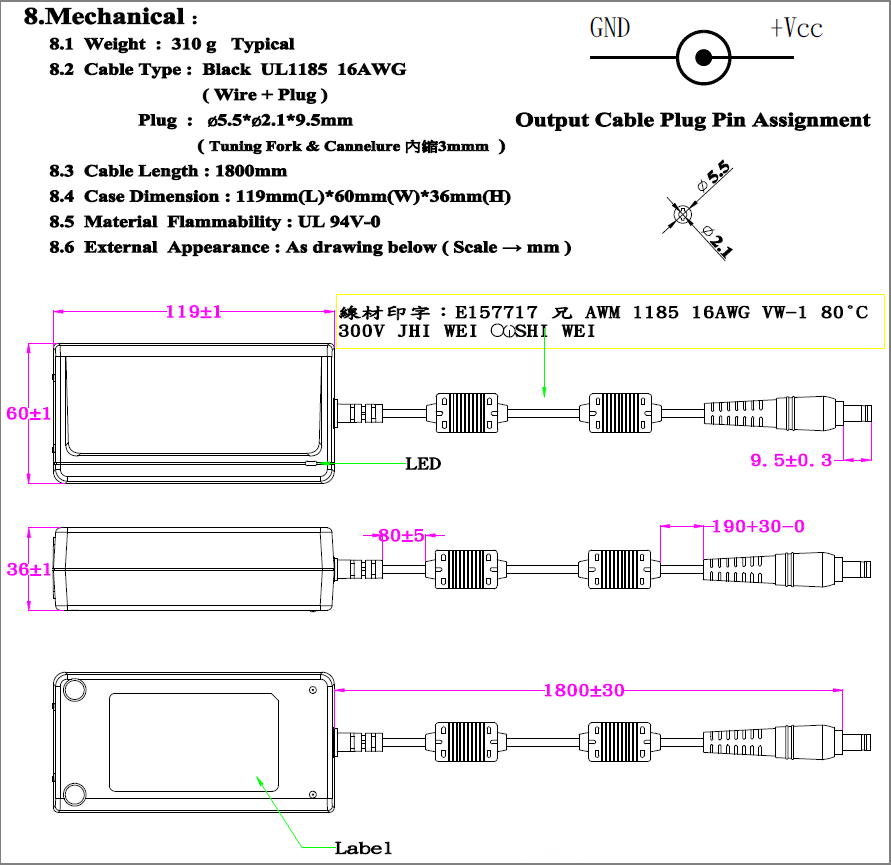

Чертеж

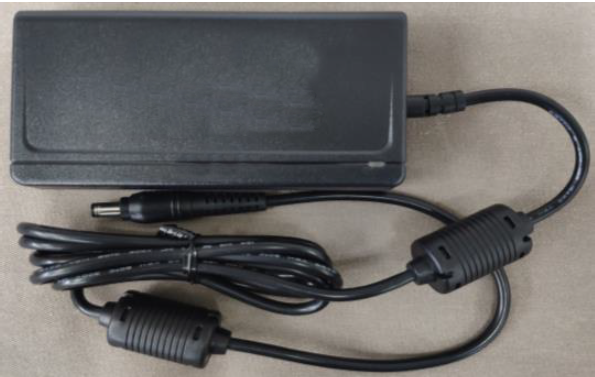

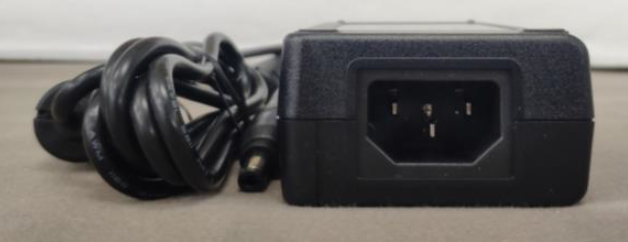

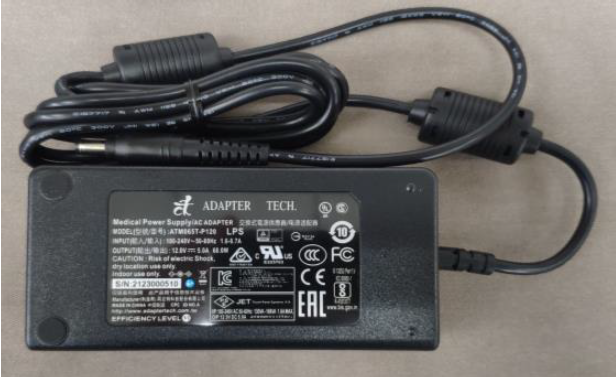

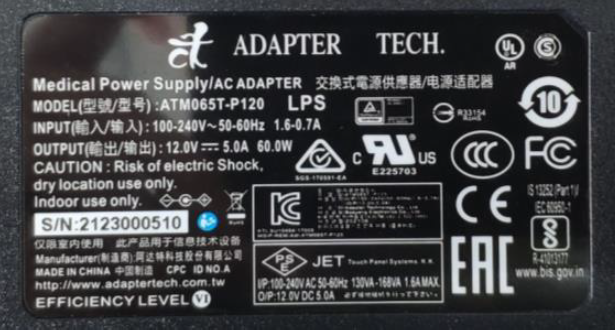

Фотографии
