Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

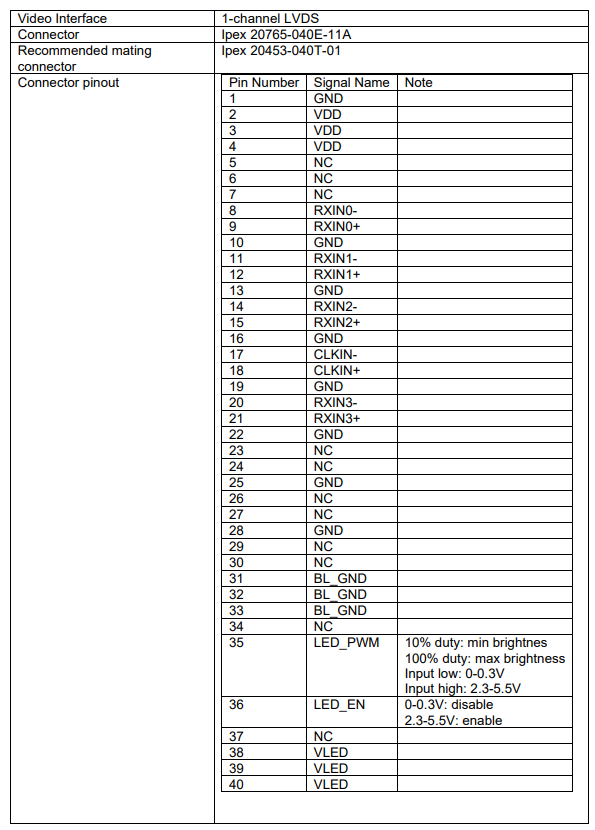

Elo 10 inç Ekran Modülü üzerindeki LVDS konektörü için pin çıkışını nerede bulabilirim?

Bu makale, Elo 10.1 İnç Ekran Modülü LVDS bağlantı noktası, P/N:E270763 üzerindeki pin çıkışını göstermektedir



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
