Dokunmatik Ekran Modüllerinde LVDS Bağlantısının Teknik Özelliklerini Nerede Bulabilirim

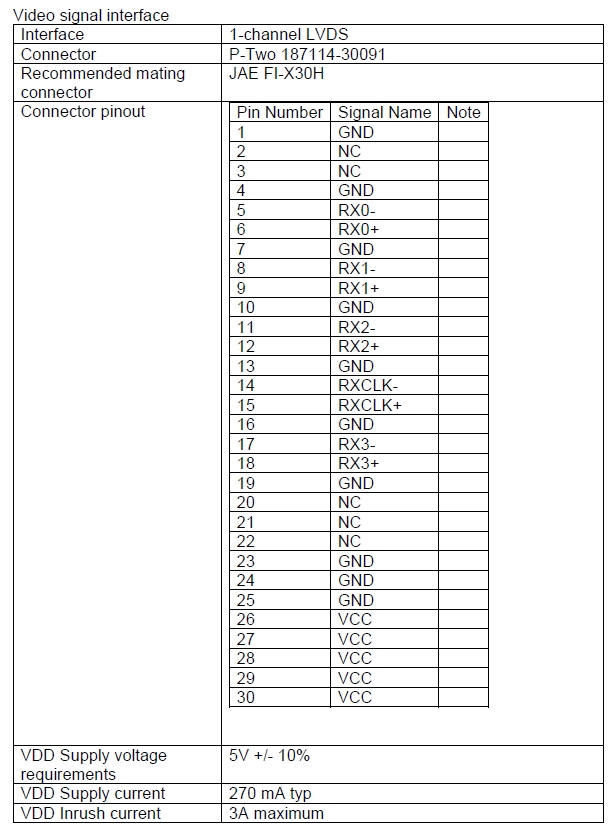

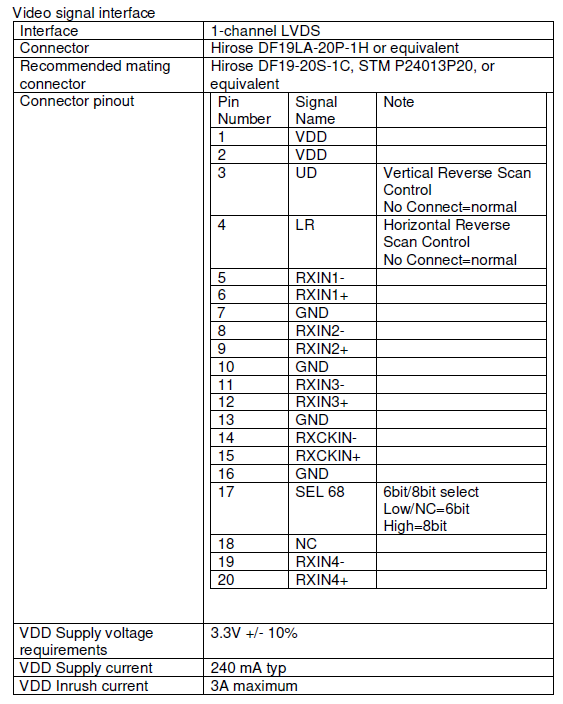

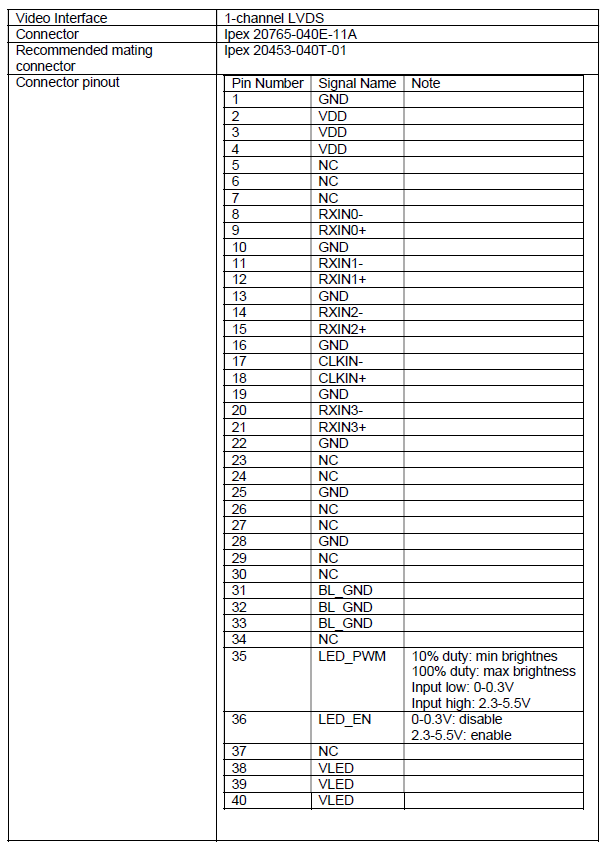

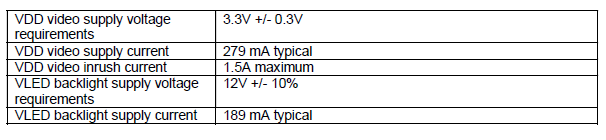

Aşağıda Elo Dokunmatik Ekran Modülleri için LVDS bağlantısının teknik özellikleri bulunmaktadır; 7 inç, 10 inç ve 15 inç

  • E271156: TDM-TP-FZW7.0-E270564-AB-R, Elo 7 inç TouchPro PCAP Dokunmatik Ekran Modülü


  • E270763: LCM-TP-FZW10.1-E270180-AB-R, Elo 10.1 inç TouchPro PCAP Dokunmatik Ekran Modülü


  • E270963: TDM-TP-FZW15.6-E270380-AB-R, Elo 15.6 inç TouchPro PCAP Dokunmatik Ekran Modülü



Lütfen herhangi bir bozuk bağlantıyı support@elotouch.com adresine e-posta göndererek bildirin ve bilgi makalesine bir bağlantı ekleyin.

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
