Elo 7 inç Ekran Modülü için LVDS konektörünün pin düzenini nerede bulabilirim?

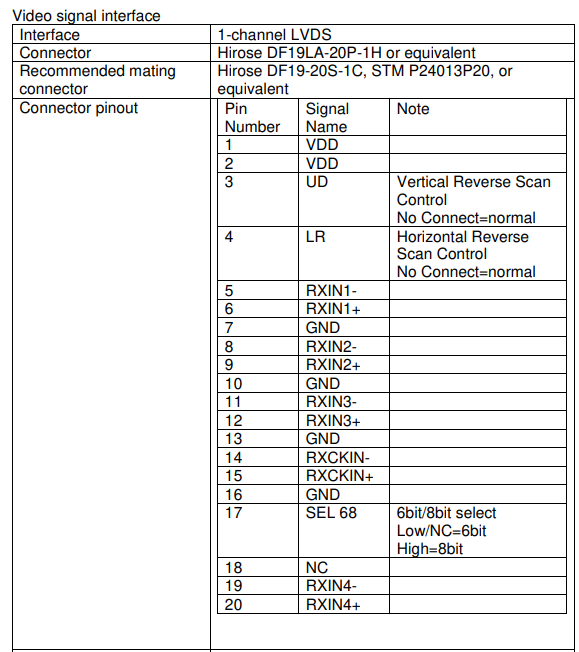

Bu makale, 7 İnç Elo Ekran Modülü üzerindeki LVDS konektörünün pin düzenini göstermektedir, P/N:E271156
