Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

Elo Ekran Modüllerindeki LVDS bağlantısının pin çıkışını nerede bulabilirim?

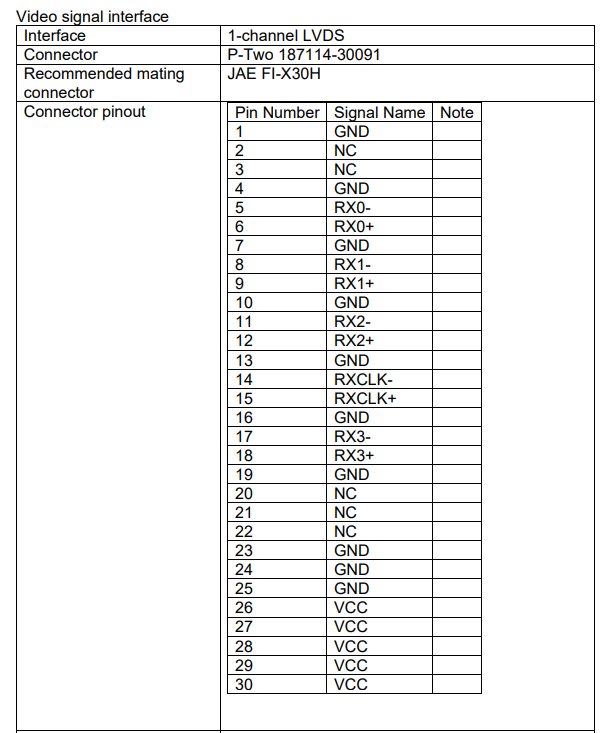

Bu makalede Elo 15.6 inç Ekran Modülündeki LVDS konektörünün pin düzeni gösterilmektedir, P/N:E270963



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
