E181106, 1502LM Tıbbi Monitör için Güç Adaptörü hakkında bilgiyi nerede bulabilirim?

Bu makale, Elo P/N: E181106, 1502LM için Güç Adaptörü hakkında daha fazla bilgi sağlar

Aşağıda, ET1502LM Tıbbi Monitör için Elo P/N: E181106, 60W Güç Adaptörü bilgileri bulunmaktadır.

Parça Numarası & Açıklama

  • E181106: Elo-Pwr-Adapt-1502LM-60W
  • Elo Power Brick Kiti - 60W Adaptör Sadece, 02LM-Serisi Tıbbi Monitör

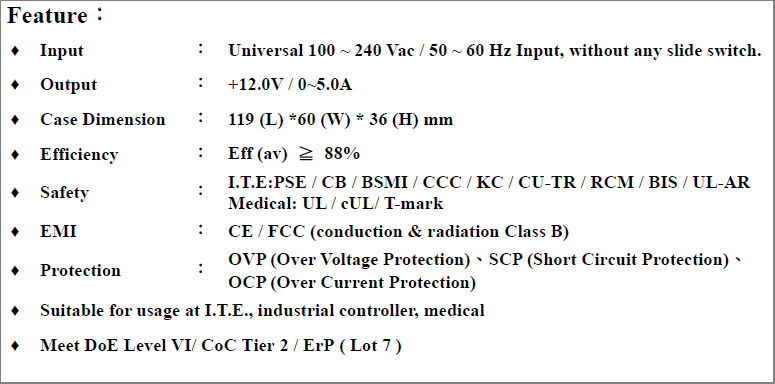

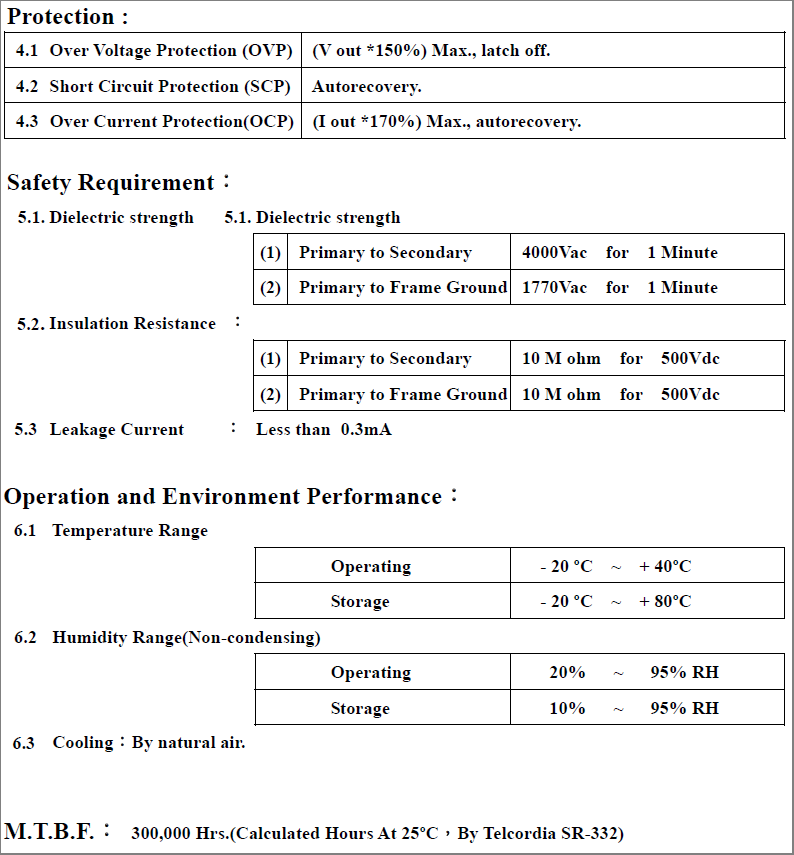

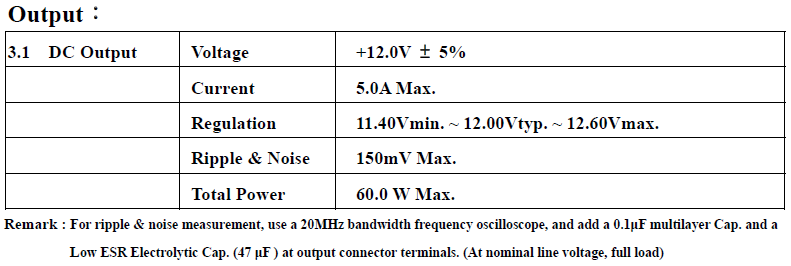

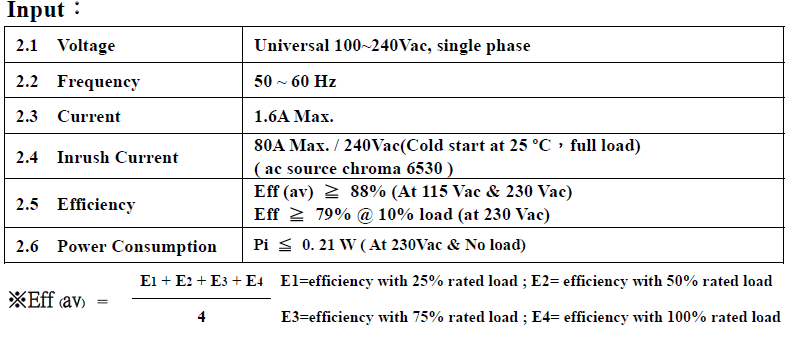

Özellikler

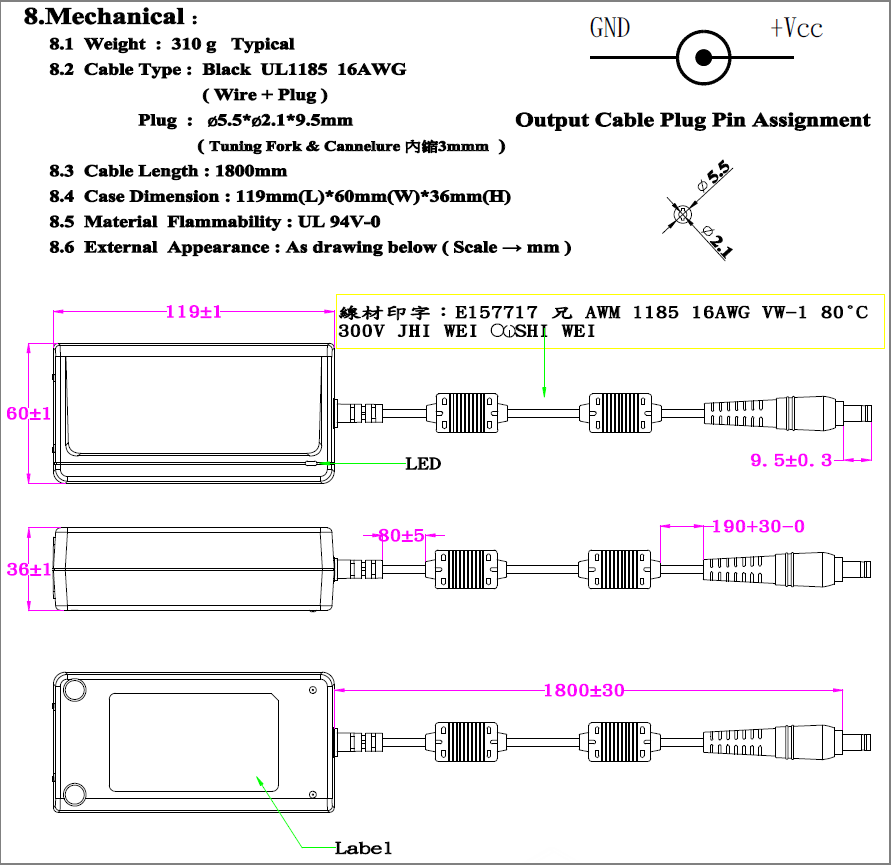

Çizim

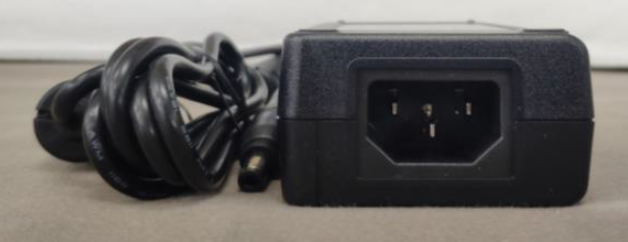

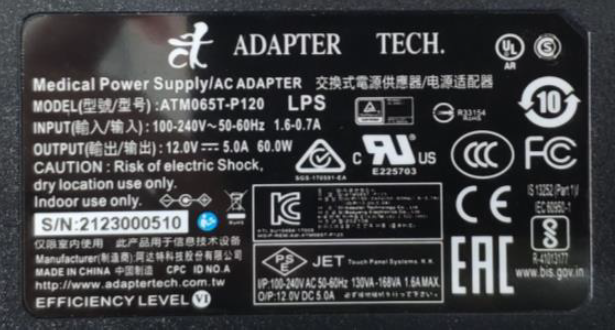

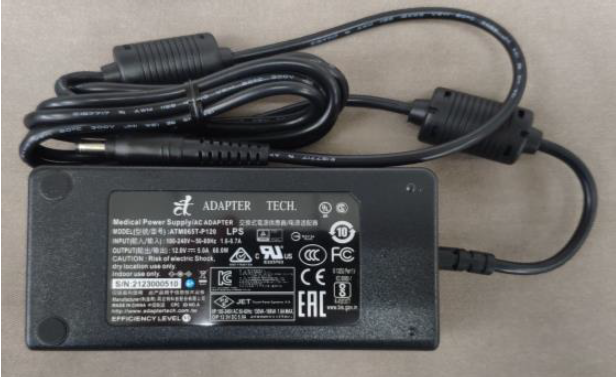

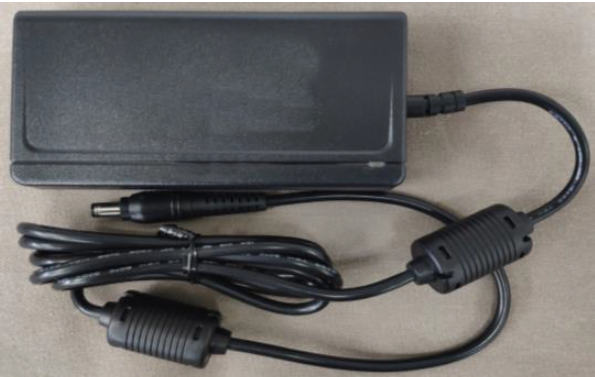

Fotoğraflar
