Wo finde ich den P/N: E050243 Stromversorgung Kit Maßzeichnung und Leistungsanforderungen?

Dieser Artikel enthält weitere Informationen zu P/N: E050243 Netzteil-Kit Maßzeichnung und Leistungsspezifikationen

Maßzeichnung und Leistungsspezifikationen des E050243 Netzteil-Kits wie unten gezeigt. Dieses Kit enthält Netzadapter P/N: E903320

Leistungsspezifikationen

  • Ausgang: 48W (Volllast)
  • Aktive Eingangsleistung: 55.39W @ 230Vac
  • Gesamt-Eingangsstrom: 0.55894 Arms @ 230Vac
  • 50Hz Strom: 0.24212 Arms @ 230Vac

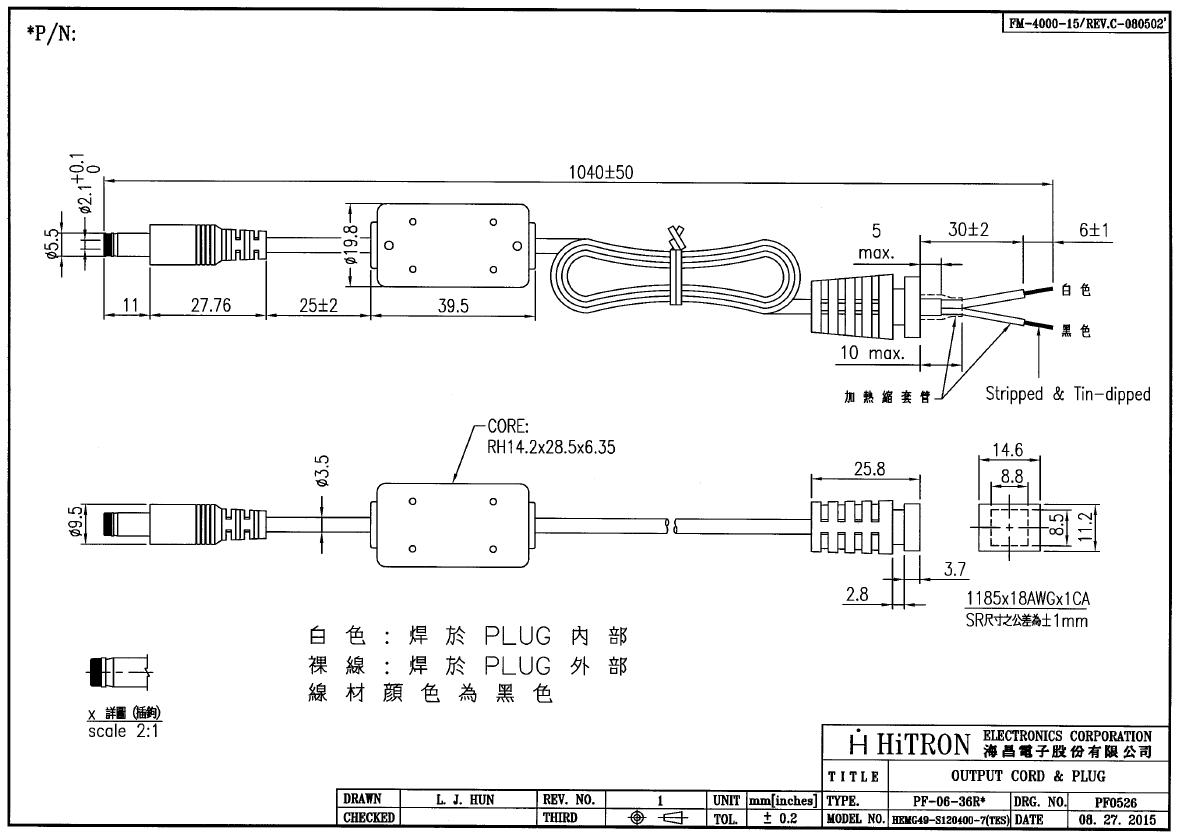

Zeichnungen
